Laumas TLB4 Ethernet TCP/IP Weight Transmitter

TLB4 Ethernet TCP/IP Weight Transmitter

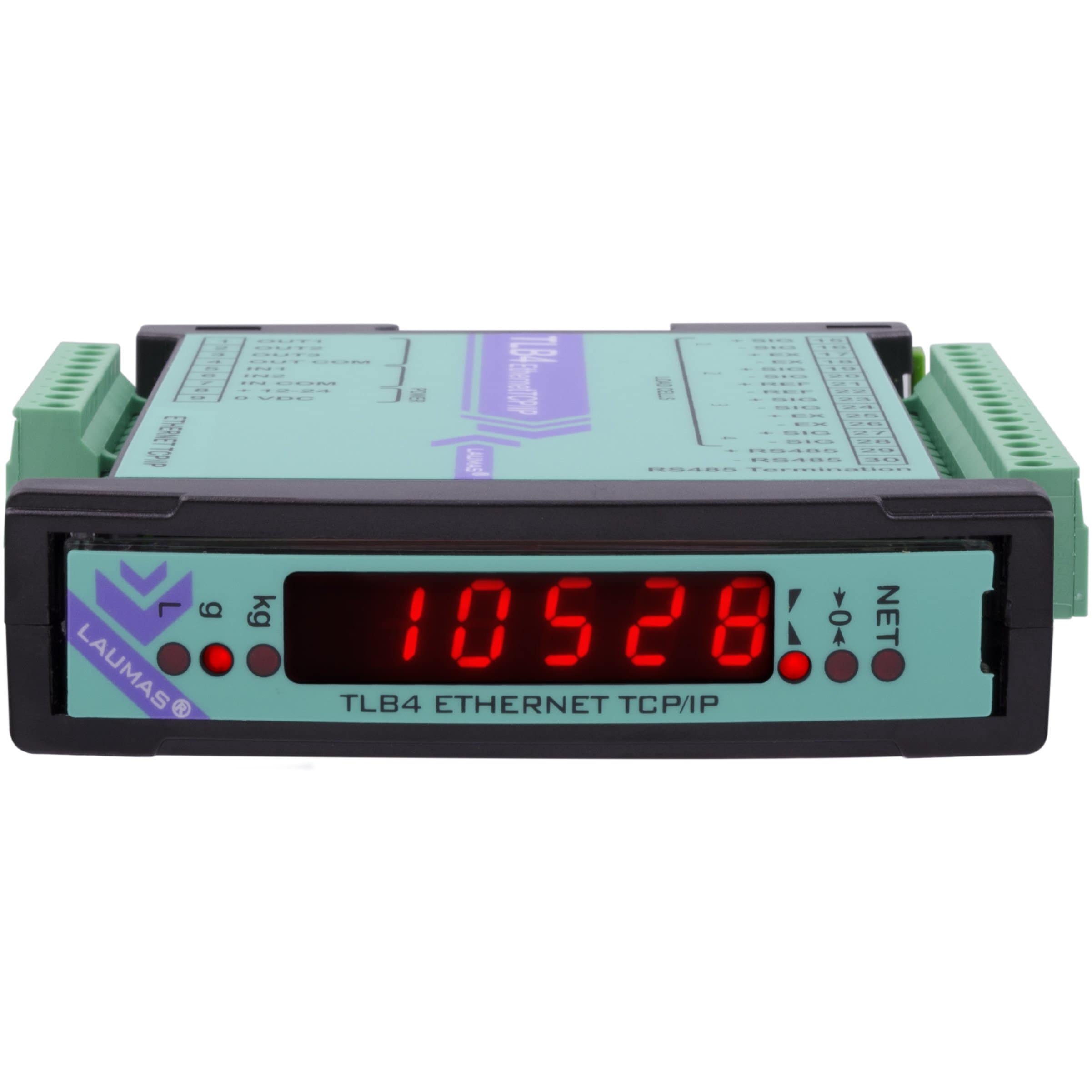

Laumas TLB4 Ethernet TCP/IP weight transmitter

With four separate load-cell inputs, the Laumas TLB4 Ethernet TCP/IP gives engineers more information than a single combined junction-box signal. Digital equalisation simplifies corner adjustment and individual channel readings help with fault finding.

Its main interface is Ethernet TCP/IP communication, allowing weighing information to be exchanged over a standard Ethernet infrastructure. The result is a useful option for OEM panels and plant upgrades where four-channel diagnostics matter.

Relay outputs, digital inputs and an RS485 service connection are included for local functions and commissioning. Confirm the load-cell arrangement and Ethernet TCP/IP network configuration when specifying the transmitter.

Model: TLB4ETHETCP

Quantity:

£410.00

View Technical Data Sheet (PDF)

Laumas TLB4 Ethernet TCP/IP Weight Transmitter

£410.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

Ethernet TCP/IP port

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

1 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 2, 5 to 24 VDC PNP

Relay Outputs

Qty 3, max 115 VAC/150 mA

A/D Converter

1 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

Networked weighing systems

Useful for connecting weighing equipment across an existing Ethernet installation.

Four-cell tanks and platforms

Helps engineers check load distribution across vessel and platform weighing systems.

Industry 4.0 Weighing Systems

Supports connected Industry 4.0 weighing systems with networked supervision and monitoring.

Remote Weighing Supervision

Allows engineers to remotely supervise weighing systems and monitor performance over a network.

Features

Ethernet TCP/IP connection

Links the transmitter to compatible equipment through a standard Ethernet infrastructure.

Individual channel diagnostics

Retains information from up to four load-cell inputs to simplify balancing and fault finding.

Remote Monitoring Capability

Supports remote supervision and management through Ethernet connectivity.

Industry 4.0 Connectivity

Supports connected weighing systems and remote access for Industry 4.0 applications.

FAQs

What does the Ethernet TCP/IP TLB4 add to a weighing system?

It combines four-channel monitoring and digital equalisation with a Ethernet TCP/IP connection to the control system.

Can Ethernet TCP/IP transmitters be monitored remotely?

Yes, Ethernet TCP/IP models support remote supervision and monitoring.

Where are Ethernet TCP/IP transmitters typically installed?

TCP/IP transmitters are commonly used in networked industrial weighing systems.

What makes TCP/IP weighing systems attractive?

TCP/IP connectivity enables remote access, supervision and Industry 4.0 integration.
