TLM8 Ethernet TCP/IP Weight Transmitter

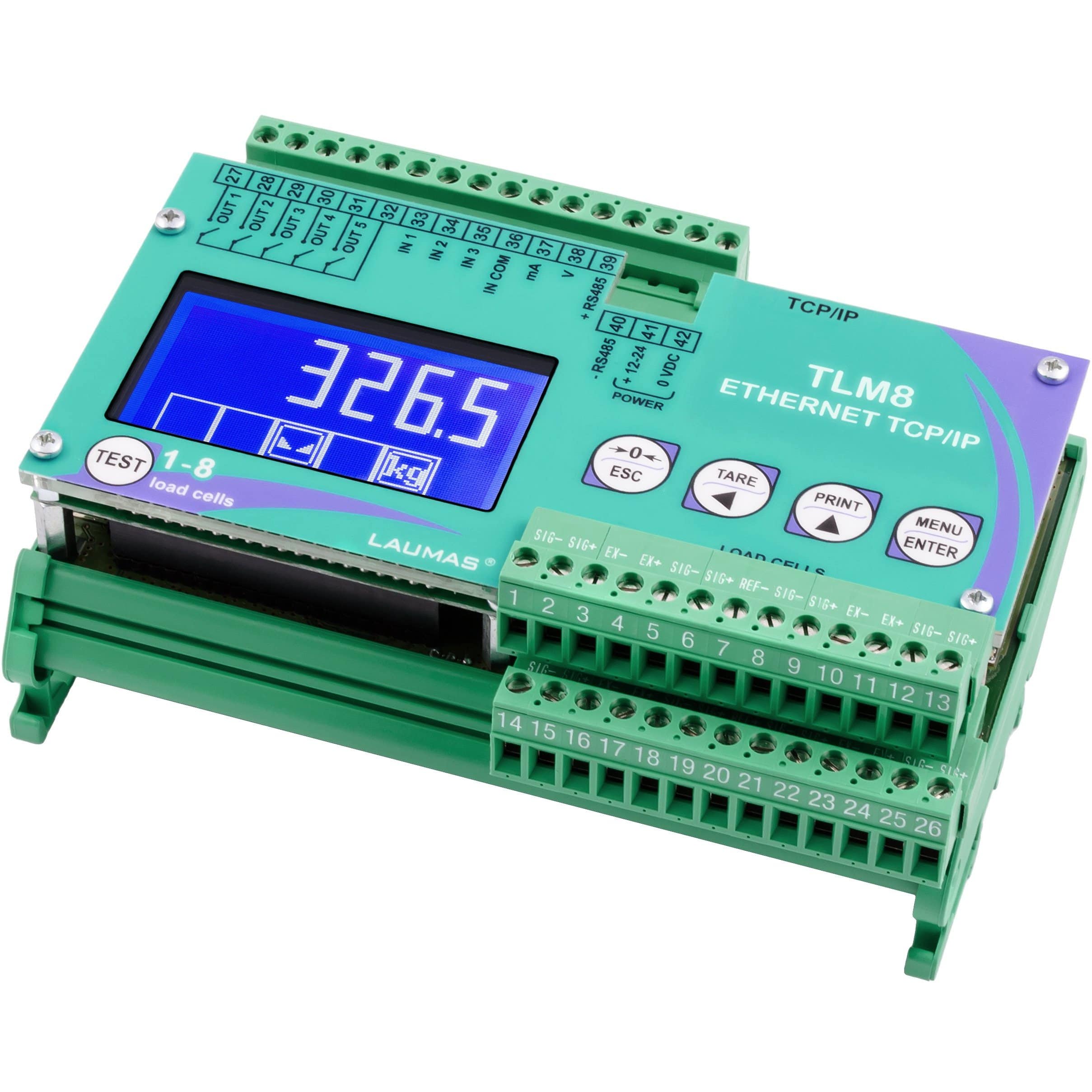

Laumas TLM8 Ethernet TCP/IP weight transmitter

The Laumas TLM8 Ethernet TCP/IP monitors eight separate weighing channels, giving the control system visibility of individual load-cell signals instead of only a combined total. This is particularly useful on large tanks, silos, hoppers and platforms.

The eight inputs accept up to sixteen 350 Ω load cells in total. For plant integration, this version is fitted with an Ethernet TCP/IP interface for standard Ethernet infrastructure.

An RS485 connection is available for setup and secondary communication. Match the channel layout, load-cell quantity and Ethernet TCP/IP interface to the proposed control system.

Model: TLM8ETHETCP

Quantity:

£543.00

View Technical Data Sheet (PDF)

Laumas TLM8 Ethernet TCP/IP Weight Transmitter

£543.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

Ethernet TCP/IP port

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

Up to 16 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 3, 5 to 24 VDC PNP

Relay Outputs

Qty 5, max 115 VAC/150 mA

A/D Converter

8 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2 uV/VSI

Learn more

Applications

Networked weighing systems

Useful for connecting weighing equipment across an existing Ethernet installation.

Large vessel weighing

For silos, tanks, hoppers and platforms that need several load-cell channels.

Industrial Weighing Automation

Supports advanced weighing automation with detailed load cell monitoring.

Weighbridge Monitoring

Suitable for weighbridges and large multi-load-cell structures requiring load distribution analysis.

Features

Ethernet TCP/IP connection

Links the transmitter to compatible equipment through a standard Ethernet infrastructure.

Eight-channel monitoring

Shows individual channel information for load distribution checks, setup and quicker sensor diagnosis.

Advanced Diagnostic Functions

Provides advanced diagnostics including load cell status and weighing system health monitoring.

Remote System Supervision

Supports remote supervision, commissioning and monitoring of complex weighing installations.

FAQs

Why specify the TLM8 with Ethernet TCP/IP?

It provides eight-channel load-cell monitoring while communicating with the automation system through Ethernet TCP/IP.

Can TCP/IP provide remote system access?

Yes, TCP/IP versions support remote access to weighing system data.

Where are TCP/IP TLM8 transmitters used?

TCP/IP TLM8 transmitters are used in connected weighing environments.

What makes TCP/IP supervision beneficial?

TCP/IP supervision allows engineers to monitor and manage systems remotely.
