TLM8 PROFIBUS DP Weight Transmitter

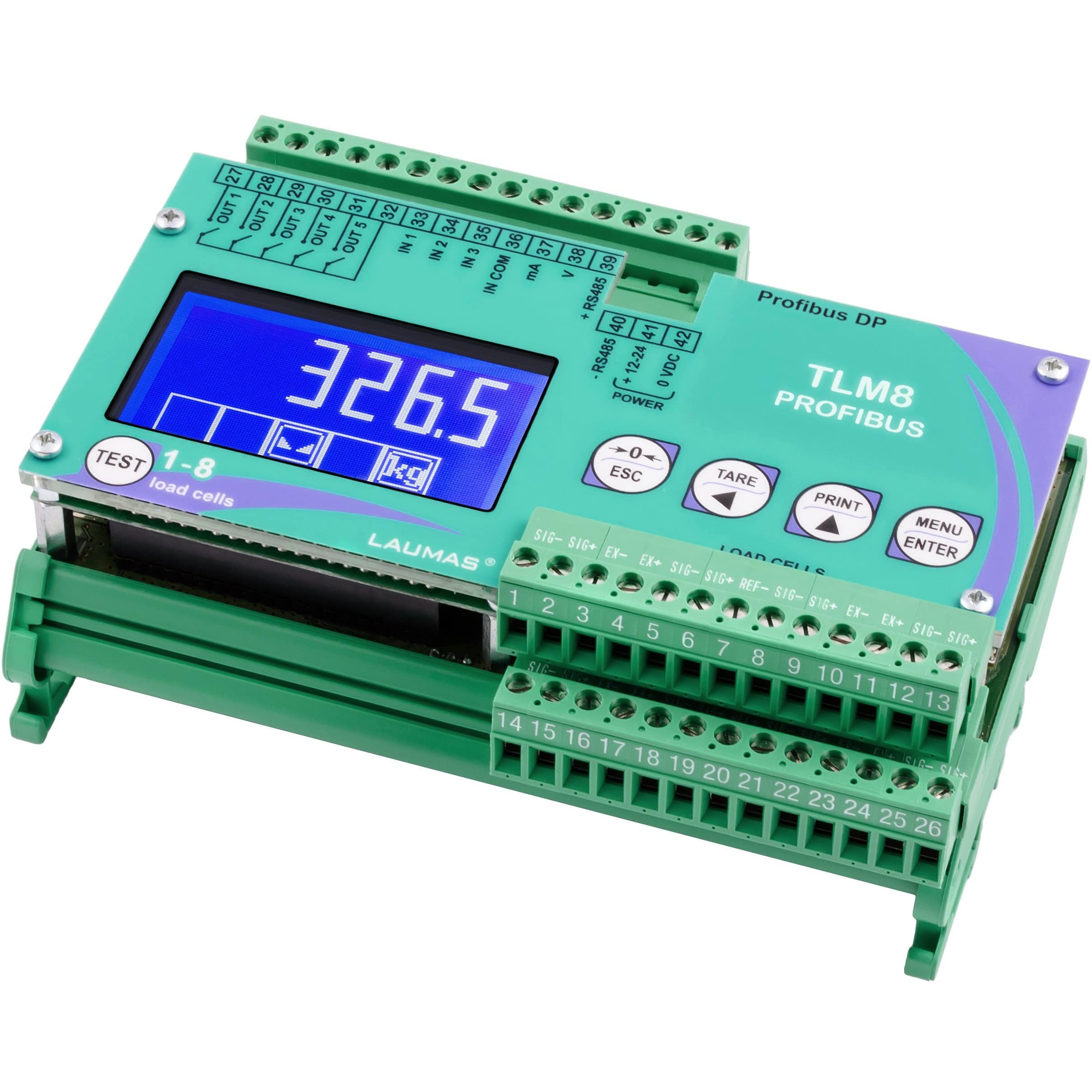

Laumas TLM8 PROFIBUS DP weight transmitter

The Laumas TLM8 PROFIBUS DP monitors eight separate weighing channels, giving the control system visibility of individual load-cell signals instead of only a combined total. This is particularly useful on large tanks, silos, hoppers and platforms.

The eight inputs accept up to sixteen 350 Ω load cells in total. For plant integration, this version is fitted with a PROFIBUS DP interface for established process and factory networks.

An RS485 connection is available for setup and secondary communication. Match the channel layout, load-cell quantity and PROFIBUS DP interface to the proposed control system.

Model: TLM8PROFIBUS

Quantity:

£569.00

View Technical Data Sheet (PDF)

Laumas TLM8 PROFIBUS DP Weight Transmitter

£569.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

Profibus DP port

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

Up to 16 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 3, 5 to 24 VDC PNP

Relay Outputs

Qty 5, max 115 VAC/150 mA

A/D Converter

8 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2 uV/VSI

Learn more

Applications

Established automation systems

Well suited to plant where PROFIBUS DP remains the standard control interface.

Large vessel weighing

For silos, tanks, hoppers and platforms that need several load-cell channels.

Industrial Weighing Automation

Supports advanced weighing automation with detailed load cell monitoring.

Weighbridge Monitoring

Suitable for weighbridges and large multi-load-cell structures requiring load distribution analysis.

Features

PROFIBUS DP connection

Adds the weighing point to an established PROFIBUS DP process or factory network.

Eight-channel monitoring

Shows individual channel information for load distribution checks, setup and quicker sensor diagnosis.

Advanced Diagnostic Functions

Provides advanced diagnostics including load cell status and weighing system health monitoring.

Remote System Supervision

Supports remote supervision, commissioning and monitoring of complex weighing installations.

FAQs

Why specify the TLM8 with PROFIBUS DP?

It provides eight-channel load-cell monitoring while communicating with the automation system through PROFIBUS DP.

Can PROFIBUS support load distribution monitoring?

Yes, PROFIBUS versions support load distribution monitoring features.

What industries use PROFIBUS TLM8 transmitters?

PROFIBUS TLM8 transmitters are installed in established industrial facilities.

Why use PROFIBUS in large weighing systems?

PROFIBUS provides reliable communications for complex industrial weighing systems.
