8-Channel Weight Transmitter with SERCOS III Interface

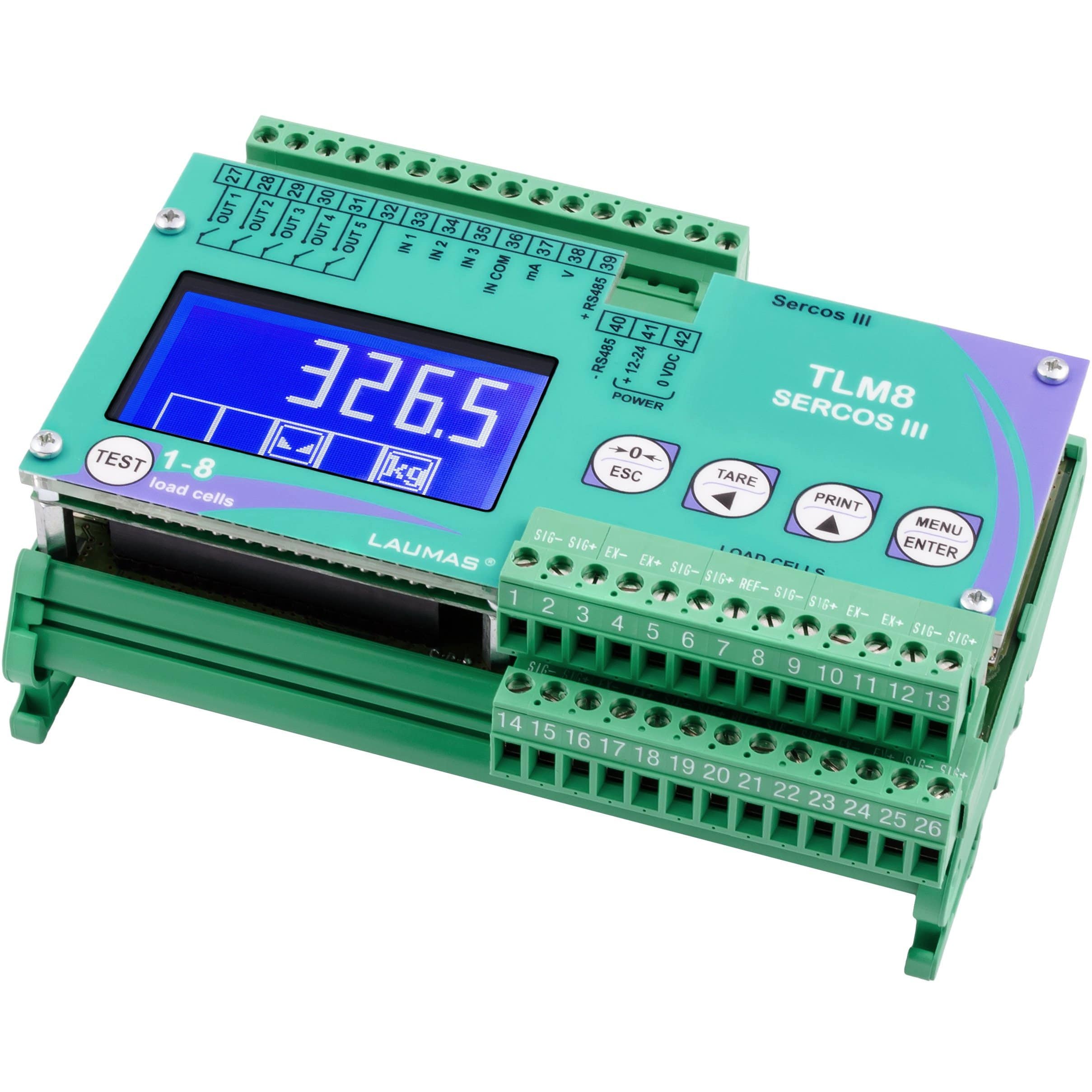

The Laumas TLM8 SERCOS III Weight Transmitter is a powerful multi-channel transmitter designed for demanding weighing applications in advanced automation systems. It features a SERCOS III real-time Ethernet interface, providing reliable and fast communication with motion control systems and industrial PLCs.

With the capacity to connect and monitor up to 8 individual load cells, the TLM8 enables detailed fault detection and ensures consistent accuracy across complex weighing platforms. Its compact DIN rail form factor allows for easy integration in control cabinets.

Key Features

• Supports 8 Load Cells: 4- or 6-wire, 350 Ω each
• SERCOS III Interface: Seamless integration with industrial automation networks
• Advanced Monitoring: Individual cell diagnostics for early fault detection
• High-Resolution A/D Conversion: 24-bit ADC with up to 600 conversions per second
• Compact DIN Rail Mounting: Ideal for panel-based control systems

Technical Details

• Input Channels: 8 × 350 Ω load cells (4- or 6-wire)
• Excitation Voltage: 5 VDC ±10%, max 160 mA
• Resolution: Up to 999,999 display divisions
• A/D Converter: 24-bit, up to 600 Hz
• Communication Protocol: SERCOS III
• Power Supply: 12–24 VDC ±10%
• Operating Temperature: -10 °C to +40 °C
• Mounting: DIN rail enclosure, IP20 protection
