Ohaus Frontier 5000 Series Micro Centrifuge
121440
Ohaus Frontier 5000 Series Micro Centrifuge
121440
Up to 17,317 × g • 13,500 RPM • Compact • Refrigerated & Air-Cooled Models
High-Speed, Space-Saving Micro Centrifuges for Fast, Safe Sample Processing

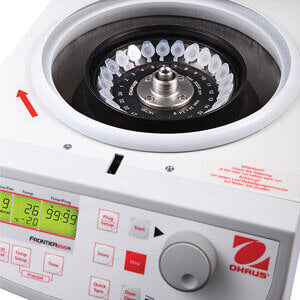

Ohaus Frontier 5513 and 5513R Micro Centrifuges are compact, high-speed benchtop centrifuges built for rapid micro-volume separations in research, clinical, and diagnostic laboratories. Supporting speeds up to 13,500 rpm and generating forces as high as 17,317 × g, these centrifuges are optimized for handling 0.2 to 2.0 ml microtubes, spin columns, PCR strips, and hematocrit capillaries.
The FC5513R model features refrigeration from -20 °C to +40 °C with pre-cooling and standstill cooling, while both models offer a splash-proof interface, intuitive touch-wheel control, and up to 99 programmable settings. Despite their power, these centrifuges maintain a compact footprint, preserving valuable bench space in busy labs.
Key Features
- High-Speed Micro Processing: Up to 13,500 rpm / 17,317 × g (FC5513), 14,500 rpm / 17,157 × g (FC5513R).
- Rotor Flexibility: Supports up to 7 rotors for 0.2–2.0 ml tubes, spin columns, haematocrit, and PCR strips.
- Refrigerated Option (FC5513R): Temperature range of -20 °C to 40 °C with pre-cool function.
- Space-Saving Design: Small footprint with ergonomic operation, ideal for crowded benchtops.
- Touch-Wheel Interface: Smooth navigation, RPM/RCF toggle, and backlit LCD screen with dual display.
- Quiet Operation: Noise level ≤ 60 dB(A) for a lab-friendly environment.
- Advanced Safety: Lid-locking system, imbalance detection, and optional biosealed rotors.
Model Specifications
| Model | Max Speed (RPM) | Max RCF (× g) | Capacity | Cooling | Noise Level | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|---|
| FC5513 | 13,500 | 17,317 | 24 × 1.5/2.0 ml | Air-cooled | ≤ 60 dB(A) | 277 × 356 × 236 | 12.6 kg |
| FC5513R | 14,500 | 17,157 | 24 × 1.5/2.0 ml | -20 °C to +40 °C | ≤ 56 dB(A) | 287 × 555 × 286 | 33 kg |
Rotor & Tube Compatibility
-
Angle Rotors:
- 24 × 1.5/2.0 ml BIOSEALS or standard
- 18 × 1.5/2.0 ml with sealable lid
- 24 × 2.0 ml spin column tubes
- 4 × 8-place PCR strip (0.2 ml)
- Hematocrit Rotor: 24 capillaries (1.9 mm diameter)
- Adapters Available For: 0.2/0.4 ml, 0.5 ml, and 7 ml microtubes or vacutainers
Additional Features
- Program Memory: Store up to 99 commonly used parameters.
- Timer Range: Quick spin, 10 sec to 99 hr 59 min 59 sec, or continuous mode.
- Compliance: CE, IEC/EN 61010-1, EN 61010-2-020, EN 61326-1.
- Power: 230 V, 50–60 Hz; power-efficient motors and low current draw.
