Ohaus Frontier 5000 Series Multi Centrifuge
121900
Ohaus Frontier 5000 Series Multi Centrifuge
121900
Up to 6,800 RPM • Compact Benchtop • Up to 4,445 × g • Multiple Rotor Options
Quiet, Flexible Low-Speed Centrifuges for General Lab, Clinical, and Diagnostic Applications

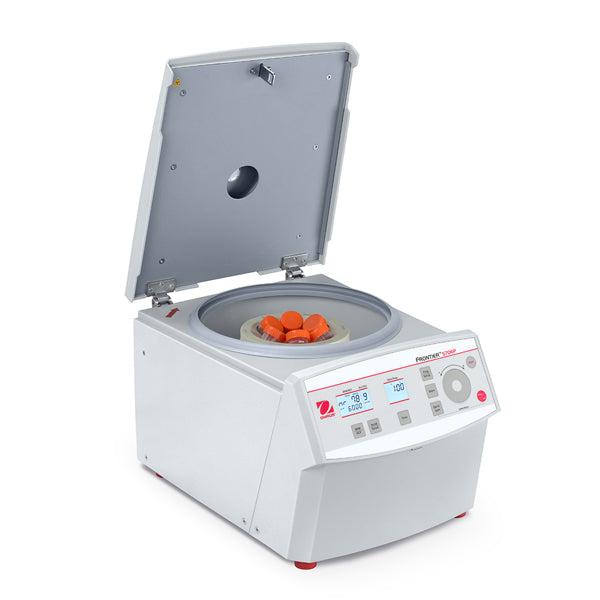

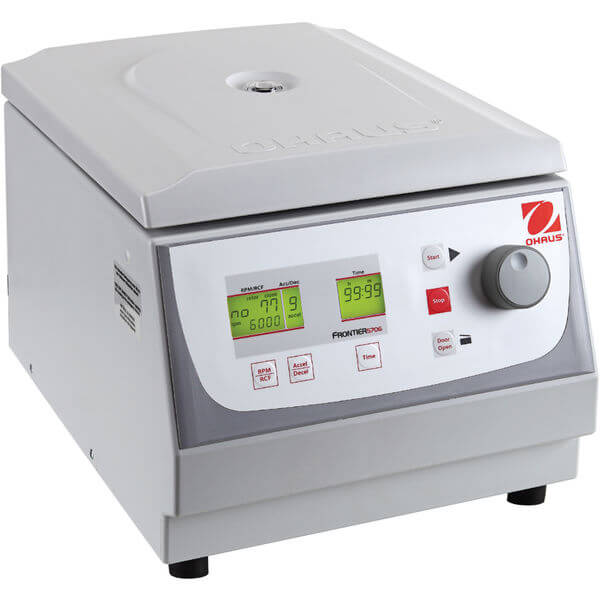

Ohaus Frontier 5706P and 5707 Multi Centrifuges are compact, low-speed benchtop centrifuges designed for versatility in clinical, research, and diagnostic environments. With speed ranges up to 6,800 rpm and maximum relative centrifugal force (RCF) up to 4,445 × g, these models accommodate a broad spectrum of sample types through a wide range of interchangeable rotors and adapters.
Engineered for user convenience, both models feature a modern touch-wheel interface, 99-program memory, and 10 acceleration/deceleration profiles. Whether processing blood tubes, urine samples, microtubes, or conical tubes, the 5706P and 5707 provide a reliable, intuitive platform in an energy-efficient, space-saving design.
Key Features
- Wide Speed Range: 200–6,800 rpm (model dependent), ideal for most low-speed lab separations.
- Rotor Variety: Supports fixed angle and swing-out rotors for 1.5 ml to 50 ml tubes, including blood and microtubes.
- Compact & Quiet: Noise levels as low as ≤ 56 dB(A); minimal bench footprint.

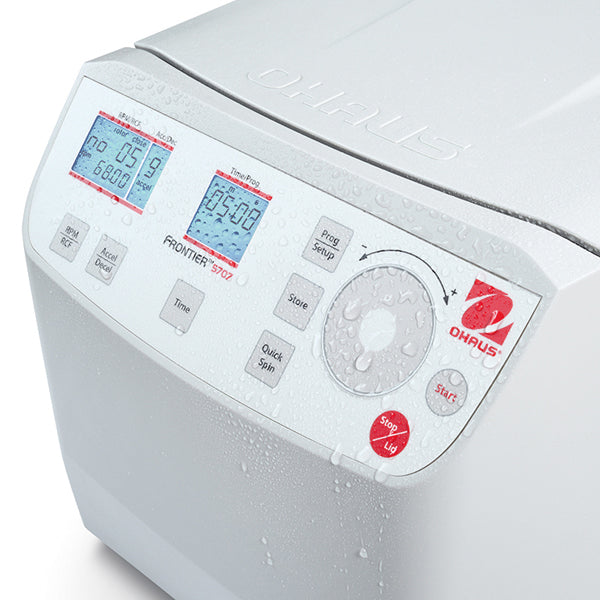

- User Interface: Backlit dual-line LCD, touch-wheel, RPM/RCF toggle, and in-run adjustments.
- Program Storage: Save and recall up to 99 user-defined run profiles for routine processes.
- Safety Built-In: Rotor imbalance detection, emergency lid release, audible end alerts, and secure lid-locking system.
Model Specifications
| Model | Max Speed (RPM) | Max RCF (× g) | Max Capacity | Cooling | Noise Level | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|---|
| FC5706P | 6,000 | 4,427 | 6 × 50 ml | Air-cooled | ≤ 56 dB(A) | 323 × 427 × 271 | 14.2 kg |
| FC5707 | 6,800 | 4,445 | 4 × 50 ml or 8 × 15 ml | Air-cooled | ≤ 60 dB(A) | 277 × 356 × 236 | 11.5 kg |

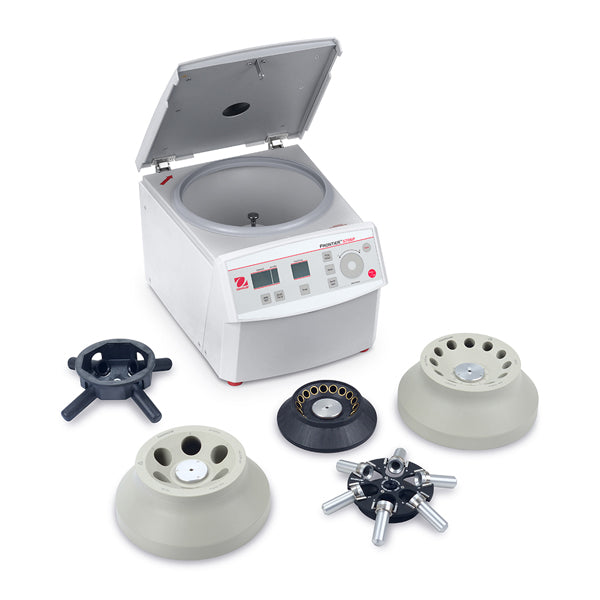

Rotor & Tube Compatibility
-
Fixed Angle Rotors:
- 6 × 50 ml (RB/FA)
- 12 × 15 ml (RB/FA)
- 18 × 1.5/2.0 ml microtubes
- 8 × 15 ml or 4 × 50 ml (5707)
-
Swing-Out Rotors:
- 4 × 10 ml blood/urine tubes
- 6 × 5 ml with included buckets
- Adapters: Compatible with 0.2 ml – 50 ml tubes (round/conical) from Vacutainer®, Sarstedt®, Falcon®, and more.
Additional Features
- Timer Range: 10 sec to 99 hr 59 min or continuous.
- Quick Spin Mode: Rapid separation for time-sensitive tasks.
- Compliant: CE marked, IEC/EN 61010-1, EN/IEC 61326-1, FCC Class B emissions.
- Power Efficiency: Operates on 100–240 V, 50–60 Hz, with low power consumption.
