Ohaus Frontier 5000 Series Multi IVD Centrifuge
142600
Ohaus Frontier 5000 Series Multi IVD Centrifuge
142600
Up to 6,000 RPM • 4,427 × g • Compact Benchtop • Air-Cooled
Quiet, Compact Centrifuge for General Laboratory and Diagnostic Applications

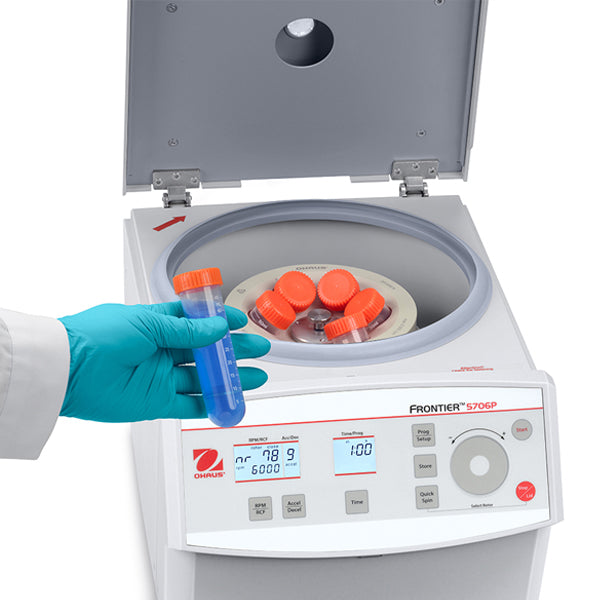

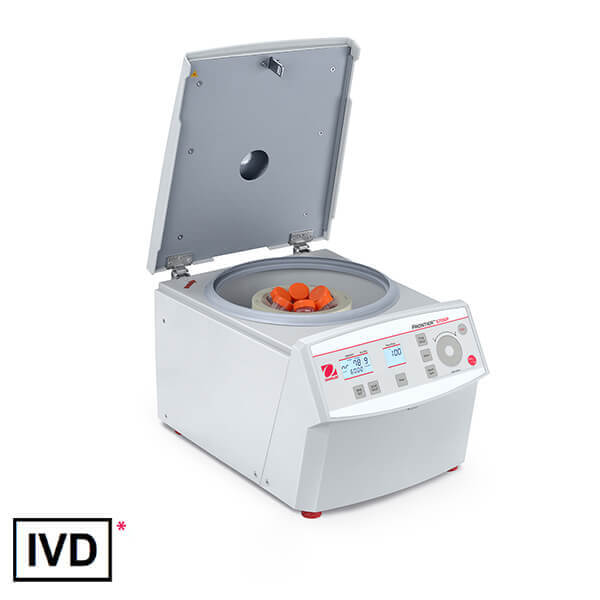

The Ohaus Frontier FC5706P Multi Centrifuge is a space-saving, user-friendly benchtop centrifuge ideal for low-speed separation in clinical, research, and diagnostic laboratories. With a speed range of 200–6,000 rpm and a maximum RCF of 4,427 × g, this versatile model accommodates a variety of tube sizes and rotor options.
Equipped with an intuitive interface, touch-wheel control, and 99 memory sets, the FC5706P is designed to streamline everyday centrifugation. A maintenance-free DC motor, noise levels under 56 dB(A), and a range of fixed angle and swing-out rotors make it ideal for routine processing of blood, urine, and microtube samples.
Key Features
- Versatile Capacity: Compatible with 1.5 ml to 50 ml tubes using multiple rotors and adapters.
- Rotor Flexibility: Supports fixed angle rotors (up to 18 × 1.5/2.0 ml) and swing-out rotors (up to 4 × 10 ml blood tubes).
- Quiet & Compact: Low-noise operation (≤ 56 dB), with a footprint of just 323 × 427 mm.

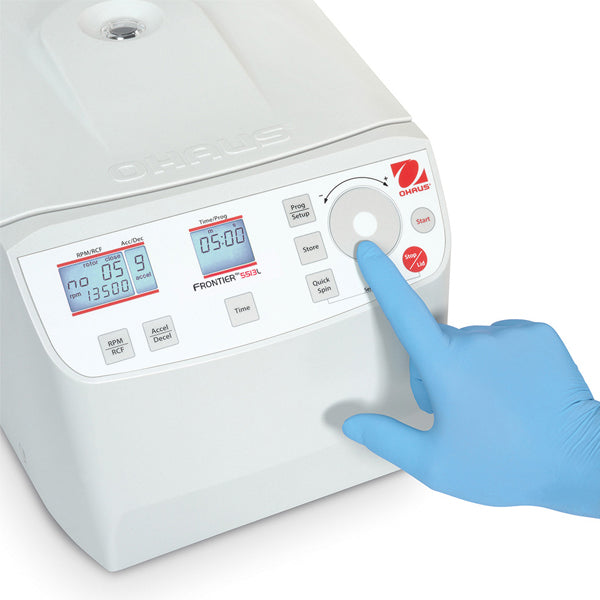

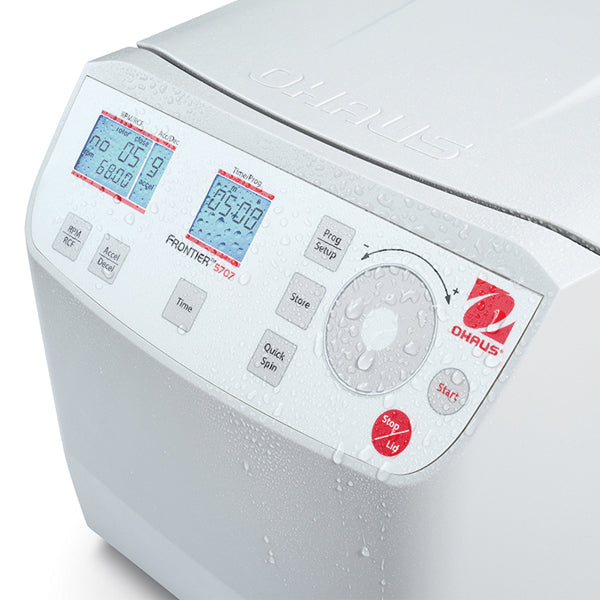

- User-Friendly Interface: Double-line LCD, RPM/RCF toggle, 10 Acc/Dec settings, and audible end-of-run alert.
- Advanced Safety: Lid locking system, imbalance detection, emergency release, and LED status indicators.
- Flexible Timing: Quick spin function, continuous run, or programmable from 10 seconds to 99 hours 59 minutes.
Specifications
| Model | Max Speed (RPM) | Max RCF (× g) | Max Capacity | Cooling | Noise Level | Weight |
|---|---|---|---|---|---|---|
| FC5706P | 6,000 | 4,427 | 6 × 50 ml | Air-cooled | ≤ 56 ± 2 dB(A) | 14.2 kg |
Rotor Options & Compatibility
- Angle Rotor 6 × 50 ml: For standard conical or round bottom tubes with 29 mm diameter.
- Angle Rotor 12 × 15 ml: For 15 ml tubes with or without adapters.
- Angle Rotor 18 × 1.5/2.0 ml: Ideal for microtubes and smaller volume samples.
- Swing-Out Rotor 4 × 10 ml: Suited for blood/urine tubes with compatible racks.
- Swing-Out Rotor 6 × 5 ml: Designed for small-volume samples with adapter options.
Additional Features
- Memory Function: Stores up to 99 user-defined programs.
- Rotor Imbalance Sensor: Stops operation if imbalance is detected.
- Compliance: CE certified, EN/IEC 61010-1, FCC Class B emissions.
- Power Supply: 100–240 V, 50–60 Hz with voltage fluctuation tolerance ±10%.
