Kern CCS Counting Scales
84200
Kern CCS Counting Scales
84200
Kern CCS counting scales with capacities from 1.5 kg to 1500 kg. Kern CCS counting scales is an adavnced counting system with a resolution of 999,999 points. You are able to measure everything from the smallest to largest part in your stock inventory. They are available with an optional calibration certificate and other accessories such as printers, software and communications.
With this highly-accurate counting system KERN CCS you can replace a large spectrum of individual counting scales
Reference scale KERN CFS:
This professional KERN CFS counting scale, which can also be used as a stand-alone scale, meets the highest demands for accuracy, weighing range and volume of items, by being connected to a high-capacity weighing bridge
- Programmable using numerical key pad:
- required reference quantity
- known reference weight
- Three displays for total weight, piece weight, total quantity
- Memory (PLU) for 100 items with additional text, reference weight and tare weight, e.g. of a container
- Audible Fill-to-target: target quantity or target weight can be programmed. When the target value is reached, a signal will sound
- Precise counting: The automatic reference weight optimisation of reference weight gradually improves the average piece weight value
Quantity scale KERN KFP:
The high-accuracy quantity counting takes place on the weighing platform (= weighing bridge) KERN CCS. In this way even the smallest of parts can be counted in large volumes
- Stainless steel platform, painted steel base
- Aluminium singlepoint load cell (1Ã3000 e), protection against dust and water splashes IP65
- Protective working cover included with delivery
| Model | Weighing capacity | Readability | Weighing plate |
| [Max] | [d] | mm | |
| (WxD |Dia) | |||
| CCS 150K0.01 | 150 kg | 0.01 g | 500x400 mm |

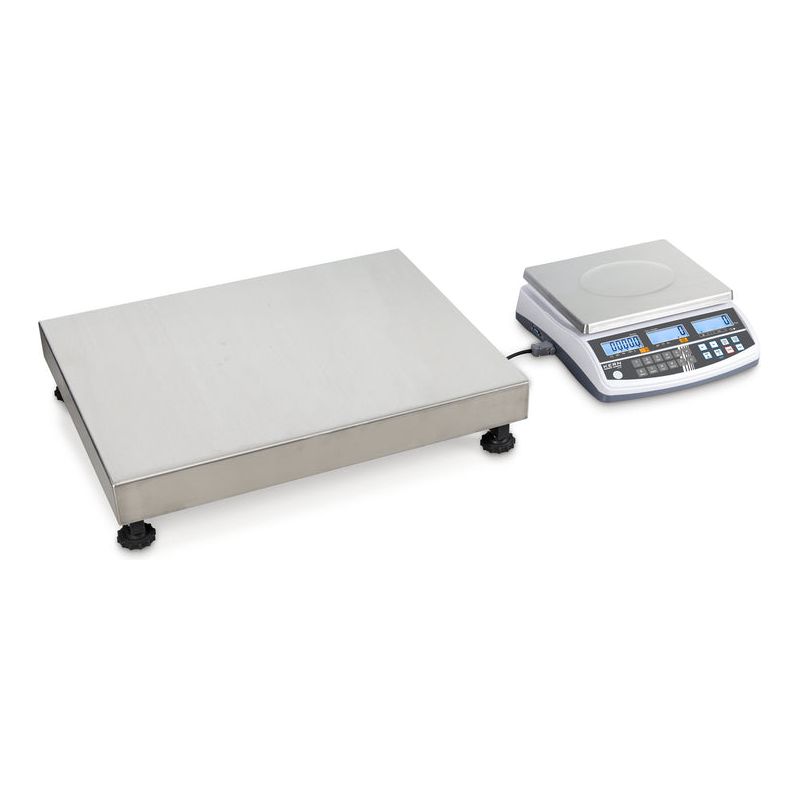

| CCS 150K0.01L | 150 kg | 0.01 g | 650x500 mm |
| CCS 150K0.1 | 150 kg | 0.1 g | 500x400 mm |
| CCS 150K0.1L | 150 kg | 0.1 g | 650x500 mm |
| CCS 1T-1L | 1500 kg | 0.1 g | 1500x1250 mm |
| CCS 1T-1U | 1500 kg | 0.1 g | 840x1190 mm |
| CCS 1T-4 | 1500 kg | 0.1 g | 1200x1500 mm |
| CCS 1T-4S | 1500 kg | 0.1 g | 1000x1000 mm |
| CCS 300K0.01 | 300 kg | 0.01 g | 650x500 mm |
| CCS 300K0.1 | 300 kg | 0.1 g | 650x500 mm |

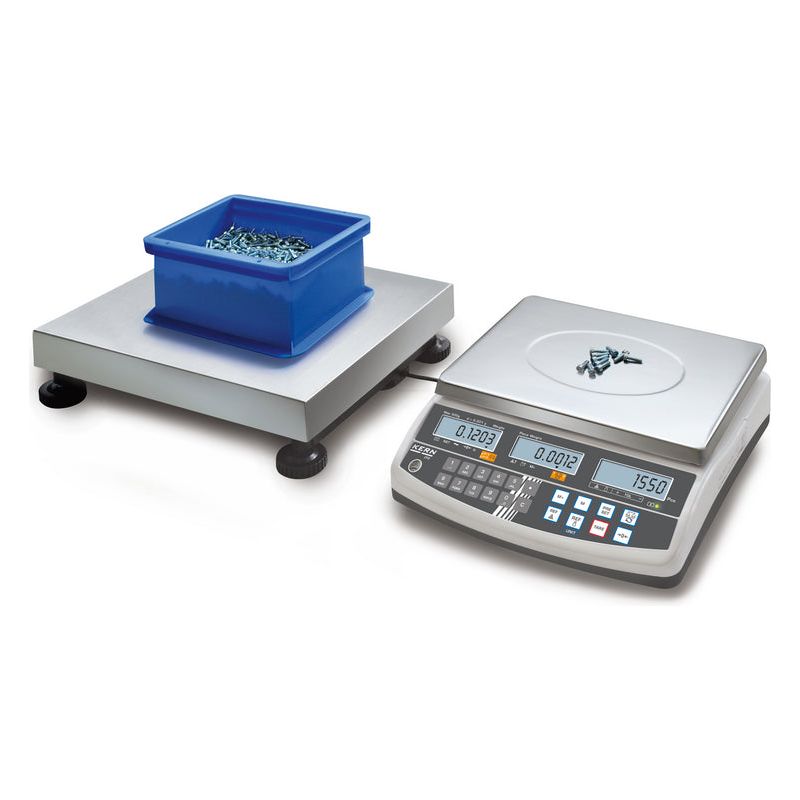

| CCS 30K0.01 | 30 kg | 0.01 g | 400x300 mm |
| CCS 30K0.1. | 30 kg | 0.1 g | 400x300 mm |

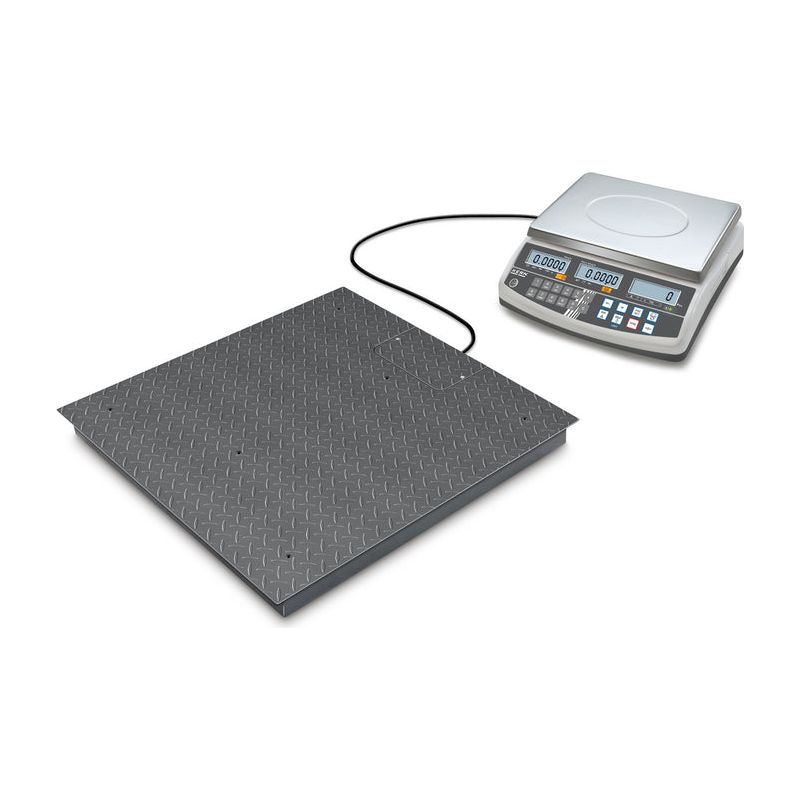

| CCS 3T-3 | 3000 kg | 0.1 g | 1200x1500 mm |
| CCS 3T-3L | 3000 kg | 0.1 g | 1500x1500 mm |
| CCS 600K-1 | 600 kg | 0.1 g | 1200x1500 mm |
| CCS 600K-1S | 600 kg | 0.1 g | 1000x1000 mm |

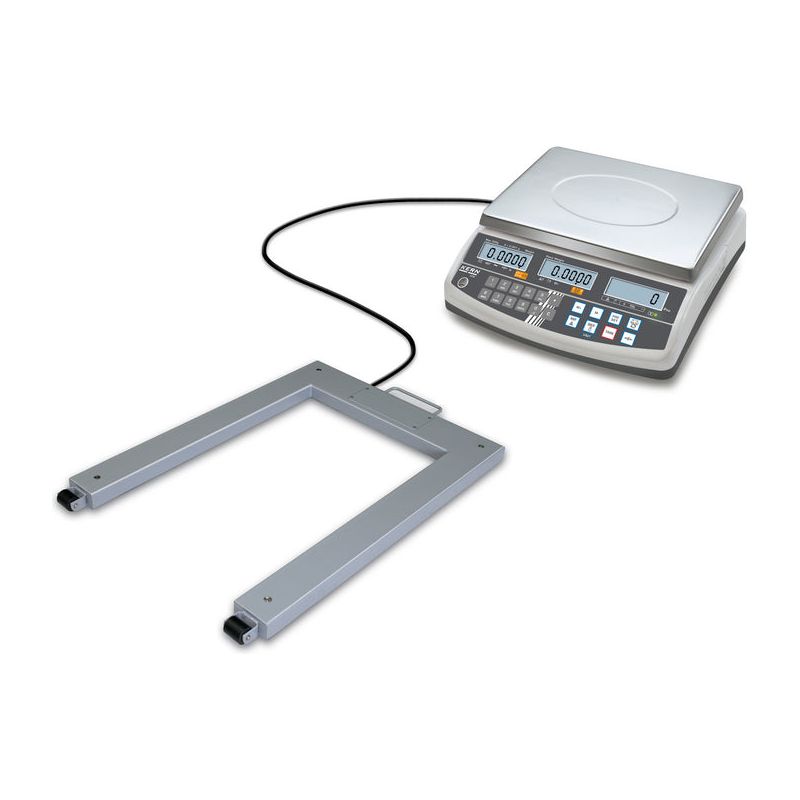

| CCS 600K-2U | 600 kg | 0.01 g | 840x1190 mm |
| CCS 60K0.01 | 60 kg | 0.01 g | 400x300 mm |
| CCS 60K0.01L | 60 kg | 0.01 g | 500x400 mm |
| CCS 60K0.1 | 60 kg | 0.01 g | 400x300 mm |
| CCS 60K0.1L | 60 kg | 0.1 g | 500x400 mm |
| CCS 6K-6 | 6 kg | 0.001 g | 230x230 mm |
Standard
Optional
