Kern CCS Counting Scales
79000
Kern CCS Counting Scales
79000
Bulk Counting with Exceptional Accuracy

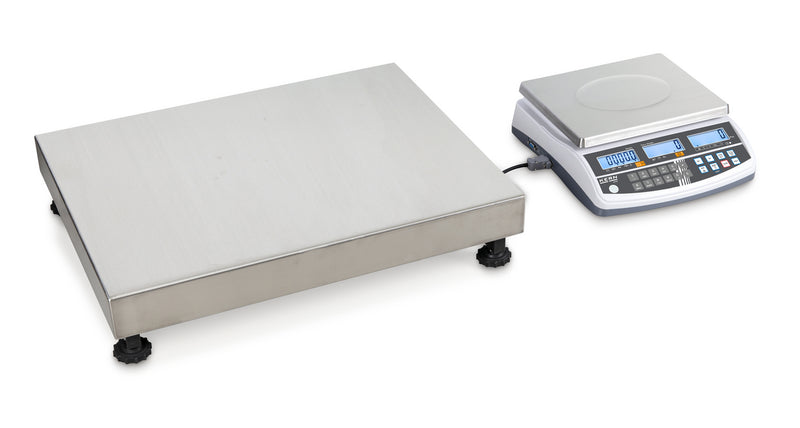

The Kern CCS Counting System combines the high-resolution CFS reference scale with a robust quantity platform or weighing bridge, enabling highly accurate part counting even for the smallest components in large volumes. Designed to replace multiple standalone balances, the CCS system is ideal for warehouses, production lines, and inventory management.
With programmable target values, three separate LCDs for count, weight, and reference weight, and memory for 100 PLUs, the CCS offers efficient and intuitive operation. Various weighing platforms support capacities up to 3000kg, ensuring flexibility for industrial needs.
Key Features
- Dual-Scale Counting: Combines a precision reference scale with a high-capacity platform or bridge for optimal performance.
- High Resolution: Up to 30,000,000 counting resolution for extremely fine part detection.
- Smart Reference Optimisation: Automatically refines piece weight during operation for greater accuracy.
- Target Functions: Audible and visual alerts when target weight or piece count is reached.
- Three Displays: Shows unit weight, total weight, and part count simultaneously.
- Durable Build: IP65–IP67 protection, robust steel and stainless-steel construction for industrial environments.
Model Comparison
| Model | Platform Capacity (kg) | Platform Readability (g) | Reference Scale Capacity (g) | Reference Readability (g) | Max Count | Min Part Weight (g) |
|---|---|---|---|---|---|---|
| CCS 6K-6 | 6 | 0.2 | 300 | 0.001 | 1,200,000 | 0.05 |
| CCS 10K-6 | 15 | 0.5 | 300 | 0.001 | 3,000,000 | 0.05 |
| CCS 30K0.01 | 30 | 1 | 3000 | 0.01 | 600,000 | 0.5 |
| CCS 60K0.01 | 60 | 2 | 3000 | 0.01 | 1,200,000 | 0.5 |
| CCS 150K0.01 | 150 | 5 | 3000 | 0.01 | 3,000,000 | 0.5 |
| CCS 300K0.01 | 300 | 10 | 3000 | 0.01 | 6,000,000 | 0.5 |
| CCS 600K-1S | 600 | 200 | 6000 | 0.1 | 6,000,000 | 1 |
| CCS 1T-4 | 1500 | 500 | 6000 | 0.1 | 15,000,000 | 1 |
| CCS 3T-3L | 3000 | 1000 | 6000 | 0.1 | 30,000,000 | 1 |
Additional Information
- Reference Scale: KERN CFS with 3-line display and memory for 100 items
- Weighing Platforms: Stainless steel or painted steel, IP65–IP67 protection, multiple sizes
- Calibration: DAkkS calibration certificates available
- Connectivity: RS-232 interface; optional signal lamp, Y-cable, and printers
