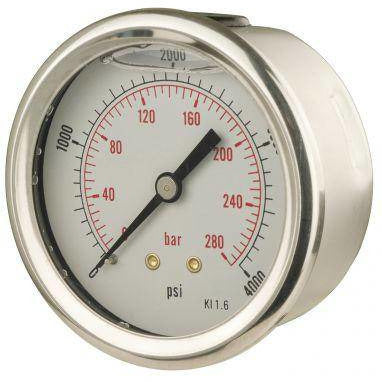

The 63mm back entry glycerine filled pressure gauge is designed for heavy-duty hydraulic and pneumatic applications. The glycerine filling dampens vibration, ensuring stable and accurate readings even in demanding environments.

Available in ranges from -1 bar to 690 bar (10,000 psi), with a 1/4" BSP thread supplied as standard. An optional calibration certificate can also be provided.

Click here to add a connection adapter

Case: 304 Stainless steel
Bezel: Crimped stainless steel
Window: Polycarbonate
Connection: Brass
Sensitive Element: Brass
Movement: Brass
Joints: Soldered silver alloy
Pointer: Black aluminium
Dial: Stoved enamel on aluminium
Accuracy: Class 1.6
Scale: Dual psi (outer) + bar (inner)
Fill: Bi-distilled glycerine
