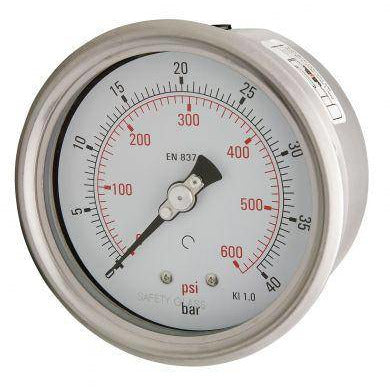

The 100mm back entry industrial pressure gauge is designed for heavy-duty hydraulic and pneumatic applications. Built for reliability in demanding environments, it provides clear and accurate readings across a wide pressure range.

Available in ranges from -1 bar to 1000 bar (15,000 psi), with a 3/8" BSP thread supplied as standard. An optional calibration certificate can also be provided.

Click here to add a connection adapter

Case: 304 Stainless steel
Bezel: Removable bayonet stainless steel
Window: Polycarbonate
Connection: Brass
Sensitive Element: Brass
Movement: Brass
Joints: Soldered silver alloy
Pointer: Black aluminium
Dial: Stoved enamel on aluminium
Accuracy: Class 2.5
Scale: Dual psi (outer) + bar (inner).
