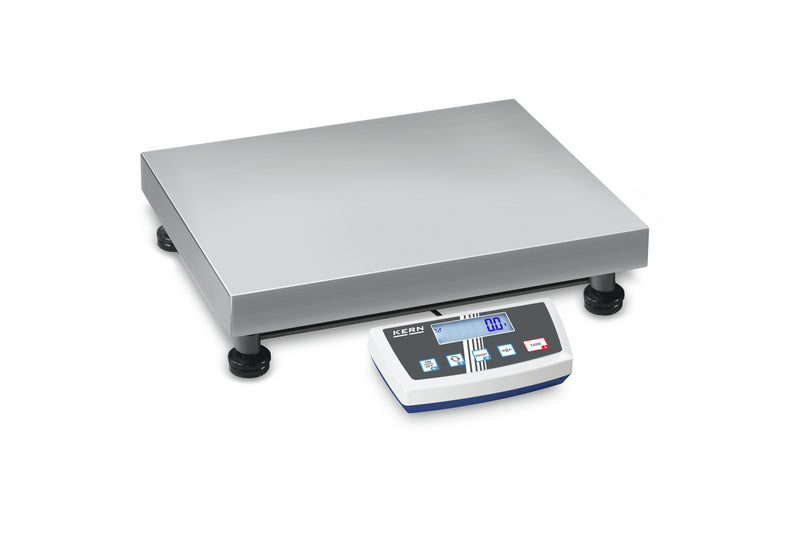

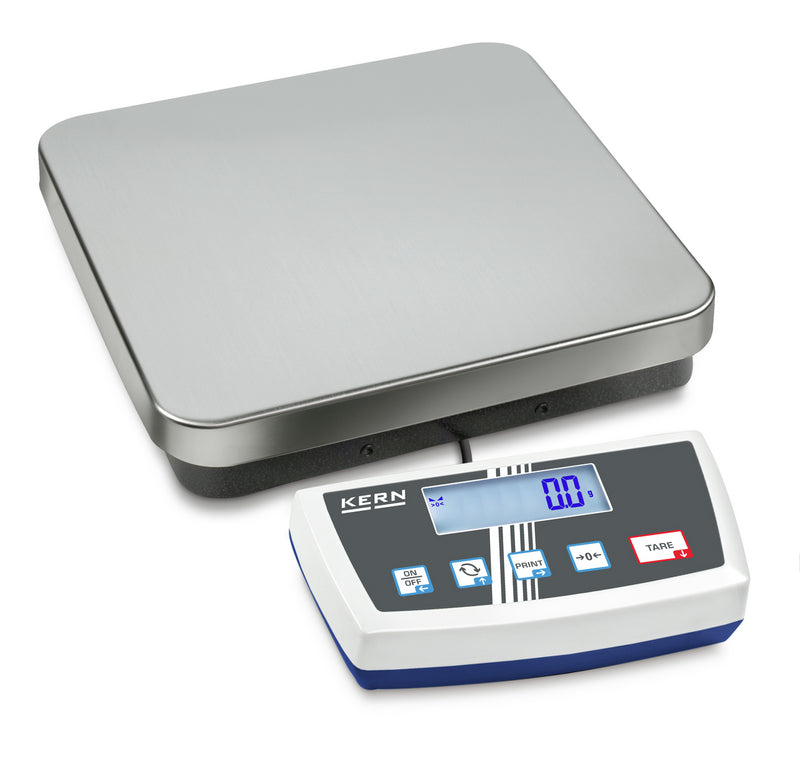

Kern DS platform scale with capacities from 3 kg to 150 kg The Kern DS platform scale available with optional calibration certificate and other accessories such as printers, software and communications.

  • High-capacity precision balance, ideal for high volume or heavy samples to be weighed with a high degree of accuracy
  • Step by step user guidance on display with simple Yes/No options
  • Numerical subtraction of tare weight for known container weight. Useful for checking fill-levels

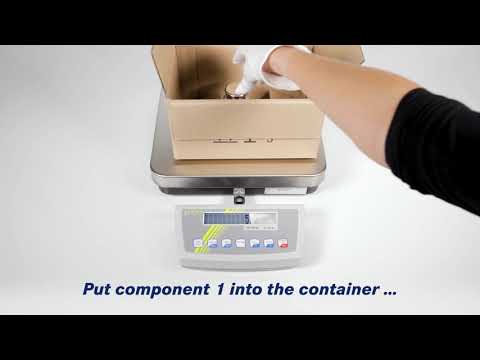

  • Precise counting: The automatic reference weight optimisation of reference weight gradually improves the average piece weight value
  • Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, grammage g/m2, or similar
  • Protective working cover included with delivery

Click here for accessories

Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)
DS 100K0.5 100 kg 500 mg 450  mm x 350  mm
DS 10K0.1S 10 kg 100 mg 228  mm x 228  mm
DS 150K1 150 kg 1 g 450  mm x 350  mm
DS 16K0.1 16 kg 100 mg 308  mm x 315  mm
DS 20K0.1 20 kg 100 mg 308  mm x 318  mm
DS 30K0.1 30 kg 100 mg 308  mm x 318  mm
DS 30K0.1L 30 kg 100 mg 450  mm x 350  mm
DS 36K0.2 36 kg 200 mg 308  mm x 318  mm
DS 36K0.2L 36 kg 200 mg 450  mm x 350  mm
DS 3K0.01S 3 kg 10 mg 228  mm x 228  mm
DS 5K0.05S 5 kg 50 mg 228  mm x 228  mm
DS 60K0.2 60 kg 200 mg 430  mm x 350  mm
DS 65K0.5 65 kg 500 mg 450  mm x 350  mm
DS 8K0.05 8 kg 50 mg 308  mm x 318  mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Data interface RS-232: To connect the balance to a printer, PC or networkPiece counting: Reference quantities selectable. Display can be switched from piece to weight.Totalising level A: The weights of similar items can be added together and the total can be printed out.Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USAStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Optional

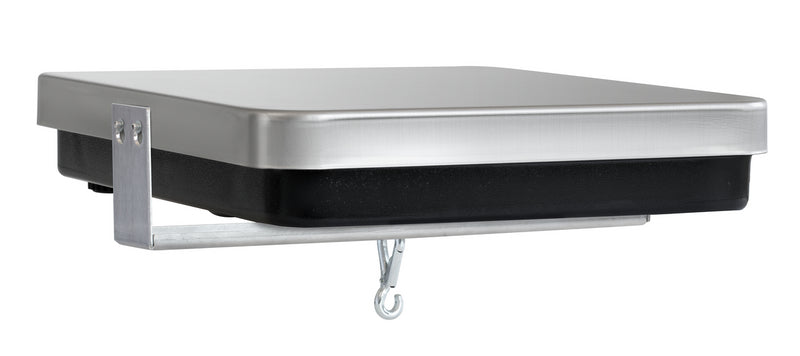

Suspended weighing: load support with hook on the underside of the balance.Rechargeable battery pack: rechargeable set
