Kern EOC Platform Scales
26800
Kern EOC Platform Scales
26800
Durable Industrial Design with Flexible Display
The Kern EOC Series platform scales are built for demanding industrial environments, offering robust design, versatile configuration, and precise multi-range weighing. The Flip/Flop display allows convenient positioning, either free-standing or wall-mounted, and the stainless steel platform with IP65-rated load cells provides excellent protection in harsh settings.
Suited for counting, portioning, or general weighing, the EOC series supports tolerance weighing, hold function for stabilising readings, and optional battery operation for portability. These features make it ideal for warehouse, production, and dispatch applications.
Key Features

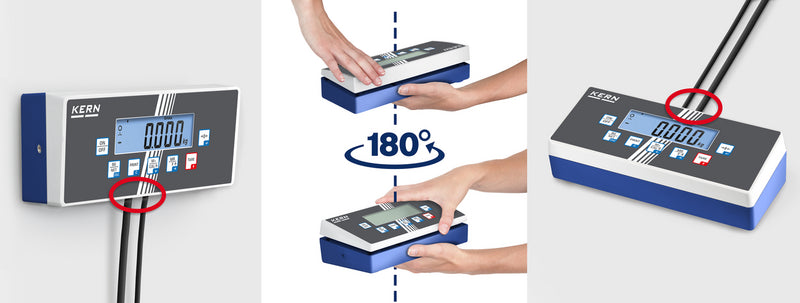

- Flip/Flop Display: Adjustable display orientation and cable outlet for desktop or wall mounting
- Stainless Steel Platform: IP65 silicone-coated load cell and splashproof housing ensure rugged performance
- Multi-Range Capability: Automatically shifts resolution based on load for optimal accuracy
- Counting & Checkweighing: Integrated functions with visual and audible feedback for efficient processing
- Hold Function: Stabilises readings for consistent results in unstable environments
- Connectivity: KERN Communication Protocol (KCP) enables external control and data integration
Model Comparison
| Model | Capacity (kg) | Readability (g) | Reproducibility (g) | Linearity (g) | Platform Size (mm) |
|---|---|---|---|---|---|
| EOC 10K-4 | 6 | 15 | 0.2 | 0.5 | 0.2 | 0.5 | ±0.6 | 1.5 | 300 × 300 |
| EOC 30K-4S | 15 | 35 | 0.5 | 1 | 0.5 | 1 | ±1.5 | 3 | 300 × 300 |
| EOC 30K-4 | 15 | 35 | 0.5 | 1 | 0.5 | 1 | ±1.5 | 3 | 500 × 400 |
| EOC 60K-3 | 30 | 60 | 1 | 2 | 1 | 2 | ±3 | 6 | 300 × 300 |
| EOC 60K-3L | 30 | 60 | 1 | 2 | 1 | 2 | ±3 | 6 | 500 × 400 |
| EOC 100K-3 | 60 | 150 | 2 | 5 | 2 | 5 | ±6 | 15 | 300 × 300 |
| EOC 100K-3L | 60 | 150 | 2 | 5 | 2 | 5 | ±6 | 15 | 500 × 400 |
| EOC 300K-3 | 150 | 300 | 5 | 10 | 5 | 10 | ±15 | 30 | 500 × 400 |
| EOC 6K-3 | 3 | 6 | 1 | 2 | 1 | 2 | ±3 | 6 | 300 × 300 |
| EOC 10K-3 | 6 | 12 | 2 | 5 | 2 | 5 | ±6 | 15 | 300 × 300 |
| EOC 30K-3 | 15 | 35 | 5 | 10 | 5 | 10 | ±15 | 30 | 300 × 300 |
| EOC 30K-3L | 15 | 35 | 5 | 10 | 5 | 10 | ±15 | 30 | 500 × 400 |
| EOC 60K-2 | 30 | 60 | 10 | 20 | 10 | 20 | ±30 | 60 | 300 × 300 |
| EOC 60K-2L | 30 | 60 | 10 | 20 | 10 | 20 | ±30 | 60 | 500 × 400 |
| EOC 100K-2 | 60 | 150 | 20 | 50 | 20 | 50 | ±60 | 150 | 300 × 300 |
| EOC 100K-2L | 60 | 150 | 20 | 50 | 20 | 50 | ±60 | 150 | 500 × 400 |
| EOC 100K-2XL | 60 | 150 | 20 | 50 | 20 | 50 | ±60 | 150 | 600 × 500 |
| EOC 100K-2XXL | 60 | 150 | 20 | 50 | 20 | 50 | ±60 | 150 | 950 × 500 |
| EOC 300K-2 | 150 | 300 | 50 | 100 | 50 | 100 | ±150 | 300 | 500 × 400 |
| EOC 300K-2L | 150 | 300 | 50 | 100 | 50 | 100 | ±150 | 300 | 600 × 500 |
| EOC 6K-4A | 6 | 0.5 | 0.5 | ±1.5 | 300 × 300 |
| EOC 10K-3A | 12 | 1 | 1 | ±3 | 300 × 300 |
| EOC 20K-3A | 24 | 2 | 2 | ±6 | 300 × 300 |
| EOC 60K-3A | 60 | 5 | 5 | ±15 | 300 × 300 |
| EOC 100K-2A | 120 | 10 | 10 | ±30 | 500 × 400 |
Additional Information
- Display: Backlit LCD, 25 mm digit height
- Power Supply: Mains powered with optional internal rechargeable battery (up to 43 hours)
- Operating Temperature: -10°C to 40°C
- Included Accessories: Wall/bench display mount and protective working cover
- Optional Accessories: Battery pack, display mount, display cable outlet relocation kit, and platform stand
