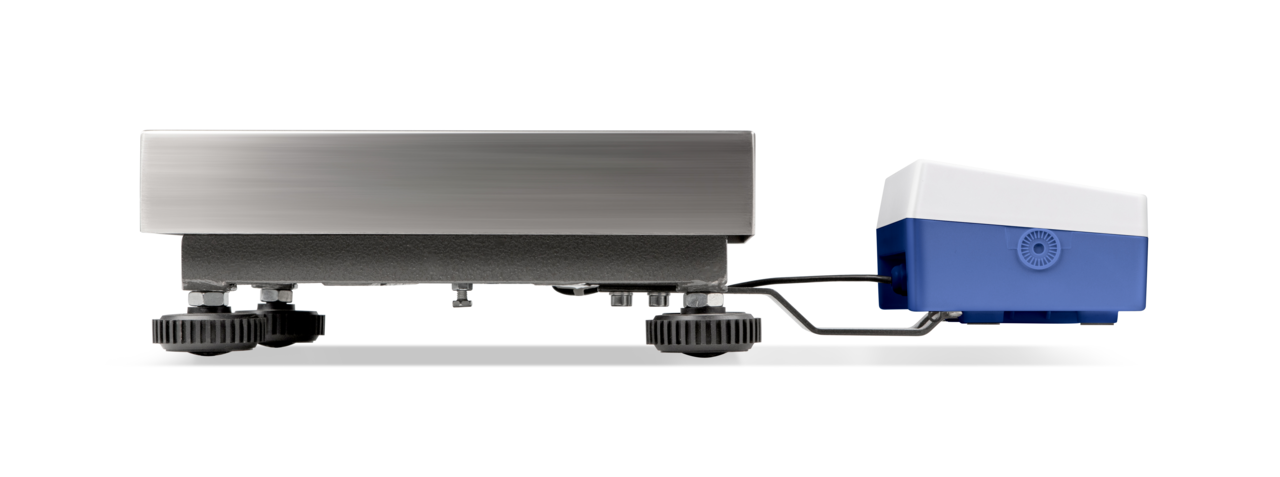

Kern EOC platform scale with capacities from 3 kg to 300 kg The Kern EOC platform scale available with optional calibration certificate and other accessories such as printers, software and communications.

  • High mobility: thanks to battery operation (optional) and compact, flat construction, it is suitable for use in several locations (laboratory, quality control, commissioning etc.)

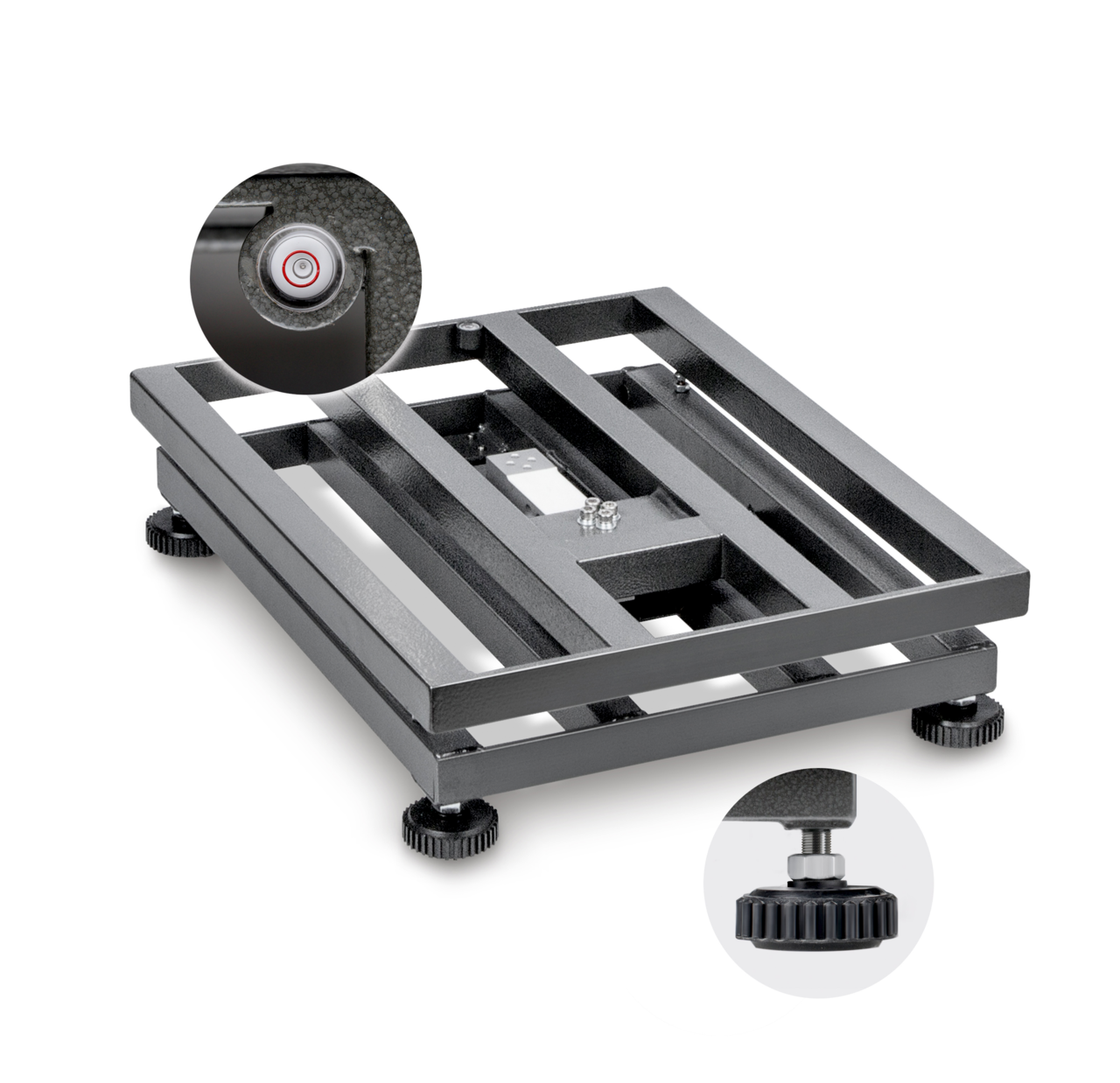

  • Platform: Weighing plate stainless steel, painted steel base, silicone-coated aluminium load cell, protection against dust and water splashes IP65
  • Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result
  • Percentage determination: makes it possible to store a given weight value (100 %) and to determine deviations from this target value
  • Weighing with tolerance range (checkweighing): a visual and audible signal helps with portioning, dispensing or grading
  • Hold function: When the weighing conditions are unstable, a stable weight is calculated determining an average value
  • Benchtop stand incl. wall mount for display device as standard
  • Weighing instead of counting! Because the counting function is so easy to use, you can rapidly record large numbers of small parts – which saves time and money!
  • Practical Flip/Flop display device: flexible positioning e.g. free-standing or screwed to the wall (optional). By rotating the upper housing shell you can determine the angle of the display as well as the cable outlet
  • Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol. Only possible through data interface RS-232, other interfaces on request
  • Protective working cover included with delivery

Click here for accessories

Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)
EOC 100K-2 60 kg | 150 kg 20 g | 50 g 300  mm x 300  mm
EOC 100K-2A 120 kg 10 g 500  mm x 400  mm
EOC 100K-2L 60 kg | 150 kg 20 g | 50 g 500  mm x 400  mm
EOC 100K-2XL 60 kg | 150 kg 20 g | 50 g 600  mm x 500  mm
EOC 100K-2XXL 60 kg | 150 kg 20 g | 50 g 950  mm x 550  mm
EOC 100K-3 60 kg | 150 kg 2 g | 5 g 300  mm x 300  mm
EOC 100K-3L 60 kg | 150 kg 2 g | 5 g 500  mm x 400  mm
EOC 10K-3 6 kg | 12 kg 2 g | 5 g 300  mm x 300  mm
EOC 10K-3A 12 kg 1 g 300  mm x 300  mm
EOC 10K-4 6 kg | 15 kg 200 mg | 500 mg 300  mm x 300  mm
EOC 20K-3A 24 kg 2 g 300  mm x 300  mm
EOC 300K-2 150 kg | 300 kg 50 g | 100 g 500  mm x 400  mm
EOC 300K-2L 150 kg | 300 kg 50 g | 100 g 600  mm x 500  mm
EOC 300K-3 150 kg | 300 kg 5 g | 10 g 500  mm x 400  mm
EOC 30K-3 15 kg | 35 kg 5 g | 10 g 300  mm x 300  mm
EOC 30K-3L 15 kg | 35 kg 5 g | 10 g 500  mm x 400  mm
EOC 30K-4 15 kg | 35 kg 500 mg | 1000 mg 500  mm x 400  mm
EOC 30K-4S 15 kg | 35 kg 500 mg | 1000 mg 300  mm x 300  mm
EOC 60K-2 30 kg | 60 kg 10 g | 20 g 300  mm x 300  mm
EOC 60K-2L 30 kg | 60 kg 10 g | 20 g 500  mm x 400  mm
EOC 60K-3 30 kg | 60 kg 1 g | 2 g 300  mm x 300  mm
EOC 60K-3A 60 kg 5 g 300  mm x 300  mm
EOC 60K-3L 30 kg | 60 kg 1 g | 2 g 500  mm x 400  mm
EOC 6K-3 3 kg | 6 kg 1 g | 2 g 300  mm x 300  mm
EOC 6K-4A 6 kg 500 mg 300  mm x 300  mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Data interface RS-232: To connect the balance to a printer, PC or networkGLP/ISO log: with weight, date and time. Only with KERN printers, see AccessoriesPiece counting: Reference quantities selectable. Display can be switched from piece to weight.Totalising level A: The weights of similar items can be added together and the total can be printed out.Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.IP 65 protection in accordance with DIN EN 60529:
Designed for temporary contact with liquids. Use a damp cloth for cleaning. Dustproof.Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USAStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
