Sauter DB Digital Torque Gauge
114200
Sauter DB Digital Torque Gauge
114200
500 Nm • USB & RS-232 • Peak-Hold & Memory Functions
Reliable Torque Measurement for Tool Calibration, Labs, and Industry

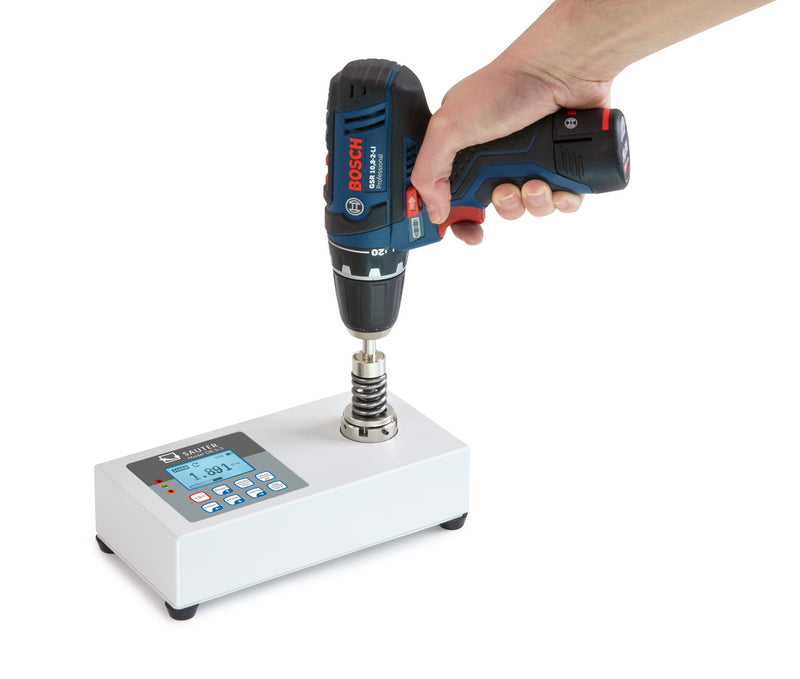

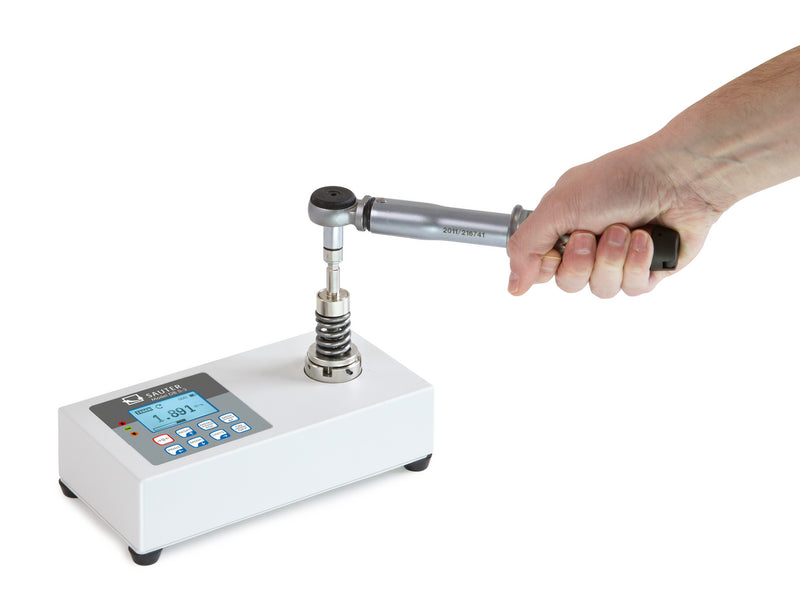

The Sauter DB Series Digital Torquemeters offer precise torque testing across a wide range of capacities, from 0.5 Nm to 500 Nm. Designed for both clockwise and counterclockwise measurements, the DB series is ideal for verifying the accuracy of torque wrenches, electric screwdrivers, and hand tools in laboratories, production lines, and quality control environments.
With peak-hold and track modes, built-in data memory for up to 500 readings, and dual USB/RS-232 output, this range of testers is optimised for both real-time monitoring and detailed analysis. The compact metal housing, intuitive interface, and included mounting plate (from 20 Nm and up) ensure consistent and durable performance under demanding conditions.
Key Features
- Wide Measurement Range: Models available from 0.5 Nm to 500 Nm capacity
- High Accuracy: ±0.5% of full scale; suitable for professional tool testing and calibration
- Dual Modes: Track mode for live measurement and Peak-Hold mode to capture maximum torque
- Data Connectivity: USB and RS-232 outputs for data transfer to PC or software
- Memory Function: Stores up to 500 torque values internally
- Versatile Units: Nm, kgf/cm, kgf/m, in-lbs, ft-lbs selectable
- Solid Construction: Metal housing with anti-slip feet and optional mounting plate (≥20 Nm)
- Rechargeable Battery: Operates up to 18 hours without backlight
Model Comparison
| Model | Capacity (Nm) | Readability (Nm) | Fitting | Mounting Plate |
|---|---|---|---|---|
| DB 0.5-4 | 0.5 | 0.0001 | 20 mm & 3/8" | No |
| DB 1-4 | 1 | 0.0002 | 20 mm & 3/8" | No |
| DB 5-3 | 5 | 0.001 | 20 mm & 3/8" | No |
| DB 10-3 | 10 | 0.002 | 20 mm & 3/8" | No |
| DB 20-3 | 20 | 0.005 | 20 mm & 3/8" | Yes |
| DB 50-2 | 50 | 0.01 | 20 mm & 3/8" | Yes |
| DB 100-2 | 100 | 0.02 | 3/8" | Yes |
| DB 200-2 | 200 | 0.05 | 1/2" | Yes |
| DB 500-2 | 500 | 0.1 | 3/4" | Yes |
Additional Information

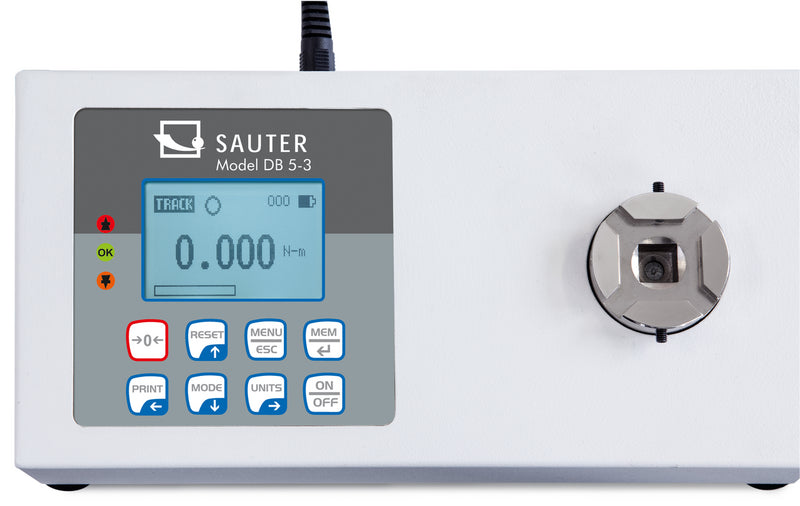

- Display: Backlit LCD graphics screen
- Software Compatibility: Optional AFI-2.0 and AFH FAST software for advanced data visualisation
- Tolerance Setting: Adjustable upper and lower limit alarms
- Overload Protection: Up to 120% of full scale
- Battery Life: Up to 18 hours (without backlight); approx. 14-hour charging time
- Dimensions (W×D×H): 180 × 110 × 60 mm
- Net Weight: Approx. 2.2 kg
