114200

The Sauter DB digital torque gauge allows for quick and easy testing of torque tools such as torque wrenches and torque screwdrivers. The Sauter DB digital torque gauge can be used as for in-house calibration checks of torque wrenches and other tools. 9 models are available with ranges up to 500 Nm. The Sauter digital torque gauge is supplied with a free calibration certificate and optional software.

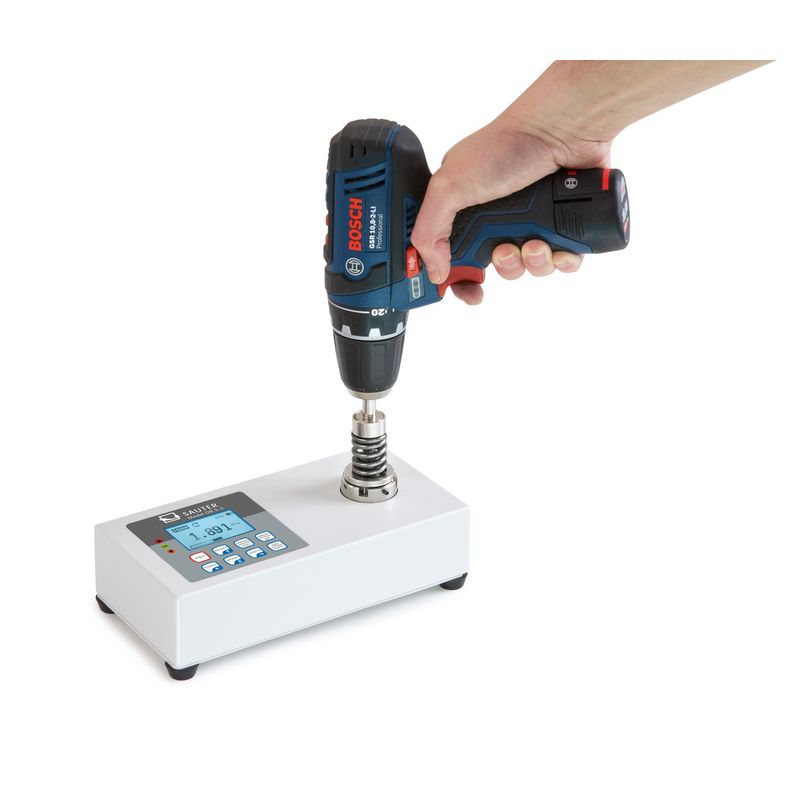

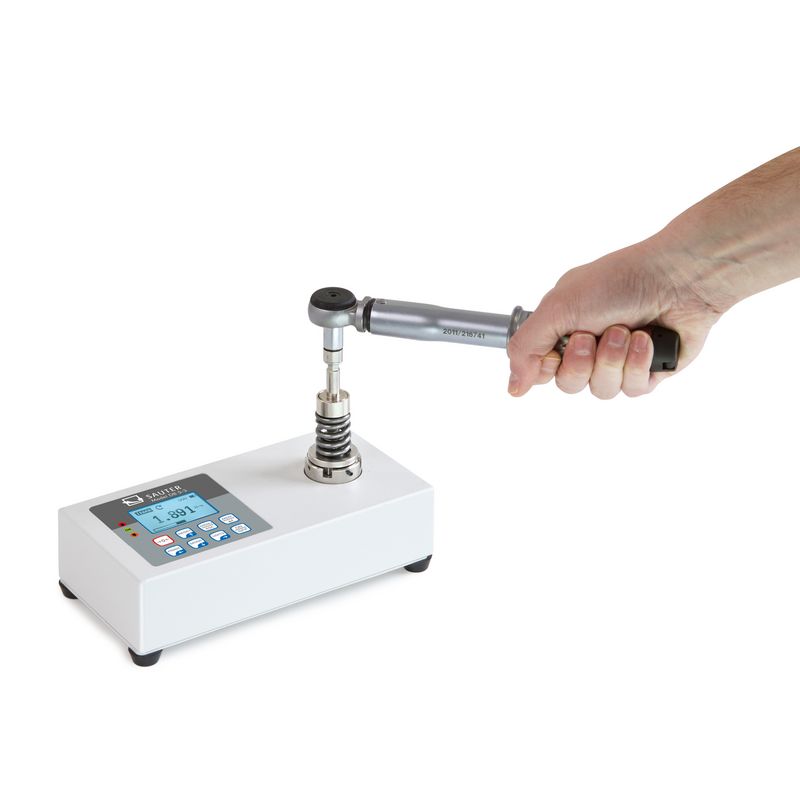

  • Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers
  • Rotary sensor for dynamic testing of electric screwdrivers (for models with [Max] ≤ 50 Nm)
  • Measurement precision: +/- 0,5% of [Max]
  • Metal housing for durable usage in harsh environmental conditions
  • Capacity display: A bar lights up to show how much of the measuring range is still available

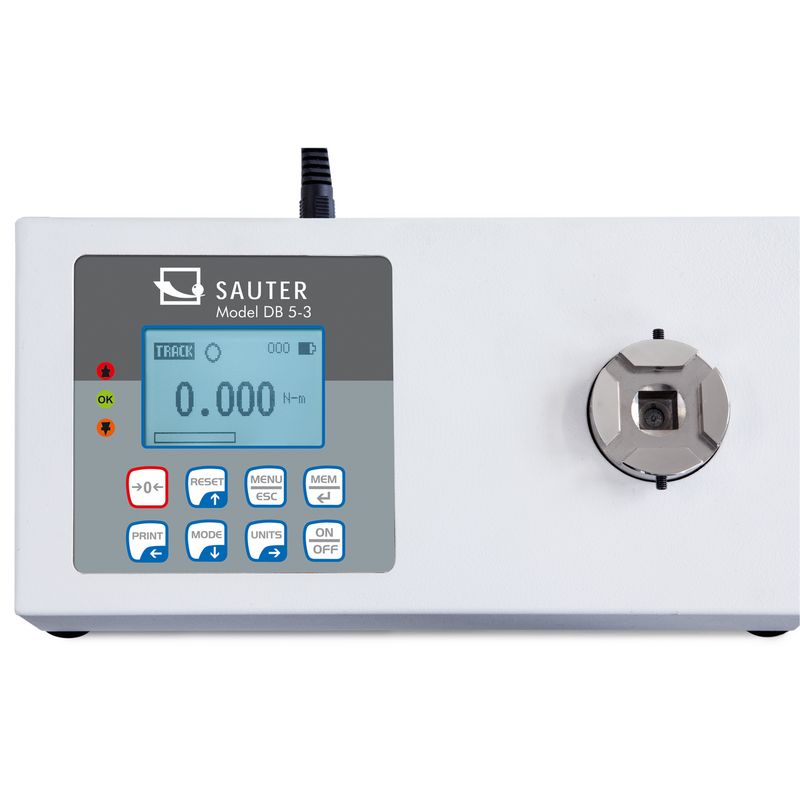

  • Back-lit LCD graphic display
  • Rubber feet with anti-slip feature (for models with [Max] ≤ 10 Nm)
  • Robust mounting plate for secure fixing (for models with [Max] ≥ 20 Nm)
  • USB and RS 232 data interfaces to the PC included

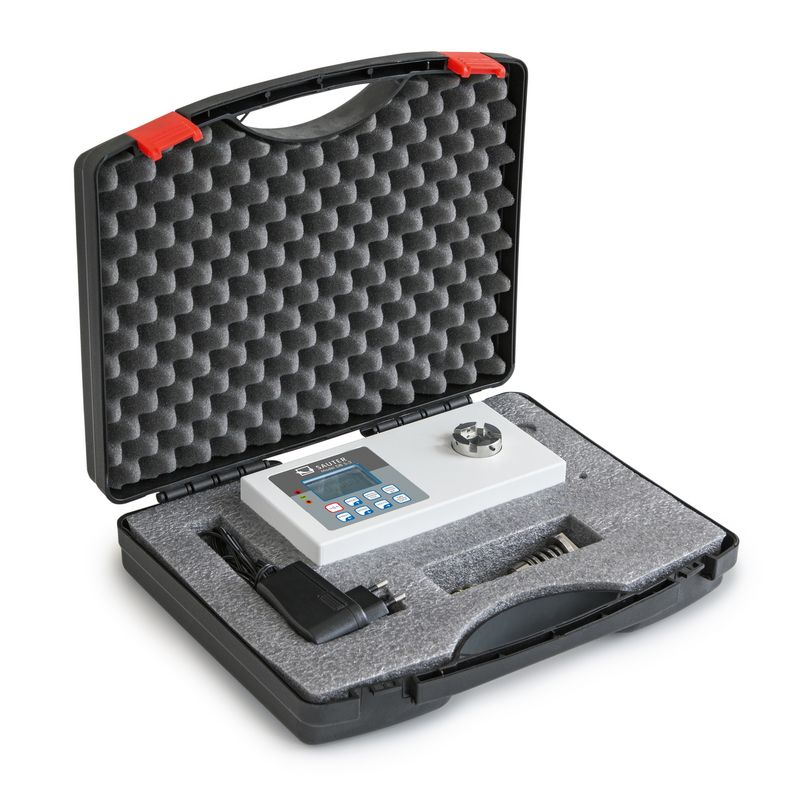

  • Scope of supply: rotary sensor, sturdy carry case, mounting plate (for models with max ≥ 20 Nm)
  • Internal data memory saves up to 500 measurements. The content of the memory can be transferred to the PC using optional software
  • Real time or Peak Hold Mode to observe transients or capture peaks
  • Can be used in both directions of rotation
  • Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed. The process is supported by an acoustic and visual signal
  • AUTO-OFF function
  • Illustration may show an application example, decoration not included

Click here for full specification

    Click here to view software

    Standard

    Peak hold function: capturing a peak value within a measuring process.Memory: Balance contains memories, e.g. for  tare weights, weighing data, item data,  PLU etc.Data interface RS-232: To connect the balance to a printer, PC or networkUSB data interface: To connect the balance to a printer, PC or other peripherals.Statistics: using the saved values, the device calculates statistical data, such as average value, standard deviation etc.Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.Rechargeable battery pack: rechargeable setMains adapter: 230V/50Hz in standard version for Germany. On request GB or USA version.

    Optional

    PC software: to transfer the measurements from the device to a PC.

    Sauter DB Digital Torque Gauge
