140690

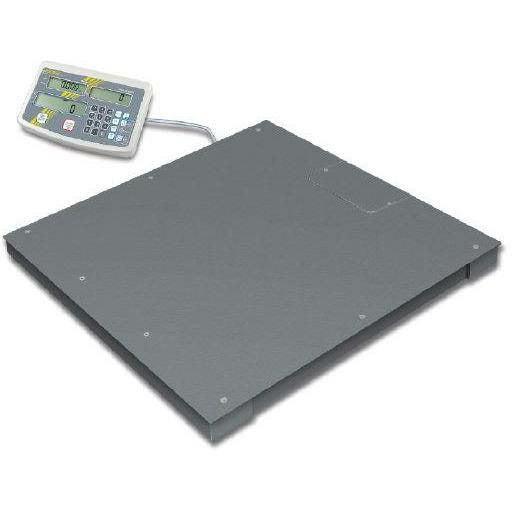

Kern BFS floor scales with capacities from 600 kg to 6000 kg. Kern BFS floor scales has a modular, IP67 rated weighing platform with screw-on weighing plate. The display has a 99 item memory and M Class approval for trade. They are available with an optional calibration certificate and a range of accessories.

  • Industrial quality: because of its stable construction, it is ideal for continuous use in robust industrial applications
  • Weighing bridge: steel, lacquered, extremely resistant to bending due to material thickness protection against dust and water splashes IP67, 4 silicone-coated steel load cells.

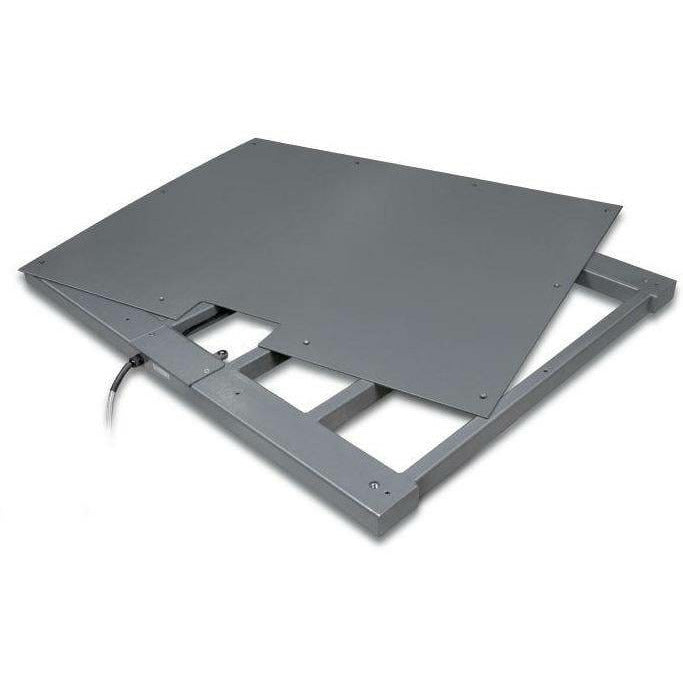

  • Weighing plate screwed on from the top, so it easy to remove, hygienic and easy to clean
  • Comfortable adjustment of the weighing bridge from above
  • Display device with large keypad and 3 high-contrast LCD display for easy entry and reading of, e.g., tare weights, reference weights, limit values etc. when piece counting.
  • Benchtop stand incl. wall mount for display device as standard
  • 99 item memories for master data such as reference weight, reference quantity, container weight (PRE-TARE) etc. when piece counting
  • Printout with date and time
  • Totalising of pieces when counting
  • Note: For verified scales the weighing bridge must be fixed to the floor. Optionally, with an access ramp, a footplate pair or a pit frame
  • Limited tare range with verifiable models (1/6 from [Max])
  • Our large, heavy floor scales are sent in a sturdy wooden crate, to ensure safe transportation and protection of the measuring equipment

Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)
BFS 3T-3LM 3000 kg 1 kg 1500  mm x 1500  mm
BFS 600K-1NM 600 kg 200 g 1500  mm x 1250  mm
BFS 6T-3M 6000 kg 2 kg 1500  mm x 1500  mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Memory: Balance contains memories, e.g. for  tare weights, weighing data, item data,  PLU etc.Data interface RS-232: To connect the balance to a printer, PC or networkPiece counting: Reference quantities selectable. Display can be switched from piece to weight.Totalising level A: The weights of similar items can be added together and the total can be printed out.Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.IP 67 protection in accordance with DIN EN 60529:
Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.
