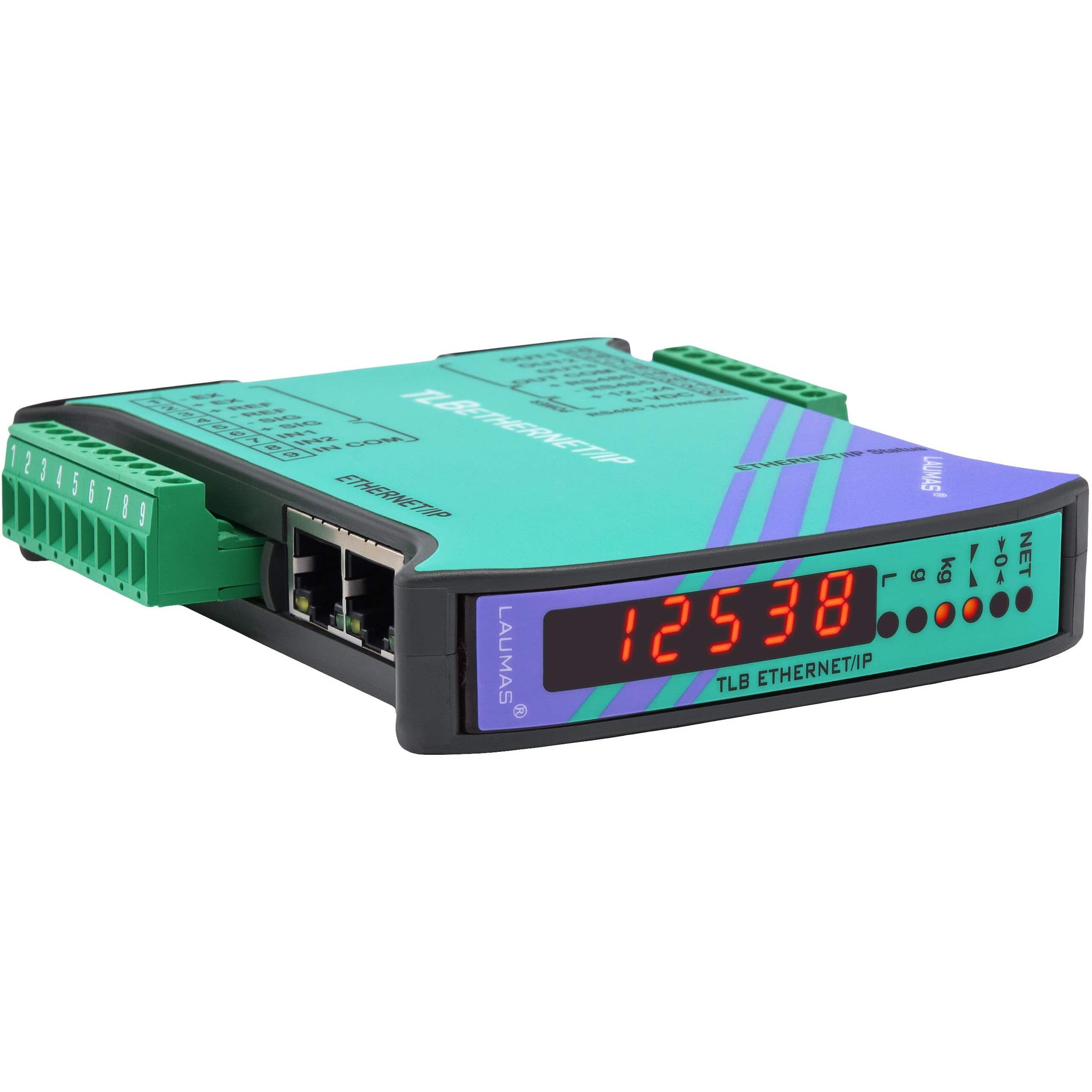

Laumas TLB EtherNet/IP Weight Transmitter

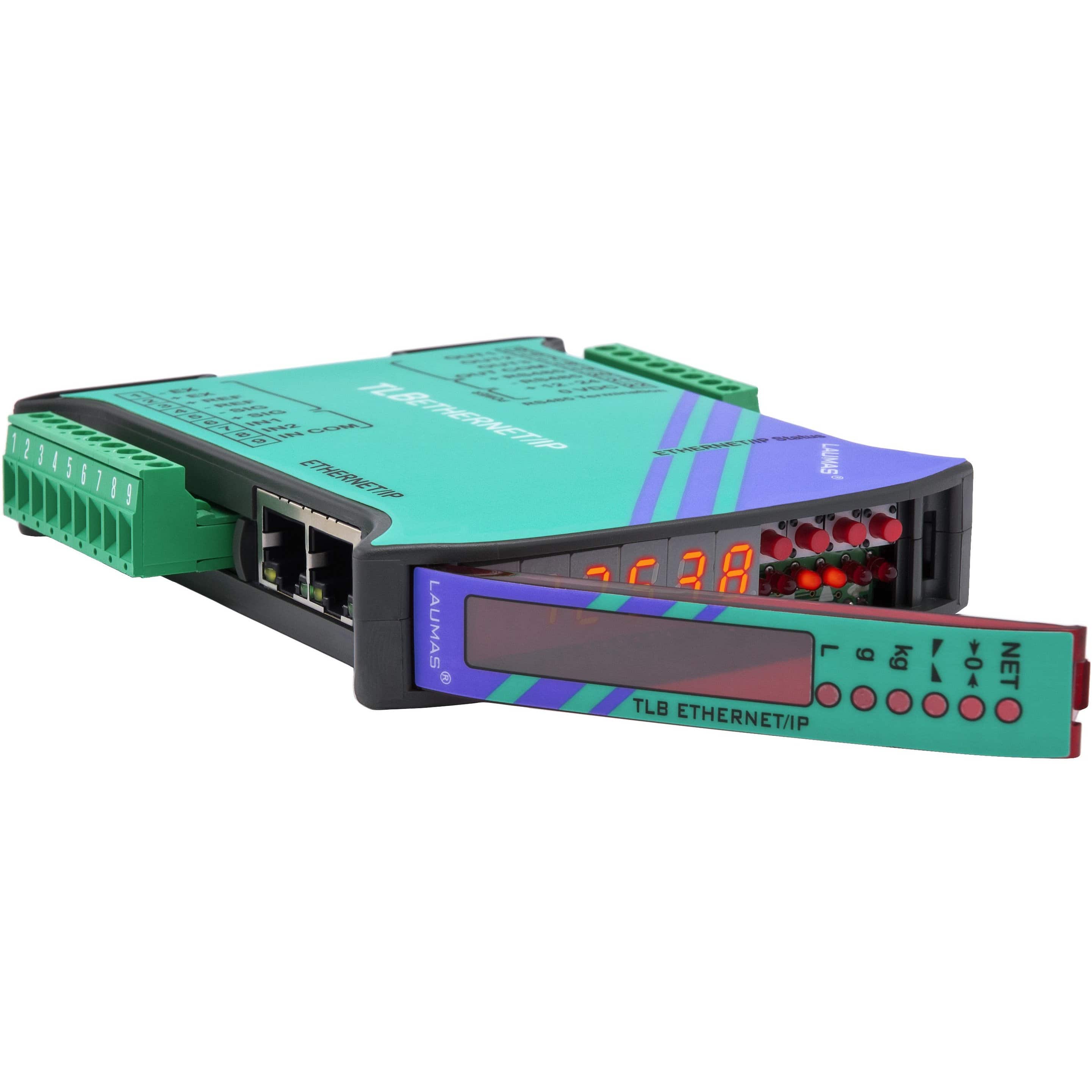

Alternative view of the Laumas TLB EtherNet/IP Weight Transmitter

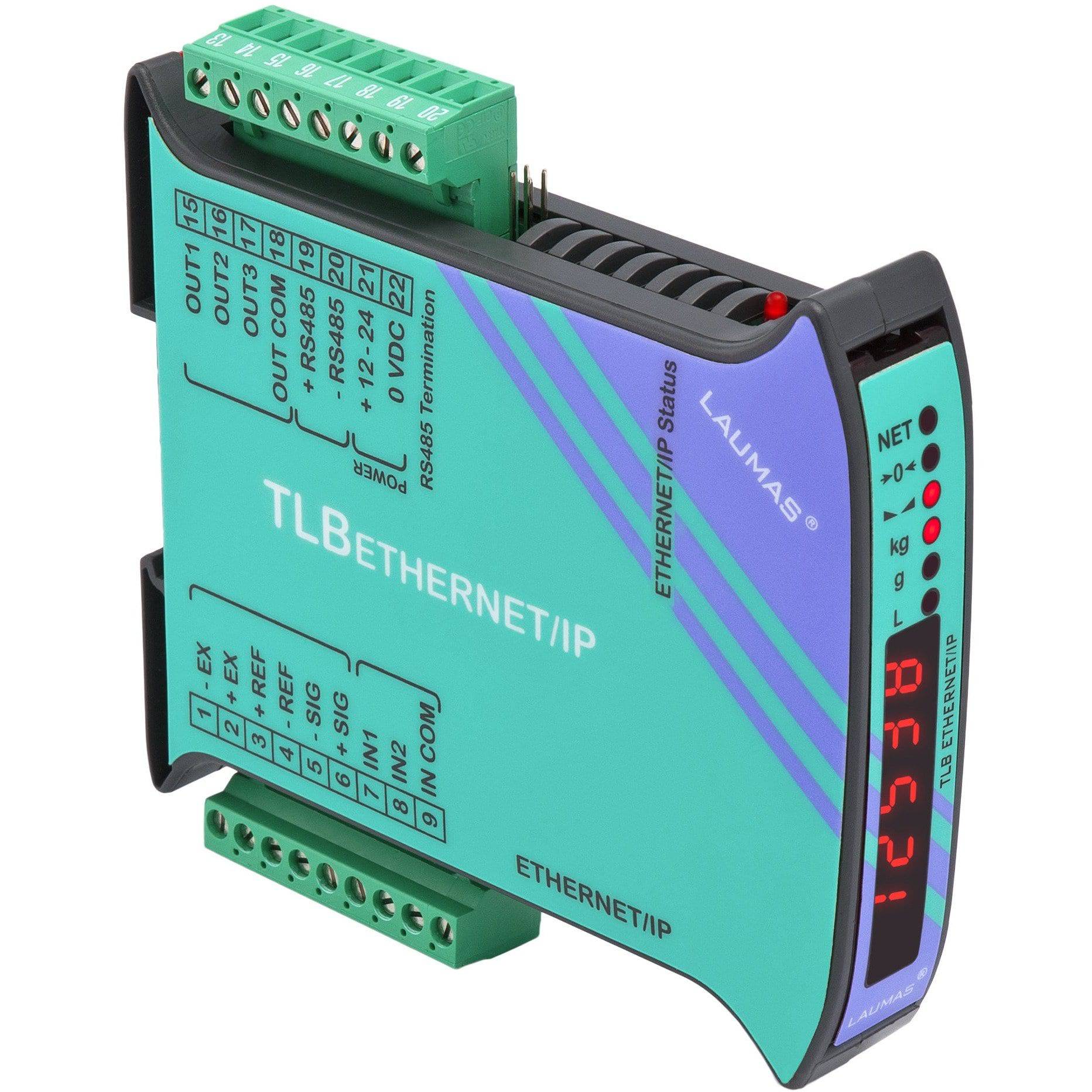

Laumas TLB EtherNet/IP Weight Transmitter connection and mounting detail
Laumas

TLB EtherNet/IP Weight Transmitter

Laumas TLB EtherNet/IP weight transmitter

Designed for one load-cell weighing point, the Laumas TLB EtherNet/IP brings weight data into the control panel without the need for a separate indicator. This version uses EtherNet/IP communication for PLC-based systems where weighing data must sit directly on the industrial Ethernet network.

DIN-rail mounting keeps panel installation tidy. Alongside the main interface, relay outputs and digital inputs are available for local control duties, with RS485 provided for setup.

Check that the load-cell signal, supply voltage and EtherNet/IP interface match the rest of the system.

Model: TLBETHEIPN

Model
Sale price£458.00

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

View Technical Data Sheet (PDF)

Learn More

Technical Specification

Output
2 x Ethernet/IP ports
Input Range
±39 mV
Number Of Load Cells
1
Excitation Voltage
5 VDC / 120 mA
Accuracy
<0.01% full scale
Digital Inputs
2 x 5 to 24 VDC PNP
Relay Outputs
3 x 115 VAC / 150 mA (max)
Mounting
DIN Rail
Serial Connection
RS485
Analogue / Digital Converter
24 bit (16000000 points) - 4.8 kHz
OIML Certification
OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

PLC-controlled machinery

Suited to equipment where EtherNet/IP is already used for machine communications.

Single-point weighing

For tanks, hoppers, filling equipment and platforms using one load-cell signal.

PLC Based Process Control

Provides weighing data to PLC-controlled production and process systems.

Machine Builder Integration

Ideal for machine builders integrating weighing functions into industrial equipment.

Features

EtherNet/IP connection

Makes weighing data available to compatible PLCs over an industrial Ethernet network.

Compact DIN-rail format

Keeps a single-channel weighing interface neat inside an OEM or plant control panel.

Industrial Network Communications

Supports communication between weighing equipment and automation infrastructure.

Process Control Connectivity

Supports seamless transfer of weighing data into production and automation systems.
