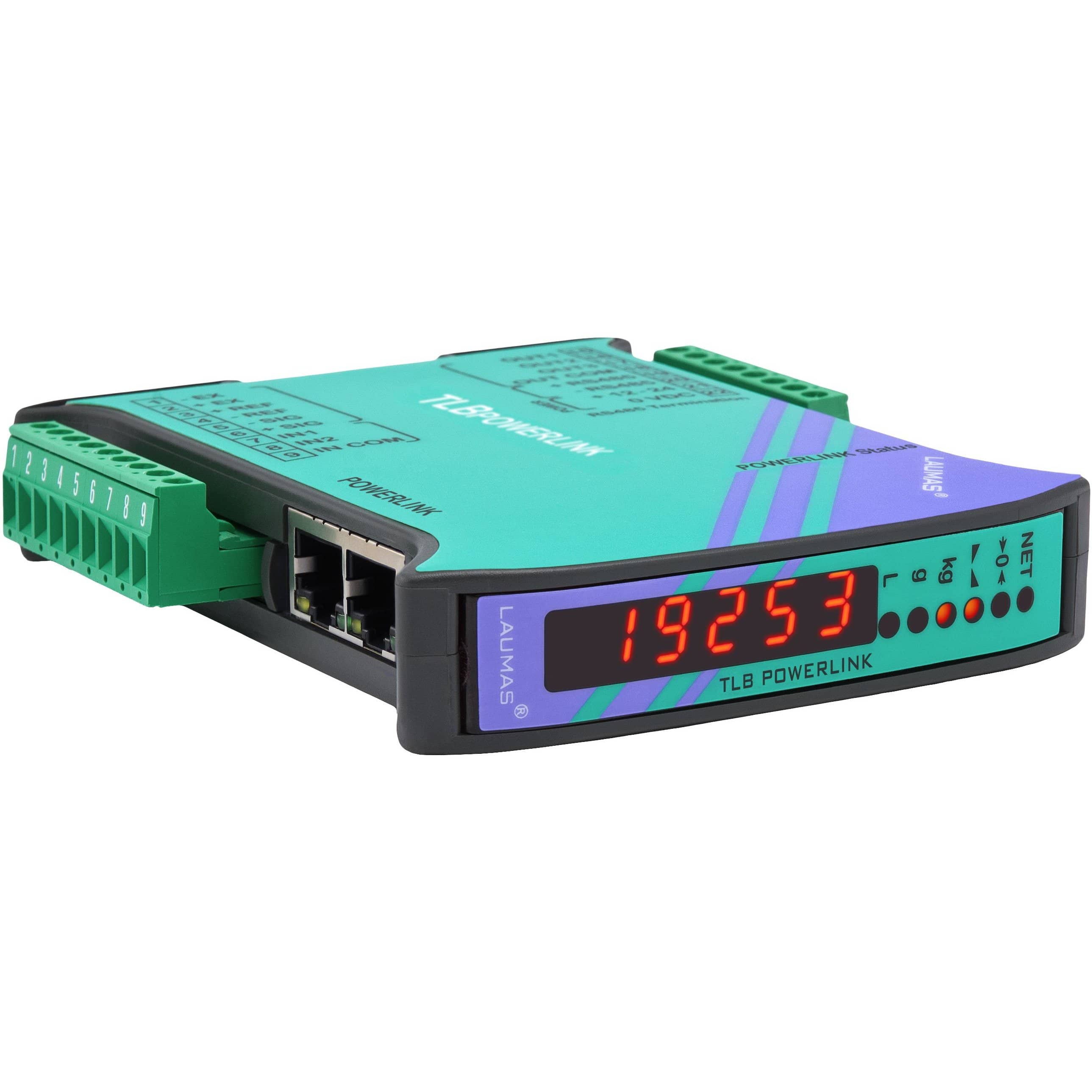

Real-Time Weight Transmitter with POWERLINK Interface

The Laumas TLB POWERLINK Weight Transmitter offers high-speed, real-time weight data transmission for advanced industrial automation environments. Designed for mounting on DIN rails, this compact device supports a single load cell (4- or 6-wire), making it ideal for PLC integration via POWERLINK networks.

Engineered for reliability and performance, it features a fast acquisition rate, robust signal filtering, and diagnostic feedback to meet modern automation demands.

Key Features

• POWERLINK Communication: Supports deterministic data transfer in Ethernet-based automation systems
• Load Cell Compatibility: 1 × 350 Ω load cell (4- or 6-wire)
• High-Speed Readings: Up to 2400 measurements/second for dynamic applications
• Compact Installation: DIN rail mountable ABS housing
• Easy Calibration: Via known weights or theoretical calibration values (mV/V)
• Status Monitoring: Diagnostic LEDs and software tools for live signal monitoring

Technical Specifications

• Power Supply: 12–24 VDC ±10%
• Input Sensitivity: ±39 mV max
• Excitation Voltage: 5 VDC (max 120 mA)
• Communication Output: POWERLINK (industrial Ethernet)
• Resolution: Up to ±50,000 divisions with internal A/D conversion
• Operating Temperature: -10 °C to +40 °C
• Mounting Type: DIN rail
