TLM8 EtherNet/IP Weight Transmitter

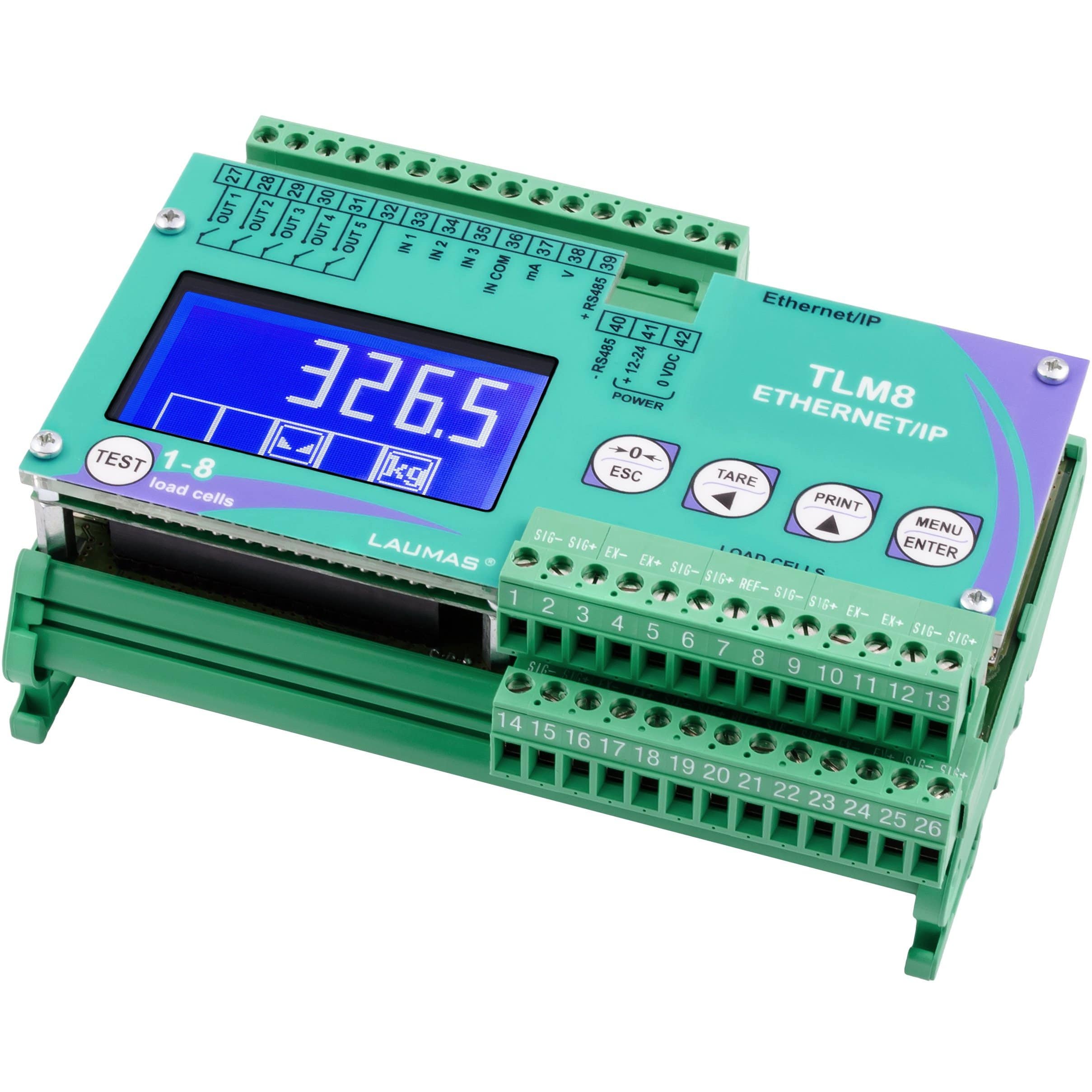

Laumas TLM8 EtherNet/IP weight transmitter

Large multi-cell weighing systems are easier to set up and maintain when each input can be checked separately. The Laumas TLM8 EtherNet/IP handles eight channels and uses digital equalisation to balance the connected load cells.

It accommodates as many as sixteen 350 Ω load cells across the eight channels and is equipped with an EtherNet/IP interface for PLC-based industrial Ethernet systems.

An RS485 connection is available for setup and secondary communication. Match the channel layout, load-cell quantity and EtherNet/IP interface to the proposed control system.

Model: TLM8ETHEIP

Quantity:

£595.00

View Technical Data Sheet (PDF)

Laumas TLM8 EtherNet/IP Weight Transmitter

£595.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

2x Ethernet/IP ports

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

Up to 16 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 3, 5 to 24 VDC PNP

Relay Outputs

Qty 5, max 115 VAC/150 mA

A/D Converter

8 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2 uV/VSI

Learn more

Applications

PLC-controlled machinery

Suited to equipment where EtherNet/IP is already used for machine communications.

Large vessel weighing

For silos, tanks, hoppers and platforms that need several load-cell channels.

Industrial Weighing Automation

Supports advanced weighing automation with detailed load cell monitoring.

Weighbridge Monitoring

Suitable for weighbridges and large multi-load-cell structures requiring load distribution analysis.

Features

EtherNet/IP connection

Makes weighing data available to compatible PLCs over an industrial Ethernet network.

Eight-channel monitoring

Shows individual channel information for load distribution checks, setup and quicker sensor diagnosis.

Advanced Diagnostic Functions

Provides advanced diagnostics including load cell status and weighing system health monitoring.

Remote System Supervision

Supports remote supervision, commissioning and monitoring of complex weighing installations.

FAQs

Why specify the TLM8 with EtherNet/IP?

It provides eight-channel load-cell monitoring while communicating with the automation system through EtherNet/IP.

Can EtherNet/IP monitor load balance across vessels?

Yes, EtherNet/IP TLM8 models can monitor load distribution across multiple supports.

Where are EtherNet/IP TLM8 systems commonly installed?

EtherNet/IP TLM8 systems are often installed on tanks, silos and vessels.

Why choose EtherNet/IP for large weighing installations?

EtherNet/IP enables large weighing systems to communicate directly with PLC platforms.
