Laumas ALL Single Point Load Cell
7700
Laumas ALL Single Point Load Cell
7700

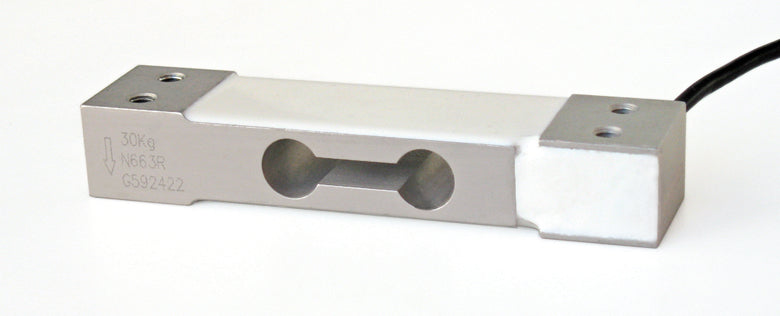

High-precision aluminium single point load cell for compact industrial and commercial scales
The Laumas ALL Series is a compact single point load cell designed for small platform and bench-scale weighing. Manufactured from anodised aluminium and protected to IP65, it offers stable and accurate performance for low-capacity weighing. Certified to OIML R60 C3, the ALL is suitable for legal-for-trade applications, with optional certifications available for use in hazardous environments.
Key Features
- High Accuracy: OIML R60 C3 certified
- Capacity Range: 3 kg, 6 kg, 15 kg, 30 kg, 50 kg
- Material: Anodised aluminium alloy
- Protection Rating: IP65 – resistant to dust and light water ingress
- Platform Compatibility: Suitable for compact scales and bench platforms
- Output Signal: 2 mV/V ±10%
- Cable: 4-wire shielded cable, 1.5 m length
- Certifications: CE, UKCA, EAC, and UK Legal for Trade
Available Models
| Model | Capacity (kg) |
|---|---|
| ALL3 | 3 kg |
| ALL6 | 6 kg |
| ALL15 | 15 kg |
| ALL30 | 30 kg |
| ALL50 | 50 kg |
Certifications on Request
- ATEX II 1G 2D – suitable for explosive zones 0/1/2 (gas) and 21/22 (dust)
- IECEx – international hazardous area certification
- OIML R60 C4 / C5 – higher precision options available
- EAC Ex – available for explosive atmospheres in Eurasian regions
- Ex NEPSI – for explosive zone use in China
- NTEP – certified for legal-for-trade use in the US
