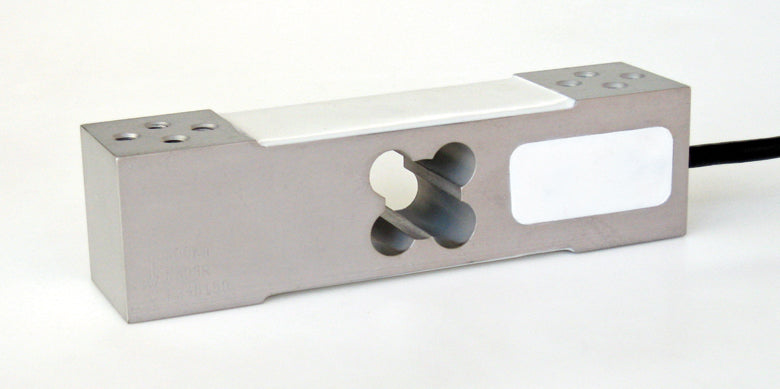

Laumas AM Single Point Load Cell
8800
Laumas AM Single Point Load Cell
8800
Medium-capacity single point load cell for industrial platform and bench-scale systems
The Laumas AM Series is a robust single point load cell ideal for mid-range platform weighing applications. Constructed from anodised aluminium and rated to IP65, it delivers stable, accurate performance. Certified to OIML R60 C3 and available with optional hazardous-area and legal-trade certifications, the AM load cell is suited for demanding environments.
Key Features
- High Accuracy: OIML R60 C3 certified
- Capacity Range: 60 kg, 100 kg, 150 kg, 200 kg, 300 kg
- Material: Anodised aluminium alloy
- Protection Rating: IP65 – dust-tight and water spray resistant
- Platform Compatibility: Ideal for medium-sized platform scales
- Output Signal: 2 mV/V ±10%
- Cable: 4-wire shielded, 1.5 m included
- Certifications: CE, UKCA, EAC, and UK Legal for Trade
Available Models
| Model | Capacity (kg) |
|---|---|
| AM60 | 60 kg |
| AM100 | 100 kg |
| AM150 | 150 kg |
| AM200 | 200 kg |
| AM300 | 300 kg |
Certifications on Request
- ATEX II 1G 2D – compliant with zones 0/1/2 (gas) and 21/22 (dust)
- IECEx – global certification for explosive environments
- OIML R60 C4 / C5 – for advanced accuracy applications
- EAC Ex – certification for explosive zones in the Eurasian region
- Ex NEPSI – for the Chinese market in explosive zones
- NTEP – for legal-for-trade applications in the US
