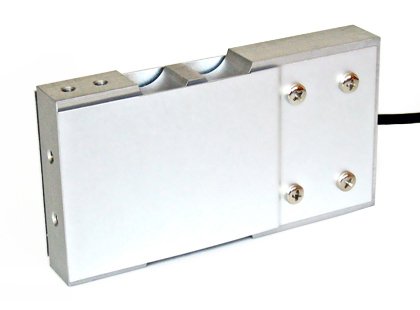

Laumas AU Single Point Load Cell
9900
Laumas AU Single Point Load Cell
9900
Low-capacity single point load cell for compact platforms and precision bench scales
The Laumas AU Series is a compact single point load cell ideal for low-capacity weighing in retail, medical, and laboratory environments. Made from anodised aluminium and sealed to IP65, it delivers stable and repeatable performance. Designed for small platform scales up to 300 × 350 mm, with OIML R60 C3 certification for trade use. Optional certifications are available for use in regulated and hazardous zones.
Key Features
- High Accuracy: OIML R60 C3 certified
- Capacity Range: 3 kg, 6 kg, 15 kg, 30 kg, 50 kg
- Material: Anodised aluminium alloy
- Protection Rating: IP65 – sealed against dust and water spray
- Recommended Platform Size: Up to 300 × 350 mm
- Output Signal: 2 mV/V ±10%
- Cable: 4-wire shielded, 1.5 m included
- Certifications: CE, UKCA, EAC, and UK Legal for Trade
Available Models
| Model | Capacity (kg) |
|---|---|
| AU3 | 3 kg |
| AU6 | 6 kg |
| AU15 | 15 kg |
| AU30 | 30 kg |
| AU50 | 50 kg |
Certifications on Request
- ATEX II 1G 2D – compliant with zones 0/1/2 (gas) and 21/22 (dust)
- IECEx – international certification for explosive atmospheres
- OIML R60 C4 / C5 – enhanced precision options available
- EAC Ex – for regulated hazardous use in Eurasia
- Ex NEPSI – for Chinese explosion-proof applications
- NTEP – legal-for-trade approval in the US
