Kern UIB floor scales with capacities from 600 kg to 3000 kg. Kern UIB floor scales are in a pallet weighing form with steel load support rated to IP67. They are available with an optional calibration certificate and a range of accessories.

  • High mobility: thanks to battery operation, compact, lightweight construction, it is suitable for the use in several locations
  • Load support: steel, powder coated, 4 silicone-coated aluminium load cells, protection against dust and water splashes IP67

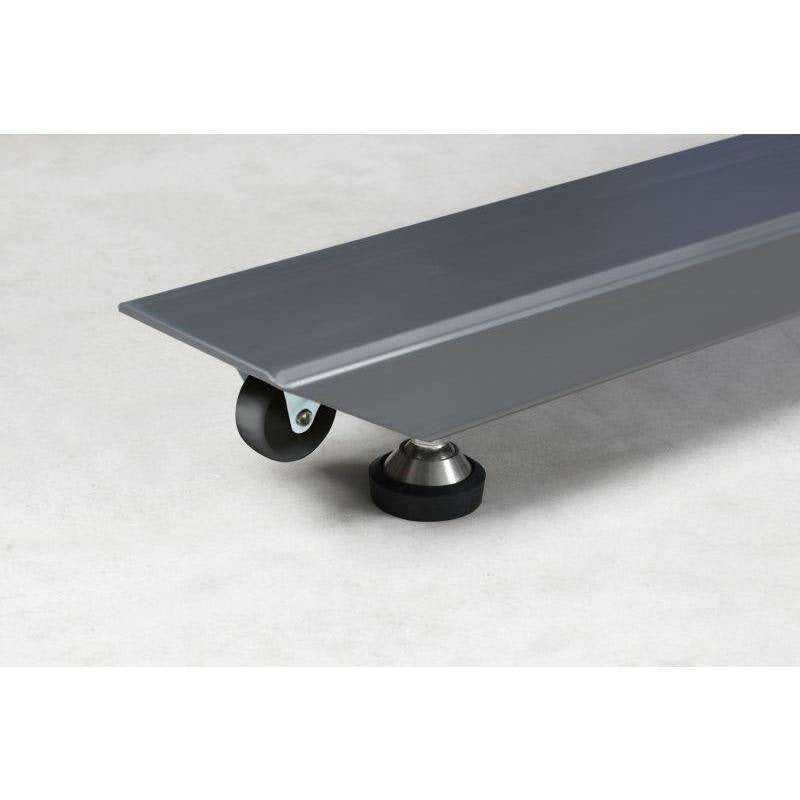

  • The scale can be easily transported using rollers and a handle and does not require much storage space
  • Totalising of weights and piece counts
  • Protective working cover included with delivery

  • Our large, heavy KERN floor scales are sent in a sturdy wooden crate, to ensure safe transportation and protection of the measuring equipment
Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)

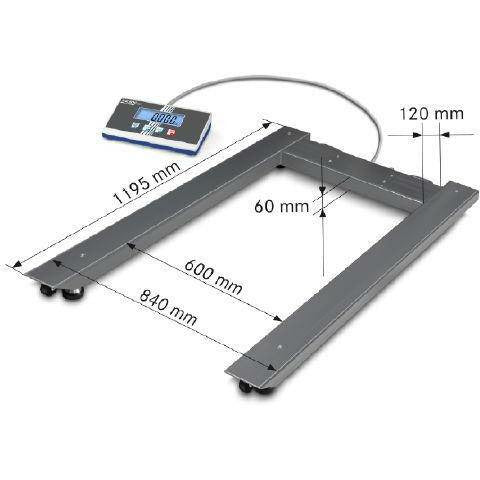

UIB 1.5T-4 1500 kg 500 g 1195  mm x 840  mm
UIB 3T-3 3000 kg 1 kg 1195  mm x 840  mm
UIB 600K-1 600 kg 200 g 1195  mm x 840  mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.IP 67 protection in accordance with DIN EN 60529:
Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.Battery operation: The battery type is specified for each device.Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USAStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Kern UIB Floor Scales
