Calibration Equipment

Pressure calibration pumps, digital reference gauges and manifolds for checking pressure gauges, transmitters, switches and sensors in workshops, laboratories and on site.

Pressure Generation Equipment

Digital Reference Gauges

Calibration Manifolds & Accessories

Collection

11 products

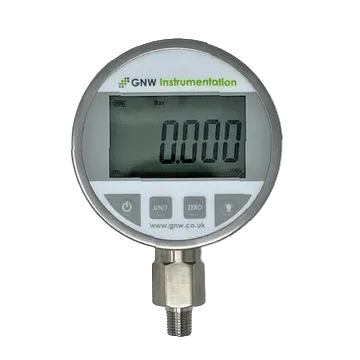

GNW200-ABS 100mm Absolute Digital Pressure Gauge

£176.00

Pressure gauge with digital display and case on a white background

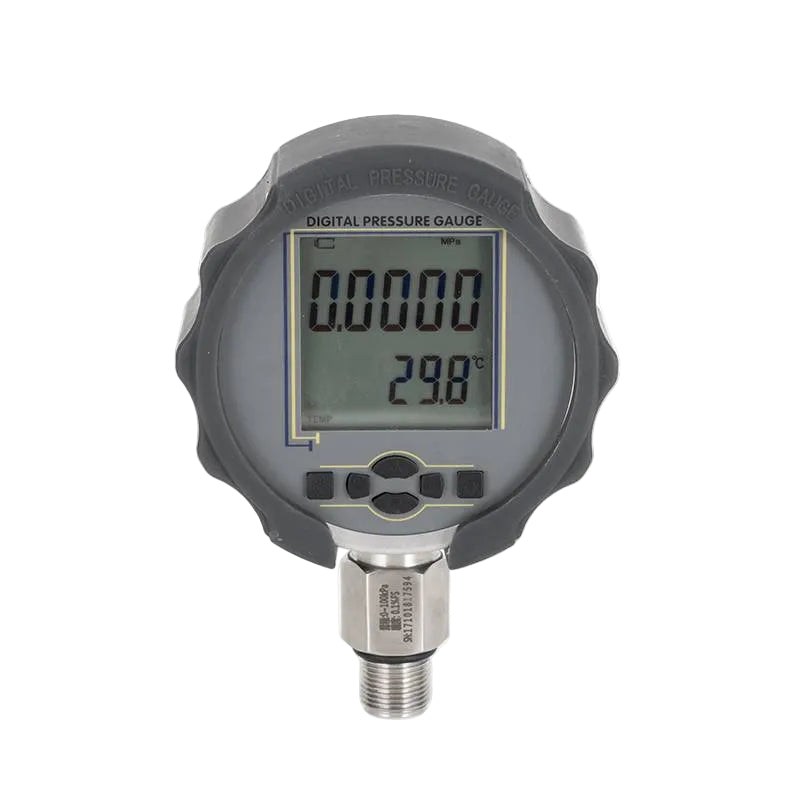

GNW210 Digital Reference Pressure Gauge

£645.00

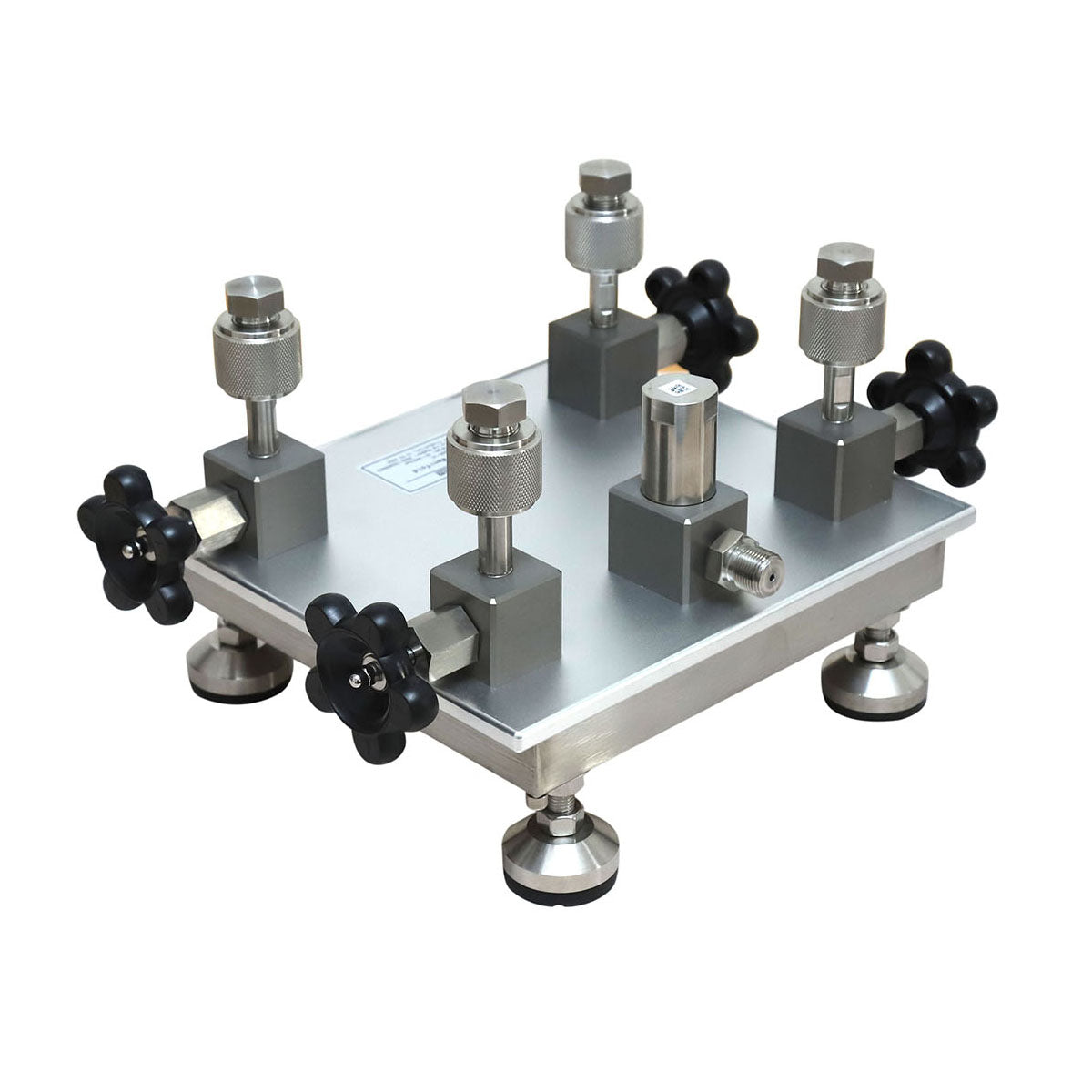

GNW2000 4-Way Pressure Calibration Manifold

£1,735.00

214L Hydraulic Test Pump – 0 to 700 bar

£1,685.00

213E and 214E pneumatic pressure calibration pump

214E High-Pressure Pneumatic Test Pump – -0.95 to 200 bar

£2,363.00

213H Pneumatic Test Pump – -0.95 to 40 bar

£1,235.00

213E70 Pneumatic Test Pump – -0.95 to 70 bar

£1,715.00

213E100 Pneumatic Test Pump – -0.95 to 100 bar

£1,820.00

213C Pneumatic test pump close-up details

213C Low-Pressure Pneumatic Test Pump – -0.7 to 1 bar

£997.00

213B Low-Pressure Pneumatic Test Pump – -0.95 to 6 bar

£1,045.00

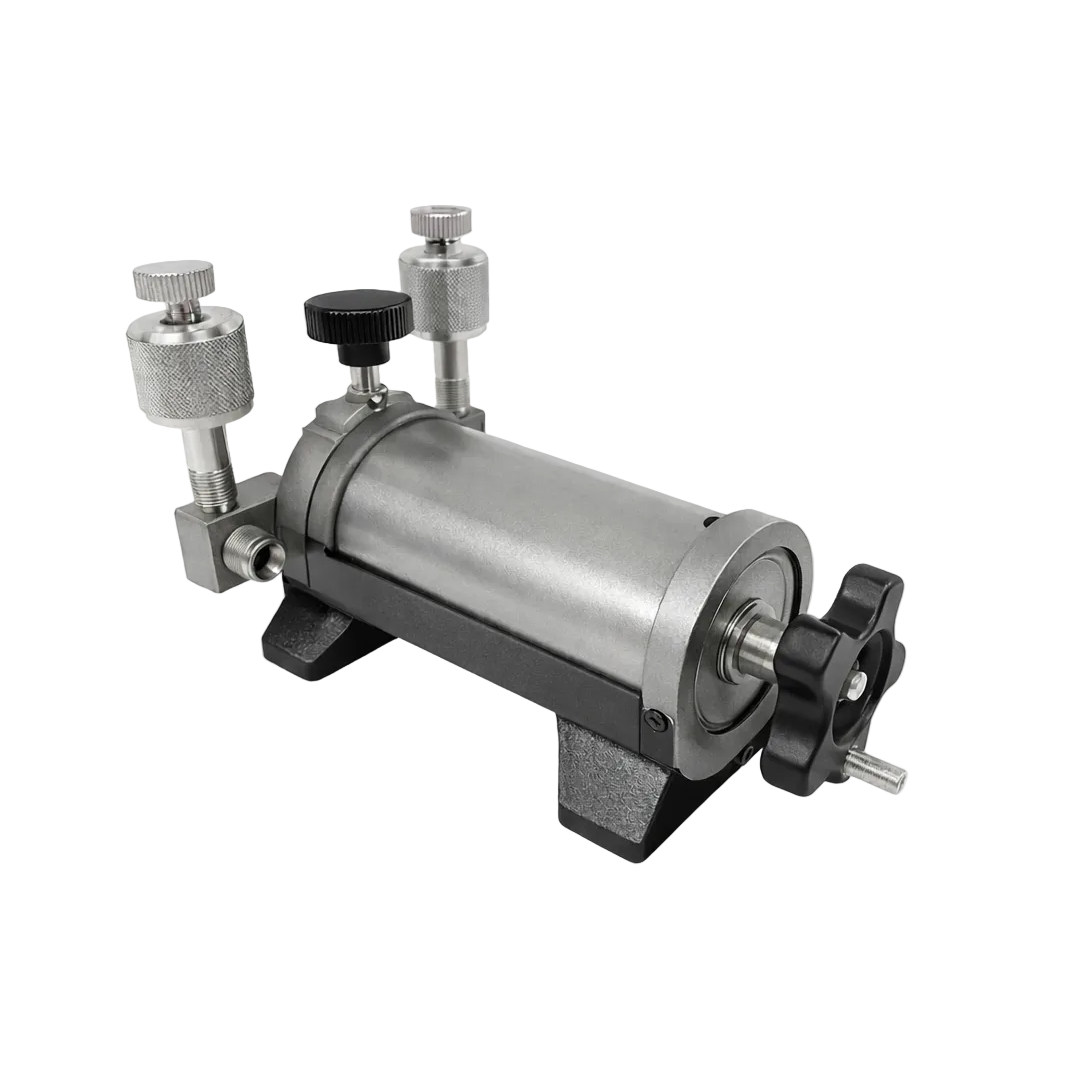

212C Low-Pressure Pneumatic Test Pump – -0.5 to 0.5 bar

£850.00

Pressure calibration equipment explained

A pressure comparison setup normally consists of a pressure source, a reference instrument and the fittings needed to connect the device under test. Pneumatic pumps use air and avoid introducing liquid into the system, while hydraulic pumps are used where higher pressures or liquid media are required.

The reference gauge should cover the required test points and provide sufficient accuracy for the procedure. Its calibration status, resolution and measurement uncertainty matter just as much as the pump range.

Connection threads, hose ratings, seals and wetted materials must all suit the pressure and medium. Never exceed the rating of the lowest-rated component in the test arrangement.

Traceable work also requires a calibrated reference, a controlled method, competent personnel and recorded results. The equipment enables the comparison; it does not create traceability by itself.

Understanding pressure calibration equipment

A pressure comparison system uses a controllable pneumatic or hydraulic source to apply pressure to both a reference instrument and the device under test. The reference must have suitable range, accuracy and calibration status for the work being carried out.

Choose the pressure medium, fittings and hose ratings carefully. Traceability depends on the calibrated reference, procedure, personnel and records—not on the pump or manifold alone.

Pressure generation

Choose a pneumatic pump for clean air systems or a suitable hydraulic pump when higher pressure or liquid media are required.

Digital reference gauges

Match the reference range and accuracy to the instruments and test points included in your procedure.

Manifolds and connections

Use correctly rated manifolds, hoses, seals and adaptors that suit the selected pressure medium and connection threads.

Learn more

Typical pressure calibration tasks

Use this equipment to apply, compare and record pressure during controlled checks of compatible instruments.

Pressure gauges

Compare analogue or digital gauge readings with a calibrated pressure reference at defined test points.

Transmitters and switches

Apply controlled pressure to observe transmitter output or record pressure-switch operating and reset points.

Workshop and field checks

Select portable or bench equipment according to the pressure range, environment and frequency of use.

How to choose calibration equipment

Selecting the correct calibration equipment depends on instrument type, required accuracy and operating environment.

Consider the required accuracy level

Reference standards should provide significantly higher accuracy than the instruments being verified.

Review pressure range or measurement range

Calibration equipment should comfortably cover the full operating range of the instruments under test.

Evaluate portability and workshop requirements

Portable systems are useful for field service work, while workshop systems may provide greater stability and functionality.

Check traceability and certification requirements

Many industrial and ISO-controlled environments require traceable calibration standards and documented verification procedures.

Calibration Equipment FAQs

Calibration equipment is widely used throughout industrial, laboratory and maintenance environments to maintain accurate measurement performance and support quality procedures. Below are answers to some common questions relating to professional calibration equipment.

What is calibration equipment used for?

Calibration equipment is used to verify, compare and maintain the accuracy of industrial measuring instruments and test equipment.

What is a pressure calibration system?

A pressure calibration system combines pressure generation equipment and a reference standard to verify pressure instruments accurately.

Why is calibration important?

Regular calibration helps maintain measurement accuracy, support quality systems and reduce the risk of inaccurate process measurements.

What does traceable calibration mean?

Traceable calibration means the reference standard used can be linked through documented comparisons to recognised national or international standards.
