Low Profile Compression Load Cell – 200 kg to 2,500 kg Capacity

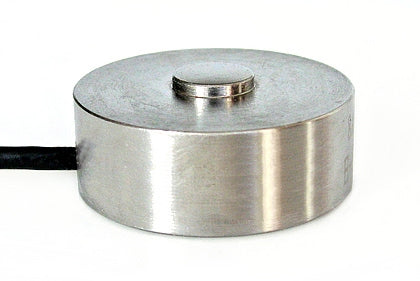

The Laumas CK Series is a compact low-profile compression load cell built from 17-4 PH stainless steel for industrial force measurement in restricted spaces. Designed for OEM and automation systems, it offers a combined error of ≤ ±0.5%, IP67 protection, and a compact cylindrical form. Ideal for press fitting, small tank weighing, and mechanical assembly systems where space and precision matter.
Key Features
-
Space-Saving Design: Ultra-compact cylindrical format for integration in tight or embedded spaces
-
Material: 17-4 PH stainless steel for corrosion resistance and industrial-grade durability
-
Accuracy: Combined error ≤ ±0.5% with a stable 1 mV/V ±15% output signal
-
Protection Class: IP67 – dust-tight and protected against high-pressure water jets
-
Rated Capacities: Available in 200 kg, 500 kg, 1,000 kg, and 2,500 kg models
-
Temperature Range: Operating -20 °C to +70 °C; compensated from -10 °C to +50 °C
-
Safe Overload: 120% of full scale; 200% ultimate overload resistance
-
Cable: 5 m length, Ø3 mm with 4-core × 0.25 mm² configuration
-
Certifications: CE marked, UKCA marked, and compliant with OIML R60 standards
Available Models
Model |
Capacity (kg) |
CK200 |
200 kg |
CK500 |
500 kg |
CK1000 |
1,000 kg |
CK2500 |
2,500 kg |
Certifications on Request
- ATEX II 1G 2D – certified for explosive gas and dust zones (0/1/2/21/22)
- IECEx – international compliance for use in hazardous locations
- LAT Accredia – ISO 376 / ASTM E74 calibration certificates from 1,000 kg to 10,000 kg
- Calibration Report – available upon request
- EAC Ex & NEPSI – compliant with Eurasian and Chinese explosive zone regulations
