TLB4 EtherCAT Weight Transmitter

TLB4 EtherCAT Weight Transmitter Overview

The Laumas TLB4 EtherCAT Weight Transmitter combines 4-channel load cell management with EtherCAT communication for high-speed automation systems. It provides digital equalisation, diagnostics and load distribution monitoring for accurate process weighing.

This transmitter is suited to machinery, batching systems and industrial weighing installations requiring fast and reliable EtherCAT network integration.

Model: TLB4ETHERCAT

Quantity:

£529.00

View Technical Data Sheet (PDF)

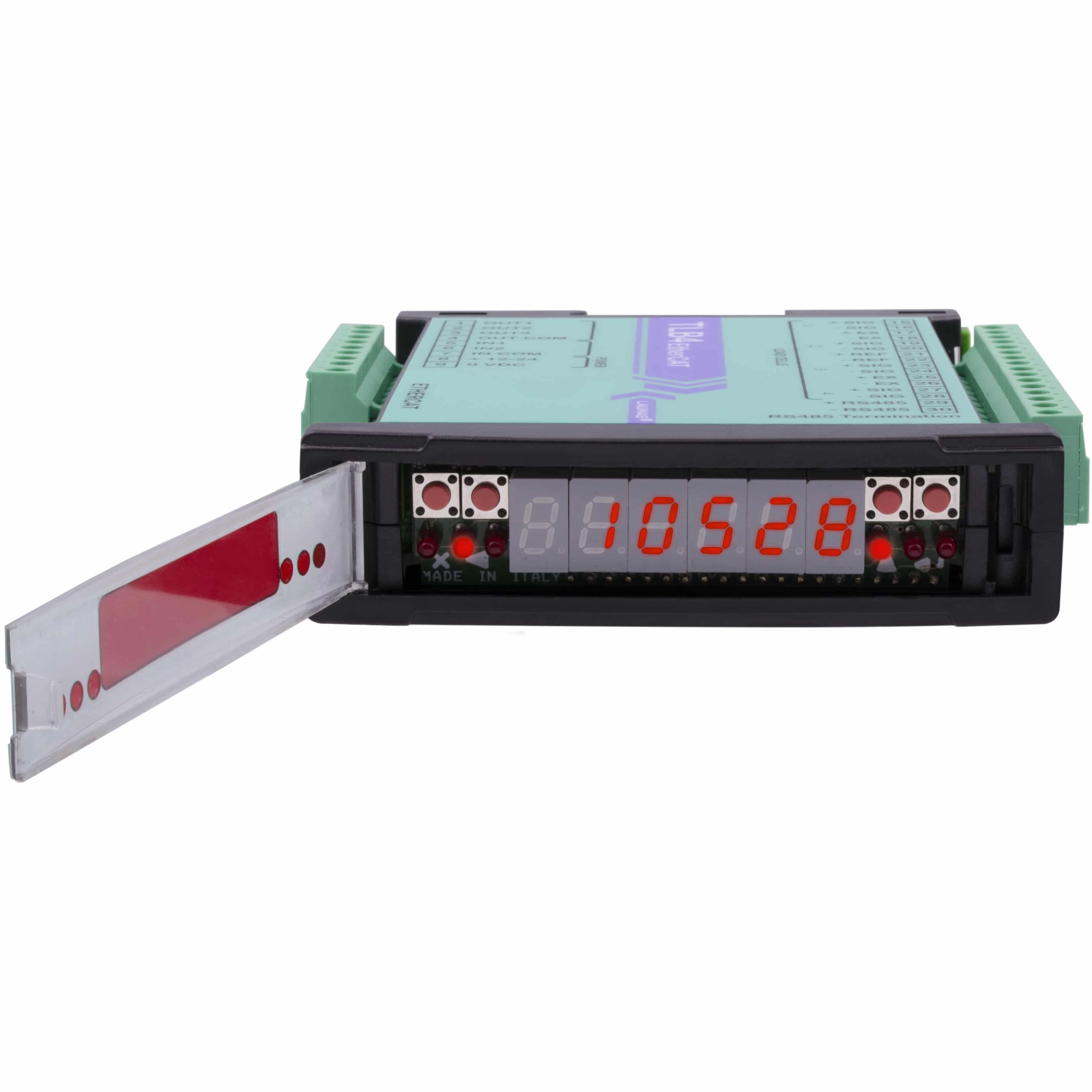

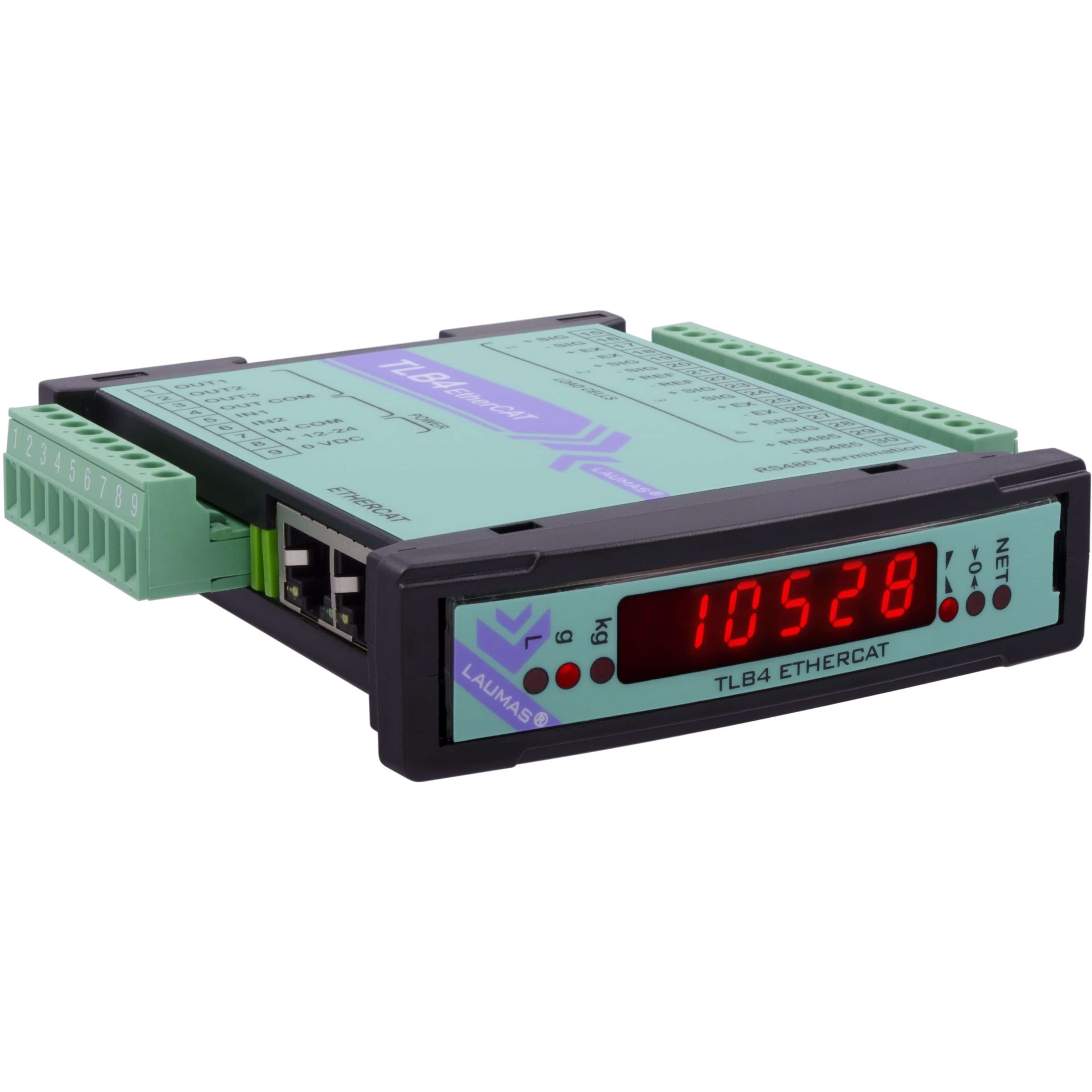

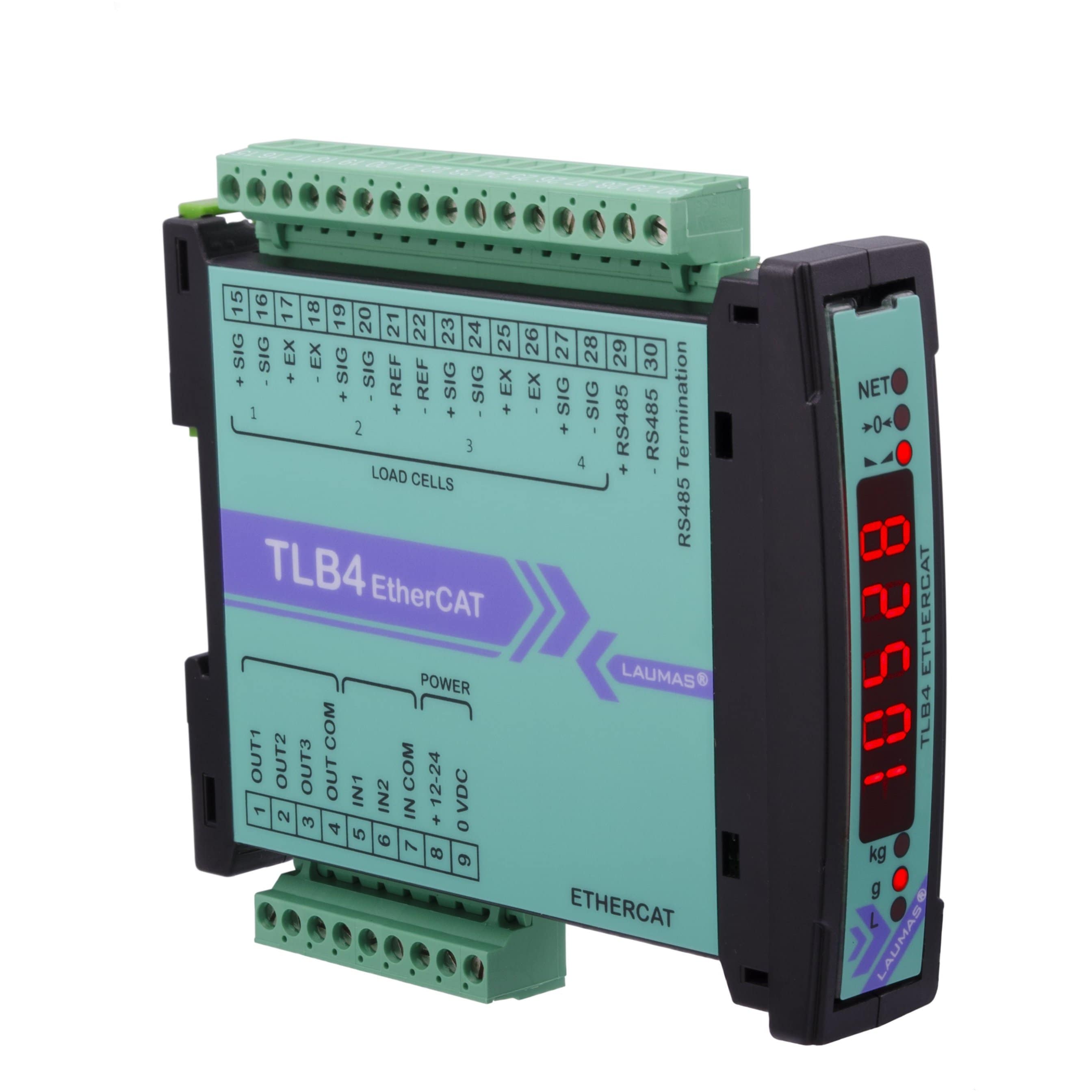

Laumas TLB4 EtherCAT Weight Transmitter

£529.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output

2x EtherCAT ports

Secondary Communication

RS485 port (Modbus RTU/Laumas ASCII protocol)

Power Supply

12–24 VDC ±10%

Load Cell Input

1 (350 R) - 4/6 wires. 5 VDC/240 mA

Measuring Range

±39 mV

Accuracy

±0.01% of full scale

Digital Inputs

Qty 2, 5 to 24 VDC PNP

Relay Outputs

Qty 3, max 115 VAC/150 mA

A/D Converter

1 channels - 24 bit (16000000 points) - 4.8 kHz

Mounting

DIN rail installation

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

Tank Weighing Systems

Ideal for tank weighing systems integrated into EtherCAT control platforms.

Hopper & Silo Weighing

Provides accurate weighing and diagnostics for hopper and silo applications.

Industrial Process Automation

Supports automated weighing processes through direct integration with industrial control systems.

Load Cell Diagnostics

Provides diagnostics and performance monitoring for individual load cells within the weighing system.

Features

Industrial Ethernet Integration

Provides high-speed integration with EtherCAT-based automation and machine control systems.

Digital Load Cell Equalisation

Allows individual load cell balancing through software rather than mechanical adjustment.

Integrated Diagnostics

Provides diagnostics for individual load cells, wiring faults and weighing system performance.

PLC Ready Weighing Integration

Designed for direct integration with PLC-controlled weighing and process automation systems.

FAQs

Why use EtherCAT for industrial weighing?

EtherCAT provides high-speed deterministic communication for industrial automation applications.

Does EtherCAT support real-time weighing data?

Yes, EtherCAT supports fast transmission of weighing and diagnostic data.

What industries use EtherCAT weighing modules?

EtherCAT modules are frequently used in advanced machine automation projects.

Why choose EtherCAT for industrial weighing?

EtherCAT provides high-speed deterministic communication for demanding automation applications.
