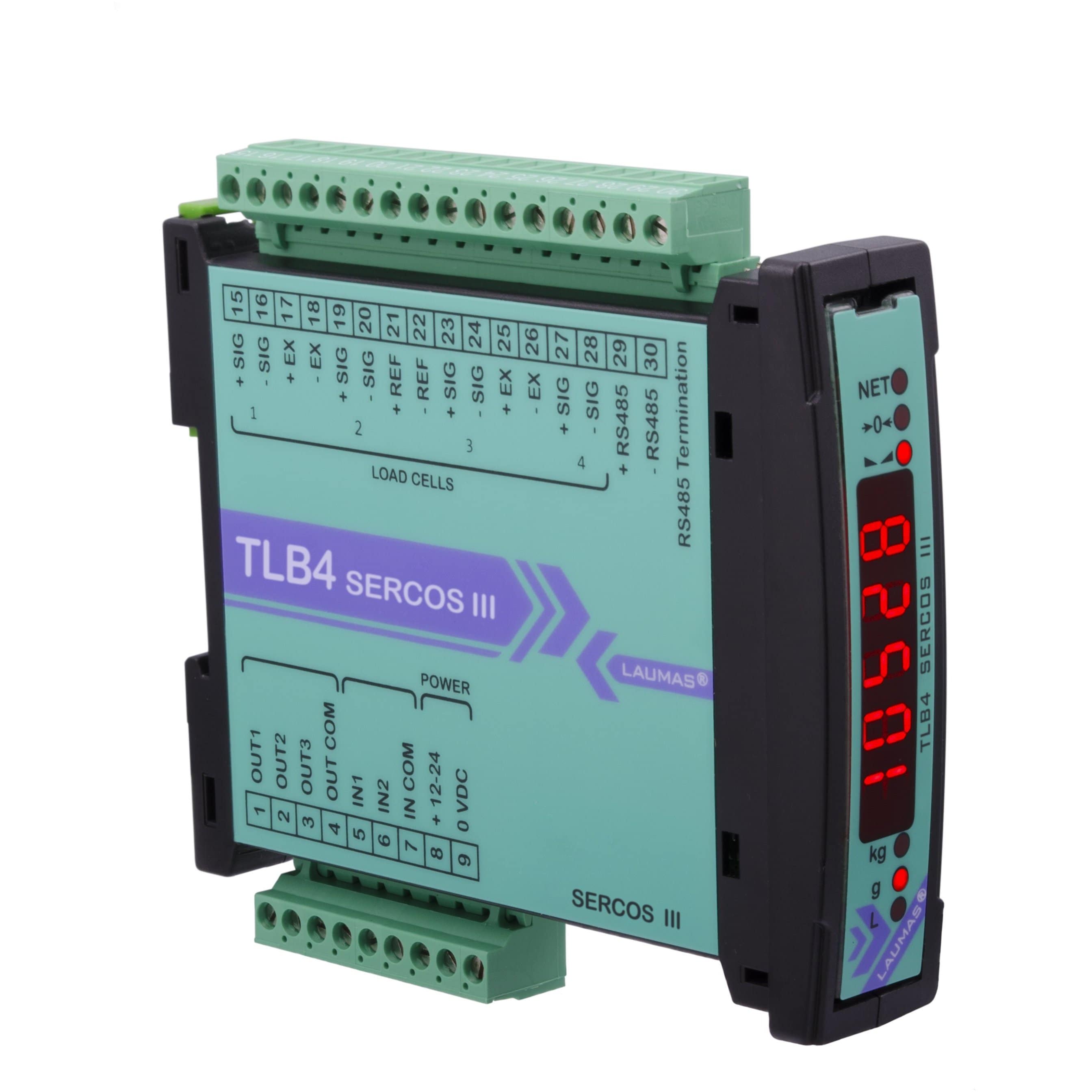

Laumas TLB4 SERCOS III Weight Transmitter

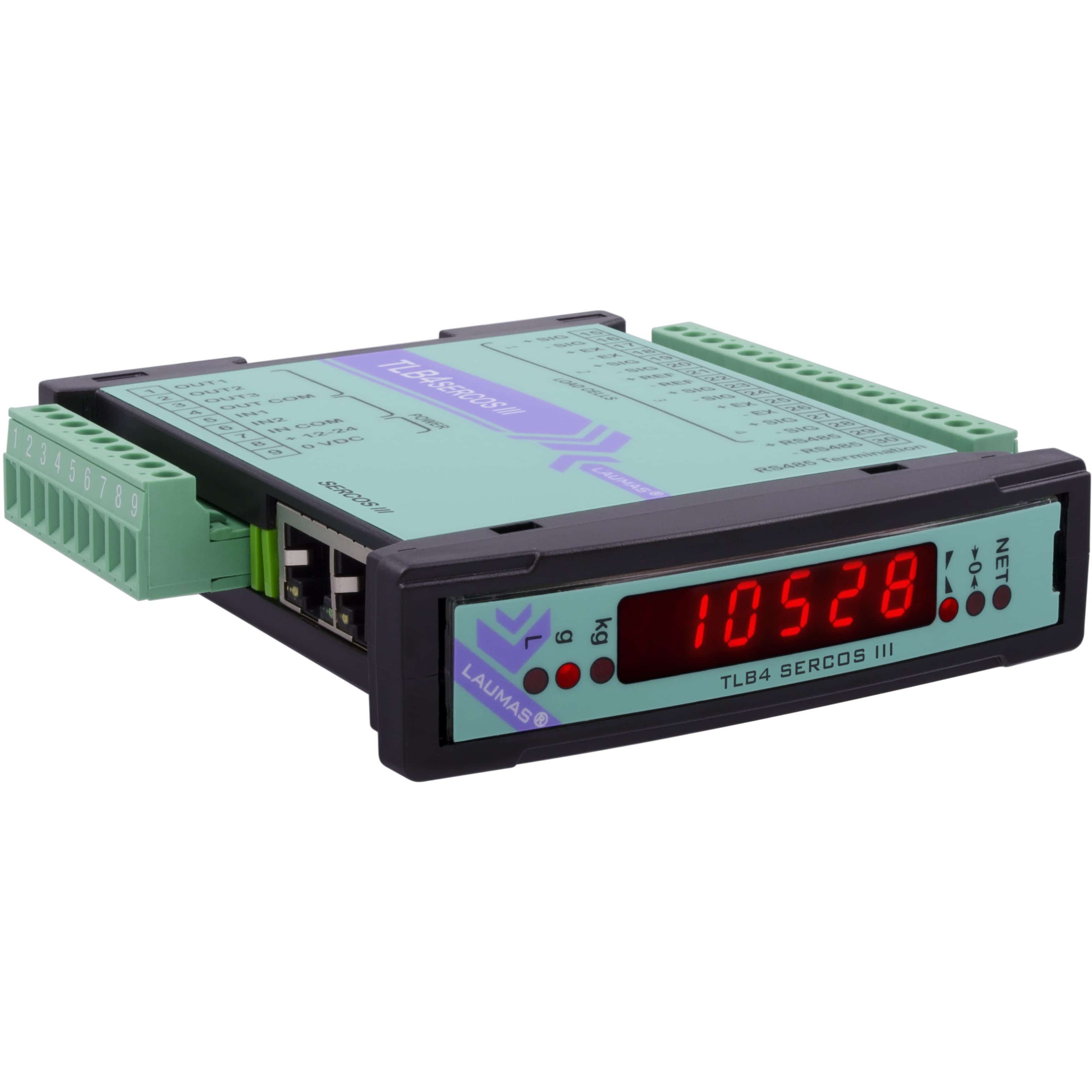

Alternative view of the Laumas TLB4 SERCOS III Weight Transmitter

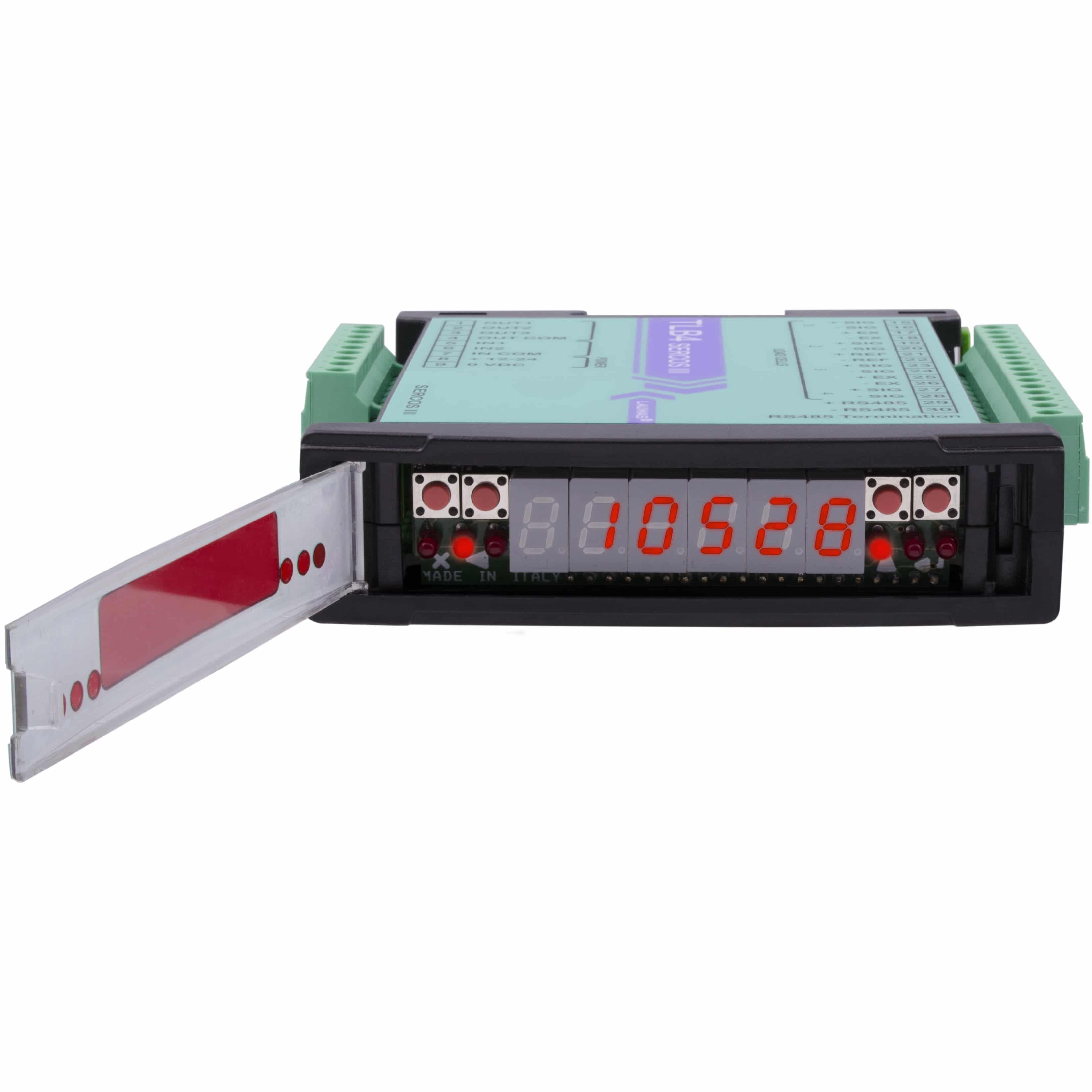

Laumas TLB4 SERCOS III Weight Transmitter connection and mounting detail
Laumas

TLB4 SERCOS III Weight Transmitter

Laumas TLB4 SERCOS III weight transmitter

With four separate load-cell inputs, the Laumas TLB4 SERCOS III gives engineers more information than a single combined junction-box signal. Digital equalisation simplifies corner adjustment and individual channel readings help with fault finding.

Its main interface is SERCOS III communication for automation systems that use this real-time Ethernet interface. The result is a useful option for OEM panels and plant upgrades where four-channel diagnostics matter.

Relay outputs, digital inputs and an RS485 service connection are included for local functions and commissioning. Confirm the load-cell arrangement and SERCOS III network configuration when specifying the transmitter.

Model: TLB4SERCOS

Model
Sale price£529.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Fieldbus Output
2x SERCOS III ports
Secondary Communication
RS485 port (Modbus RTU/Laumas ASCII protocol)
Power Supply
12–24 VDC ±10%
Load Cell Input
1 (350 R) - 4/6 wires. 5 VDC/240 mA
Measuring Range
±39 mV
Accuracy
±0.01% of full scale
Digital Inputs
Qty 2, 5 to 24 VDC PNP
Relay Outputs
Qty 3, max 115 VAC/150 mA
A/D Converter
1 channels - 24 bit (16000000 points) - 4.8 kHz
Mounting
DIN rail installation
OIML Certification
OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

SERCOS III machinery

Made for equipment where measurement and motion functions share a SERCOS III network.

Four-cell tanks and platforms

Helps engineers check load distribution across vessel and platform weighing systems.

Industrial Process Automation

Supports automated weighing processes through direct integration with industrial control systems.

Load Cell Diagnostics

Provides diagnostics and performance monitoring for individual load cells within the weighing system.

Features

SERCOS III connection

Incorporates weighing data into compatible real-time SERCOS III automation systems.

Individual channel diagnostics

Retains information from up to four load-cell inputs to simplify balancing and fault finding.

Integrated Diagnostics

Provides diagnostics for individual load cells, wiring faults and weighing system performance.

PLC Ready Weighing Integration

Designed for direct integration with PLC-controlled weighing and process automation systems.
