Kern DBS Moisture Analyser

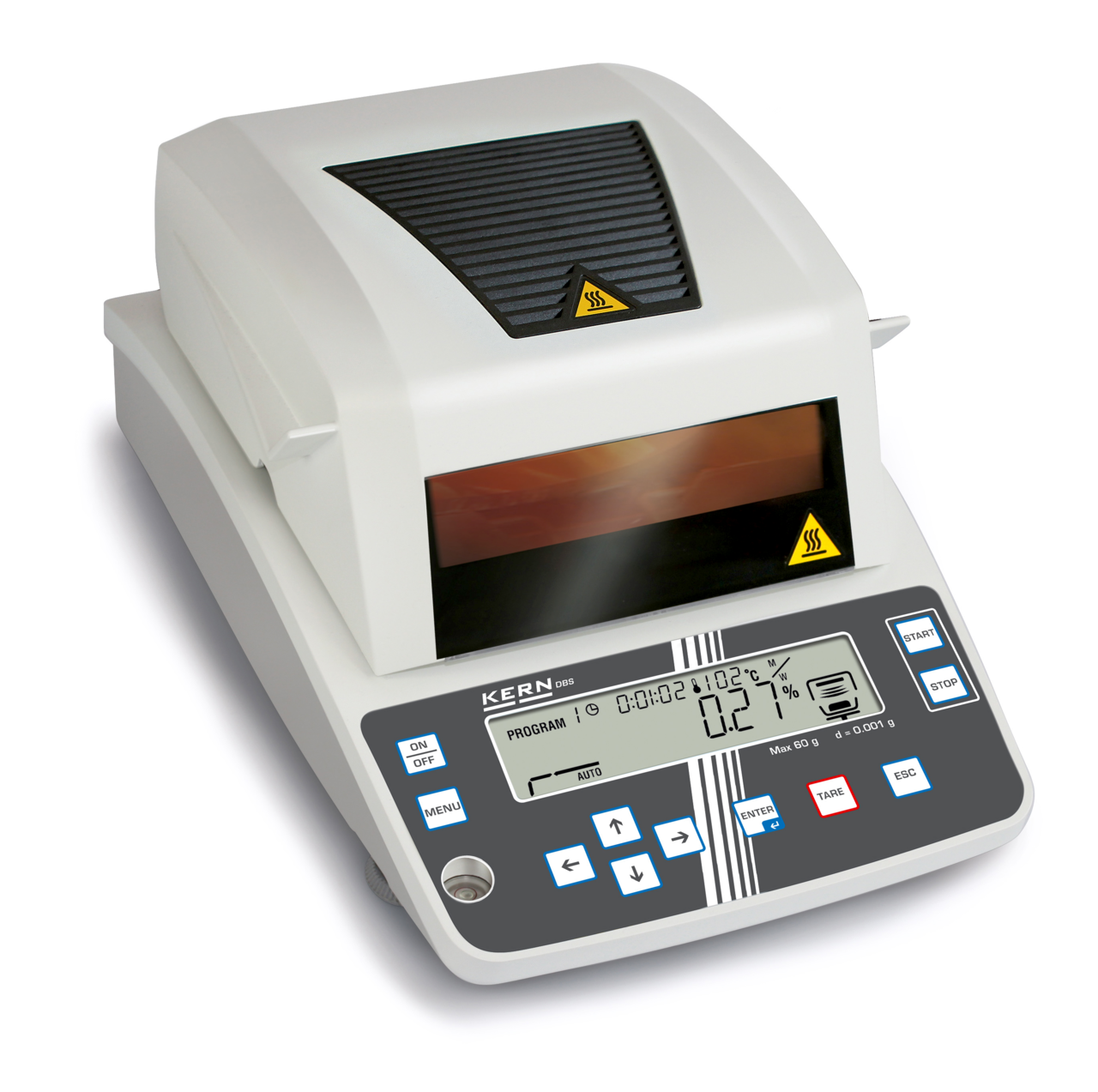

The Kern DBS 60-3 moisture analyser combines 60 g capacity with 0.001 g weighing readability and 0.01% moisture readability. A single-cell weighing system monitors weight loss during drying, while a 400 W halogen heater operates from 50 to 200 °C.

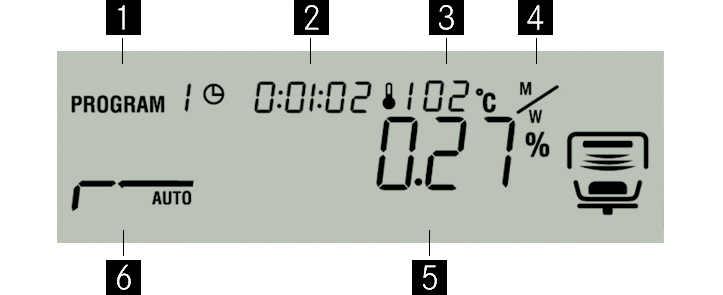

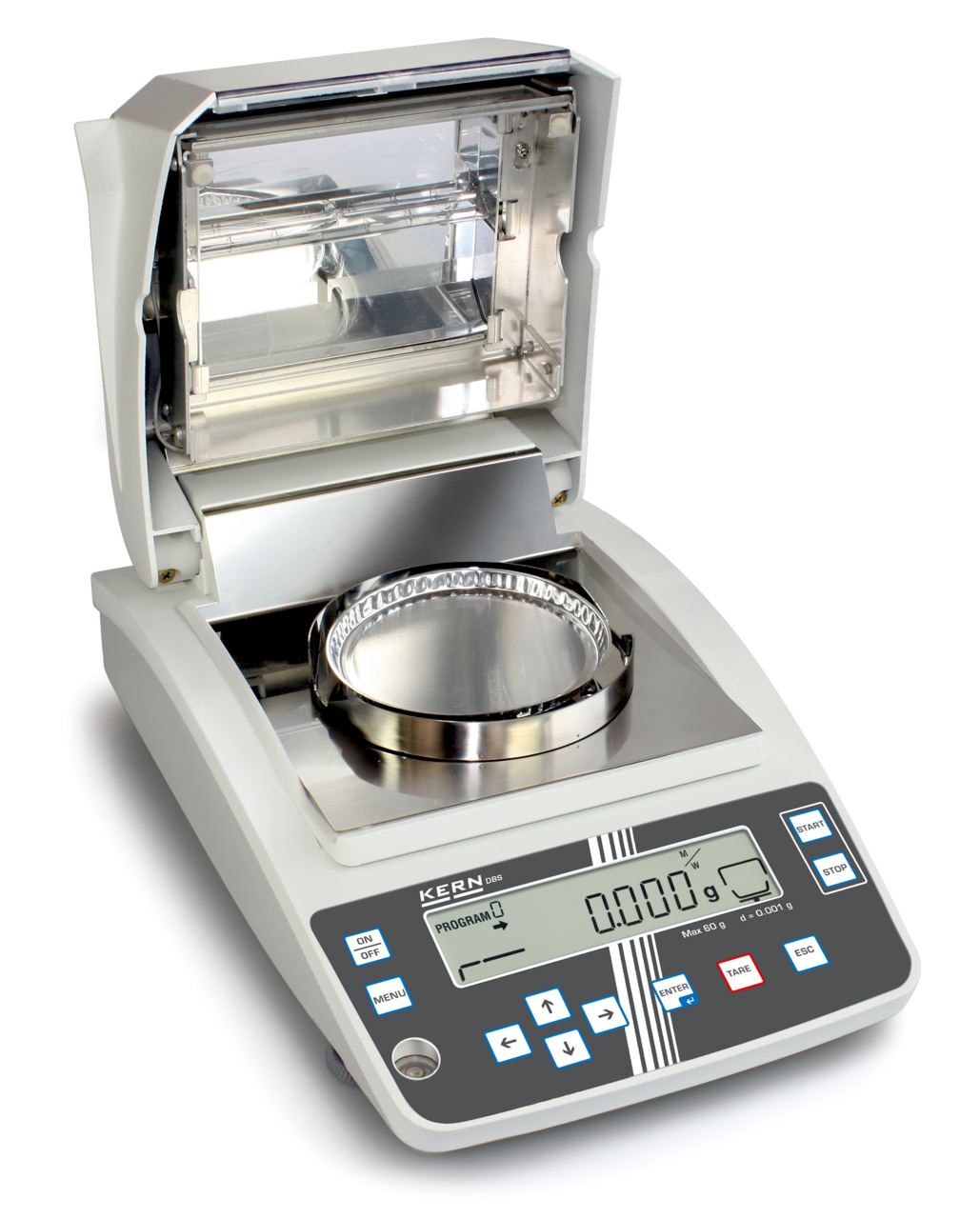

A backlit graphic display shows the drying profile, temperature, elapsed time and result. Standard, rapid, gentle and staged drying options allow the heating procedure to be adapted to the sample. Method memory, sample descriptions and USB data transfer support repeat tests and measurement records. The analyser uses a 95 mm sample pan.

Model: DBS 60-3

Calibration Certificate: No

Quantity:

£1,452.00

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

View Technical Data Sheet (PDF)

Kern Kern DBS Moisture Analysers

£1,452.00

Learn more

Product specification

Compare model specifications.

Model	DBS 60-3
Capacity	60 g
Readability	1 mg
Moisture Readability	0.01%
Repeatability (Weighing)	0.001 g
Legal For Trade	No
Platform Size	95 mm
Units	g, % moisture, % dry mass, % ATRO

Learn more

Applications

Laboratory Moisture Tests

Measure weight loss in suitable prepared samples using an established heating and end-point procedure.

Temperature-Controlled Drying

Use gentle or staged heating where the material's drying method requires a controlled temperature progression.

Repeat Quality Checks

Recall drying procedures for recurring samples to reduce repeated entry of test settings.

Sample Result Recording

Use sample descriptions and compatible data equipment to retain identifiable measurement records.

Features

Single-Cell Weighing System

The single-cell mechanism provides 0.001 g weighing readability across a 60 g capacity for monitoring sample weight during drying.

Selectable Drying Profiles

Standard, rapid, gentle and staged profiles provide different ways to heat the sample within the 50–200 °C range.

Clear Process Information

The graphic LCD displays temperature, drying time, heating profile and moisture results during a test.

Sample Records and Data Transfer

Programmable sample descriptions and USB output help associate recorded results with the material tested.

FAQs

What capacity and readability does the DBS offer?

The DBS 60-3 has 60 g capacity, 0.001 g weighing readability and 0.01% moisture readability.

What temperature range is available?

The halogen heater operates from 50 to 200 °C in 1 °C increments.

Can sample descriptions be entered?

Yes. The DBS supports freely programmable descriptions for up to 99 samples.

Can results be transferred to a computer?

Yes. The USB data interface supports transfer to a compatible computer or other suitable data equipment.
