Pressure Gauge Mounting Flanges & Clamps

Pressure Gauge Mounting Flanges & Clamps provide practical mounting support for pressure gauges used in panels, machinery, test equipment and industrial installations. The range may include rear flange, back flange, front flange, panel mounting flange, surface mounting flange and panel mounting clamp options.

Choose mounting hardware to suit the gauge size, case configuration and installation position. Options are available for common gauge diameters including 40mm, 50mm, 63mm, 100mm and 160mm where applicable.

Gauge Mounting Options

Pressure Gauge Mounting Flanges & Clamps are used to support pressure gauges in panel, surface and equipment-mounted installations. They help position the instrument securely for local pressure indication while keeping the dial accessible for operators and maintenance teams.

Typical options may include rear flange, back flange, front flange, panel mounting flange, surface mounting flange and panel mounting clamp arrangements, depending on the gauge case style and installation layout. Selecting the correct mounting accessory is important for mechanical support, visibility and installation compatibility.

When replacing an existing mounting flange or clamp, check the gauge nominal size, case configuration, fixing arrangement and connection orientation before ordering. Available gauge sizes in this collection include 40mm, 50mm, 63mm, 100mm and 160mm options where applicable.

Panel and Surface Mounting

Flanges and clamps support pressure gauges in panels, cabinets, machinery and surface-mounted positions, helping keep the instrument visible and mechanically secure.

Size Compatibility

Choose mounting hardware to suit the gauge size and case style. Options in this collection cover common gauge diameters including 40mm, 50mm, 63mm, 100mm and 160mm where available.

Replacement Mounting Parts

Suitable for maintenance stock, equipment refurbishment and replacement accessories where an existing gauge mounting flange or clamp has been damaged, lost or needs changing.

Learn more

Industrial Mounting Applications

Pressure gauge mounting accessories are commonly used wherever gauges need reliable mechanical support, clear dial visibility and practical access for inspection or replacement.

Control Panels

Panel mounting flanges and clamps help secure pressure gauges into control panels, test rigs and operator interfaces where front-facing indication is required.

Machinery and OEM Equipment

OEMs and machine builders use gauge mounting hardware to integrate local pressure indication into equipment layouts without relying on unsupported pipework mounting.

Plant Maintenance

Replacement back flanges, front flanges and panel clamps can be used during maintenance when refurbishing gauges, changing panels or restoring damaged installations.

Surface-Mounted Instruments

Surface mounting flange options can help position a pressure gauge on machinery, brackets or fixed structures where direct panel installation is not suitable.

Choosing Gauge Mounting Hardware

The correct mounting flange or clamp depends on the pressure gauge body, dial size, installation position and how the instrument needs to be viewed and supported.

Match the Gauge Size

Select the flange or clamp to match the nominal gauge diameter. Common sizes in this range include 40mm, 50mm, 63mm, 100mm and 160mm where listed.

Check Case Configuration

Confirm whether the gauge is designed for front flange, rear flange, back flange or panel clamp mounting. The accessory must suit the case style and fixing method.

Consider Mounting Position

Review whether the gauge will be panel mounted, surface mounted or fitted into equipment. Also check dial visibility, access for maintenance and pipework orientation.

Allow for Replacement Fit

For replacement mounting parts, compare the existing accessory, gauge size and installation layout before ordering. This helps avoid issues with fixing holes, clearances and support.

Mounting Flange FAQs

These common questions help buyers select pressure gauge mounting flanges and clamps for new installations, maintenance work and equipment replacement.

What is the difference between a front flange and a rear flange on a pressure gauge?

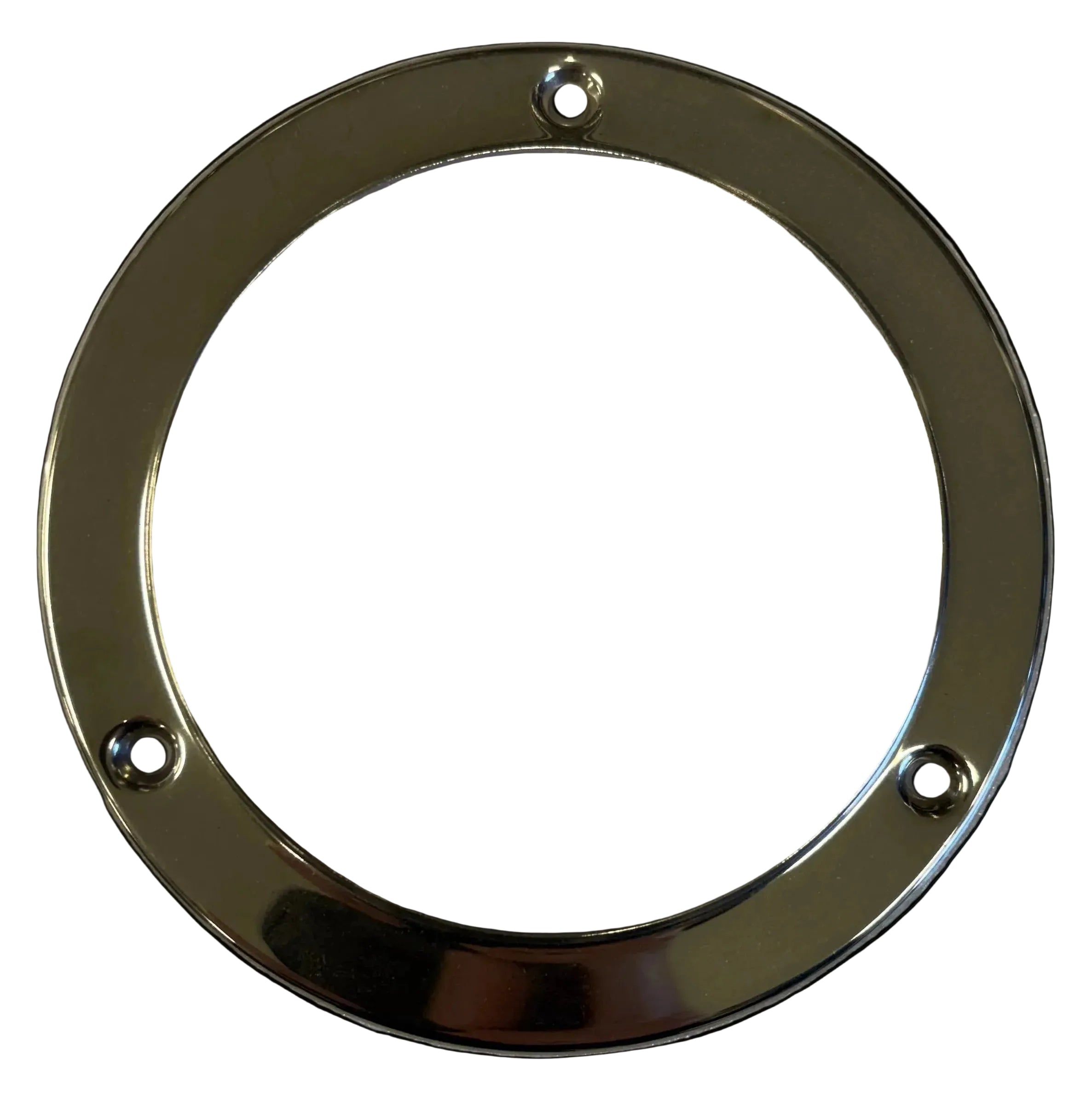

A front flange is typically used where the gauge is secured from the front of a panel or surface. A rear flange, also called a back flange, is generally positioned behind or around the case for alternative mounting arrangements. Compatibility depends on the gauge case design.

Can I use any panel mounting clamp with any pressure gauge?

No. A panel mounting clamp must suit the gauge size, case style and panel installation arrangement. Check the gauge diameter and mounting design before selecting a replacement clamp.

Which pressure gauge sizes are available for mounting flanges and clamps?

This collection includes mounting accessories for common gauge sizes including 40mm, 50mm, 63mm, 100mm and 160mm where applicable. Always confirm the size against the specific gauge being fitted.

When should a surface mounting flange be used?

A surface mounting flange is useful where the gauge needs to be fixed to equipment, a bracket or a flat surface rather than installed through a panel. The gauge connection and pipework layout should also be checked.
