Compact, Efficient Printing for Weighing Systems

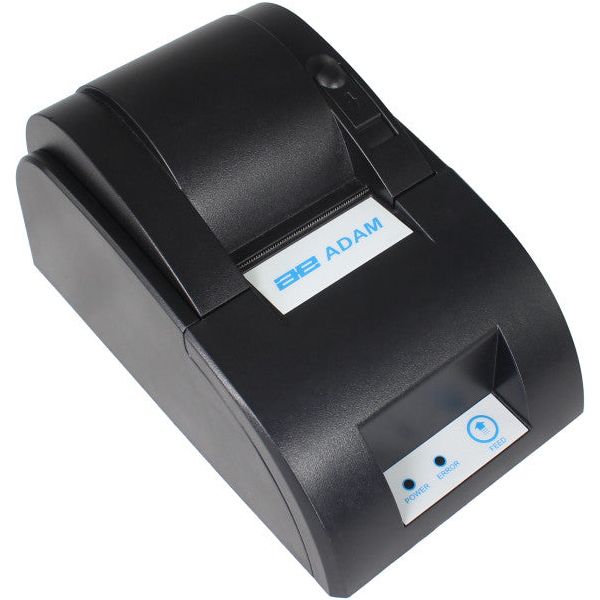

The Adam Equipment ATP2 Thermal Printer is a general-purpose printing solution designed to pair seamlessly with balances and scales. Its compact, efficient design allows it to fit easily onto any lab bench or industrial workstation, supporting fast and clear data recording without occupying unnecessary space.

Equipped with direct thermal line printing, the ATP2 is capable of outputting clear results at speeds of up to 50mm per second. Users benefit from simple operation via a power switch, paper feed button, and intuitive LED indicators. Compatible with Adam’s RS-232 interface, the ATP2 also supports integration with third-party equipment.

Key Features

• Direct Thermal Printing: Delivers sharp 24x24 dot output for labels, records and result logs
• Fast Output: Prints up to 50mm per second for rapid documentation
• Compact Design: Slim footprint (197 x 120 x 102mm) saves workspace
• Flexible Commands: Offers tab setting, line feeds, spacing, and formatting control
• Plug & Play: Preconfigured for Adam balances with RS-232, adaptable to other systems

Technical Specifications

• Print Method: Direct thermal line printing
• Resolution: 24 x 24 dot
• Column Size: 384 dots per line
• Paper Width: 57.5 ± 0.5mm
• Print Density: 8 points/mm
• Print Speed: Approx. 50mm per second
• Dimensions (L×W×H): 197 × 120 × 102mm
