Premium single-cell technology for high-precision tasks

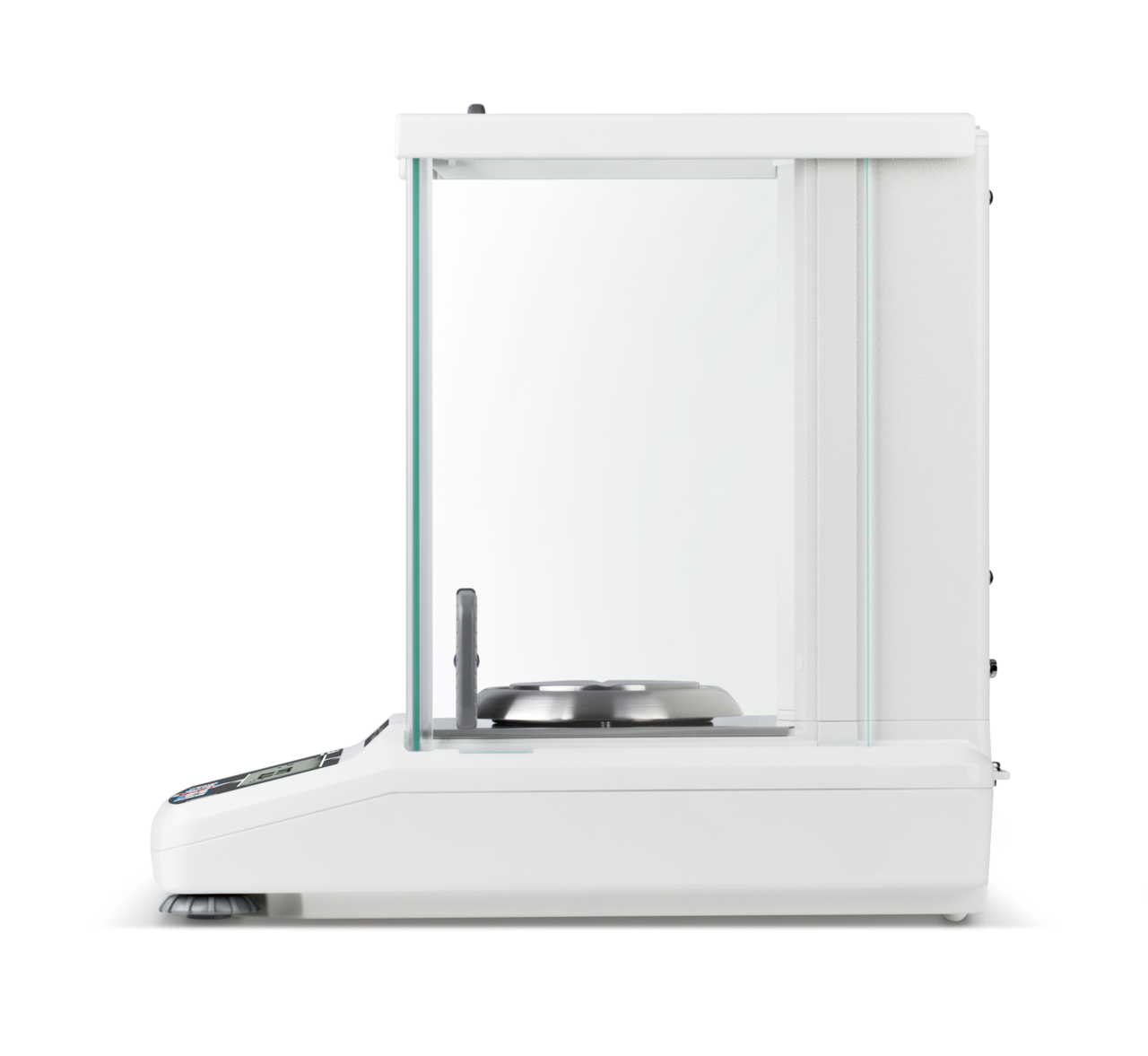

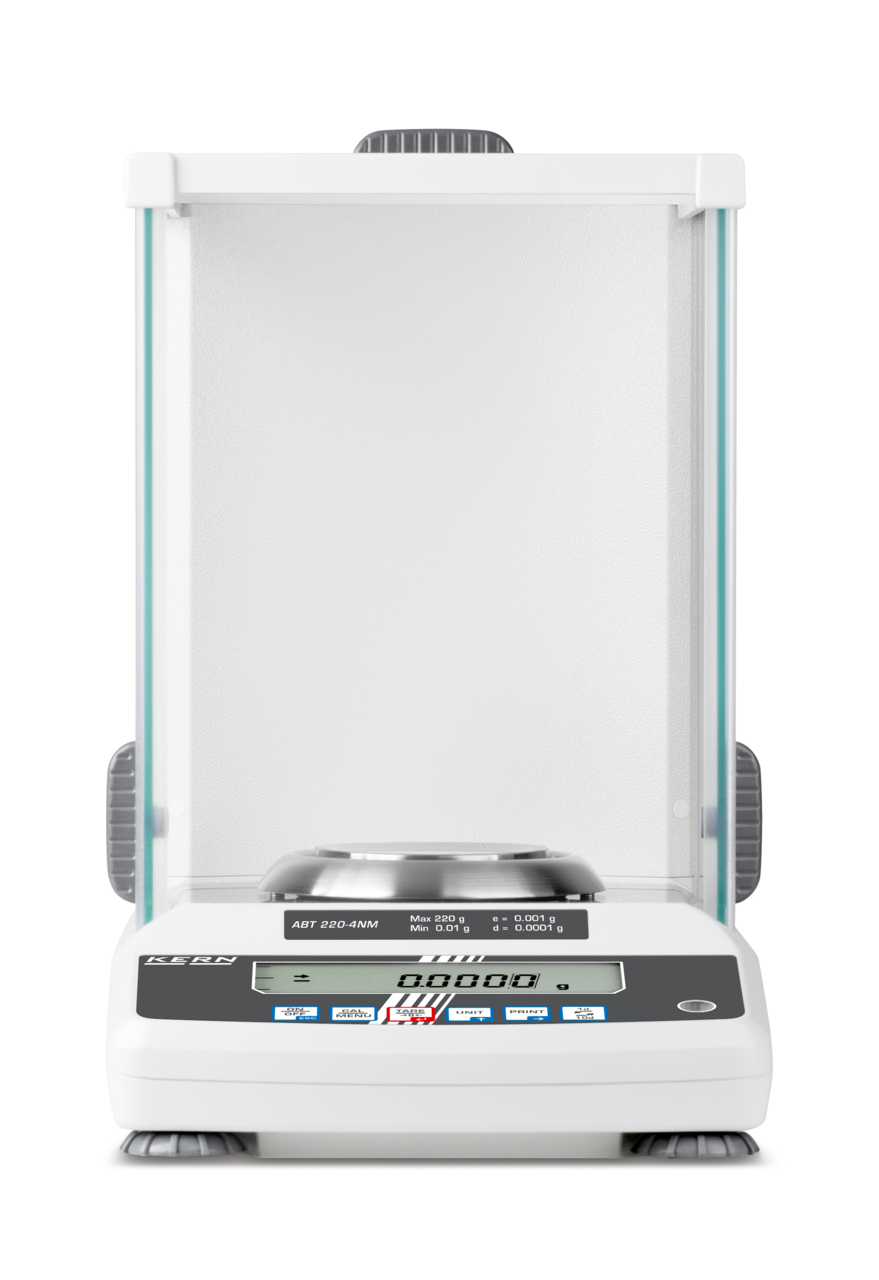

The Kern ABT series is a top-tier range of analytical balances built for laboratories and regulated environments demanding ultra-high precision and consistent reliability. Featuring advanced single-cell weighing technology, these balances offer short stabilization times, excellent temperature stability, and superior corner load performance.

With automatic internal adjustment and a variety of intelligent functions such as GLP-compliant printouts, recipe weighing, and automatic data output, the ABT range is engineered to support pharmaceutical, R&D, and quality assurance processes requiring traceable, high-accuracy weighing.


Key Features

  • Single-cell weighing system: Monolithic, shock-resistant cell for fast and accurate measurements
  • Automatic internal calibration: Triggered by temperature change ≥ 0.5 °C or every 4 hours
  • Display: Large LCD (14 mm digit height)
  • Data & Documentation: Automatic printout when weight stabilizes, GLP-compliant output
  • Draft Shield: Large glass enclosure with 3 sliding doors (weighing space: 168×172×223 mm)

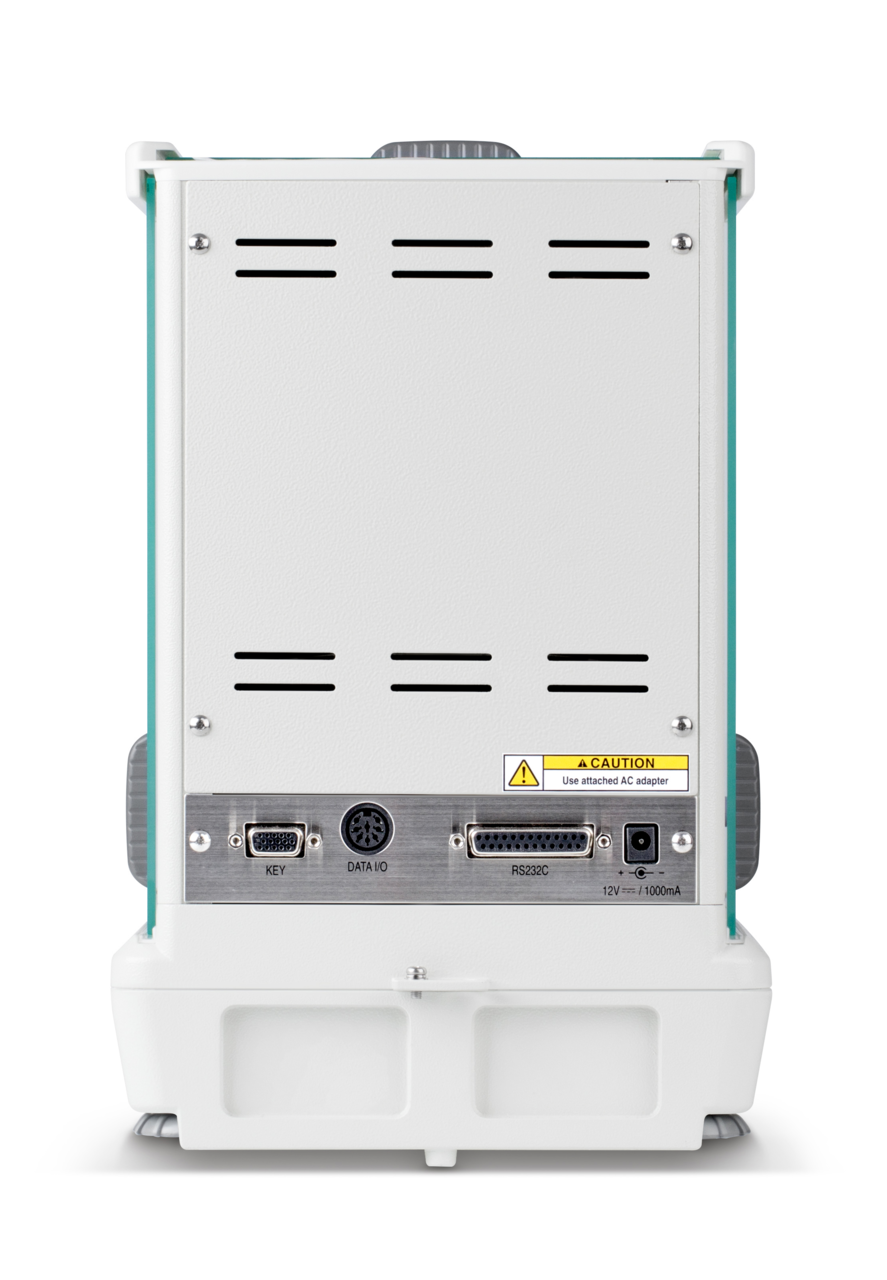

  • Connectivity: RS-232 interface; automatic PC/printer output
  • Functions: Recipe weighing, dosage aid, programmable ID on calibration protocol

KERN ABT Model Comparison

Model Capacity (g) Readability (mg) Verification Value (mg) Minimum Load (mg) Reproducibility (mg) Linearity (mg) Verification Ready
ABT 100-5NM 101 0.01 1 1 0.05 ±0.15 Yes
ABT 120-4NM 120 0.1 1 10 0.1 ±0.2 Yes
ABT 220-4NM 220 0.1 1 10 0.1 ±0.2 Yes
ABT 320-4NM 320 0.1 1 10 0.15 ±0.3 Yes
ABT 120-5DNM 42 | 120 0.01 | 0.1 1 | 1 1 0.02 | 0.1 ±0.03 | 0.2 Yes
ABT 220-5DNM 82 | 220 0.01 | 0.1 1 | 1 1 0.05 | 0.1 ±0.1 | 0.2 Yes

Additional Information

  • Calibration: All ABT models feature fully automatic internal calibration
  • Verification: All "NM" models are verification-capable per NAWI 2014/31/EU and require verification before delivery
  • Stabilization Time: ~4 seconds for 0.1 mg models, ~10 seconds for 0.01 mg models
  • Pan Size: Ø 80 mm (stainless steel)
  • Accessories: Ionizer, density kit, vibration isolation table, protective covers, calibration certificates, IQ/OQ documentation
