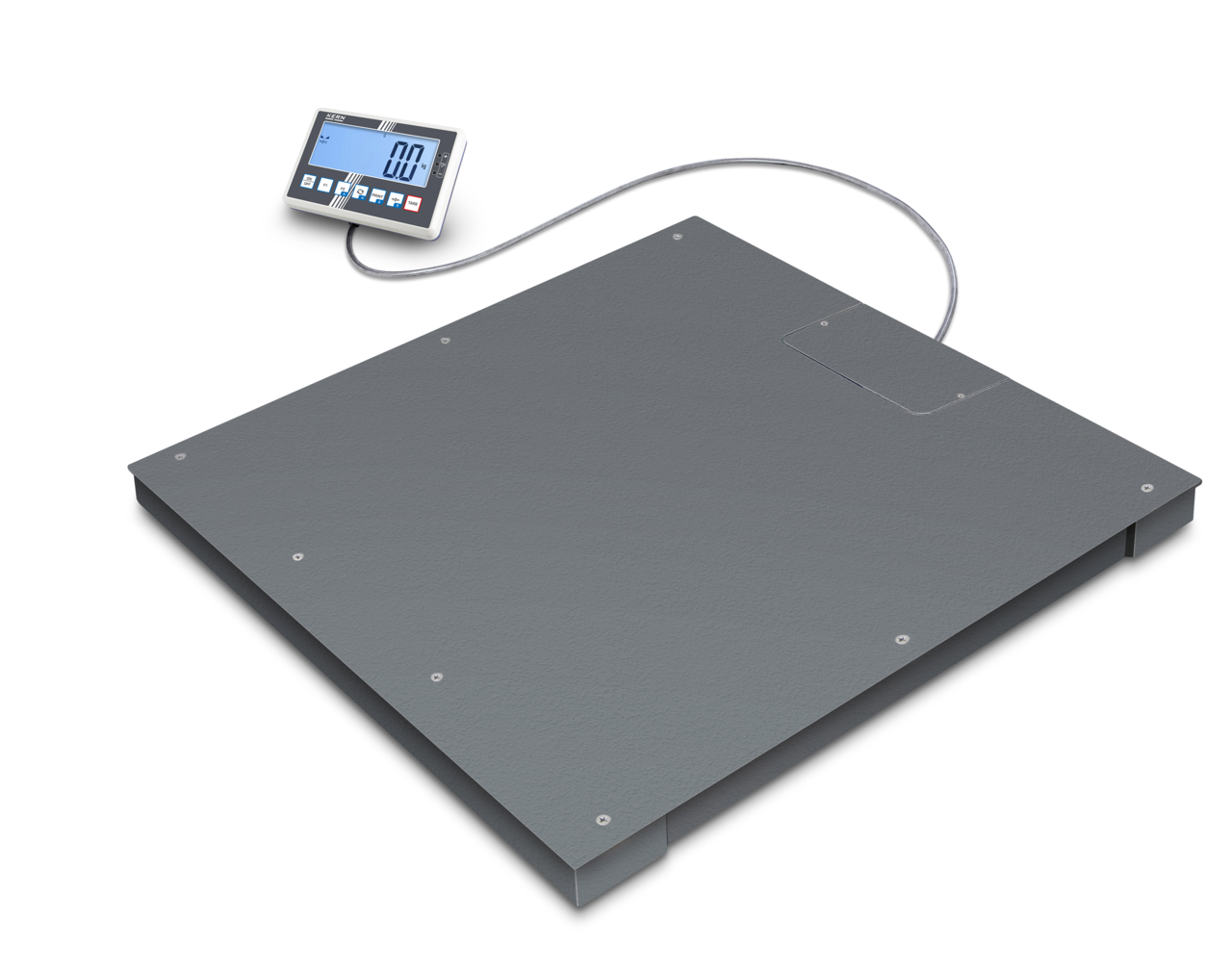

Industrial IoT Floor Scales – High-Capacity Weighing with Hygienic Design

The Kern BFC Floor Scale series offers heavy-duty, networkable weighing solutions for logistics, warehouse, and industrial operations. With weighing capacities up to 6000 kg and IP67-rated load cells, these scales provide accuracy, durability, and digital connectivity, meeting the needs of demanding environments.

Equipped with a smooth, easily removable weighing plate (screwed on from above), the BFC models are simple to maintain and clean—ideal for hygiene-sensitive applications. Each model comes with an XXL display device, protective cover, and supports optional ramps, stands, and pit frames for permanent installation.


Key Features

  • Removable Plate: Smooth steel platform secured from above for easy access and cleaning (except 6T-3M model)
  • Industrial Durability: 4x IP67 silicone-coated steel load cells ensure protection from dust and spray
  • Real-Time Clock: Enables time-stamped logging of weight data—even during power interruptions
  • Extra-Large Display: Backlit LCD with 48 mm digits and 5 m cable for convenient placement
  • Flexible Mounting: Includes benchtop/wall stand and optional ramps or pit frames for floor installation
  • IoT Connectivity: Compatible with RS-232, USB, Ethernet, WiFi, and Bluetooth interfaces (optional)

Model Comparison

Model Capacity (kg) Readability (kg) Platform Size (mm) Min Load (kg) Verification Option
BFC 600K-1SM 600 0.2 1000×1000 4 Yes
BFC 600K-1M 600 0.2 1500×1250 4 Yes
BFC 1.5T-4SM 1500 0.5 1000×1000 10 Yes
BFC 1.5T-4M 1500 0.5 1500×1250 10 Yes
BFC 3T-3M 3000 1 1500×1250 20 Yes
BFC 3T-3LM 3000 1 1500×1500 20 Yes
BFC 6T-3M 6000 2 1500×1500 (welded) 40 Yes

Additional Information

  • Display: LCD, 48 mm digits, 5 m cable
  • Temperature Range: -10 °C to +40 °C
  • Power: Mains or optional rechargeable battery (22 h use)
  • Optional Interfaces: RS-232, USB, Ethernet, WiFi, Bluetooth, Analogue
  • Mounting: Includes stand and wall mount; base plate pair or pit frame recommended for fixed installation
