80190

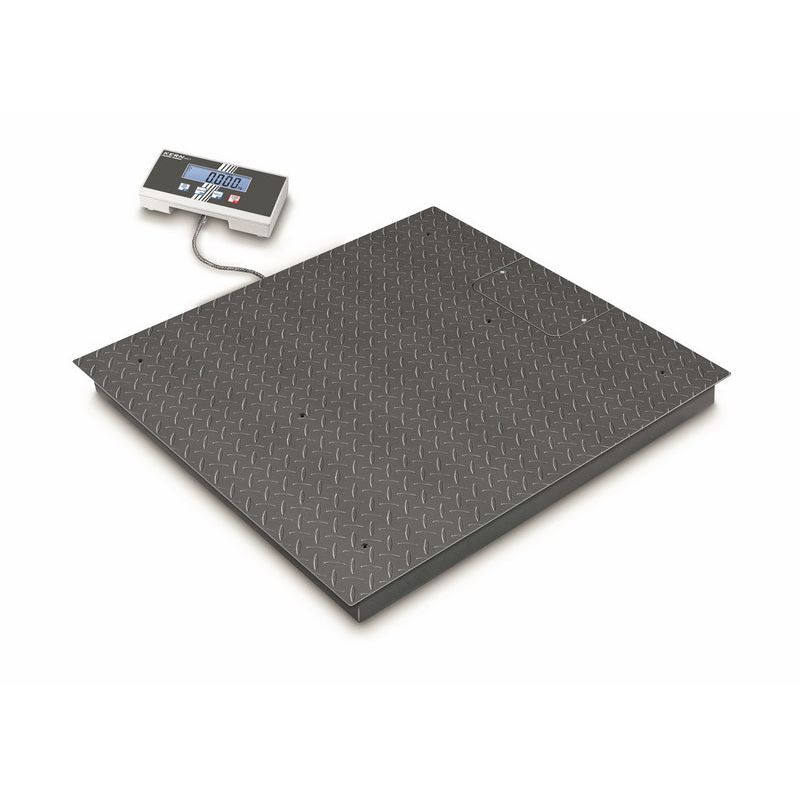

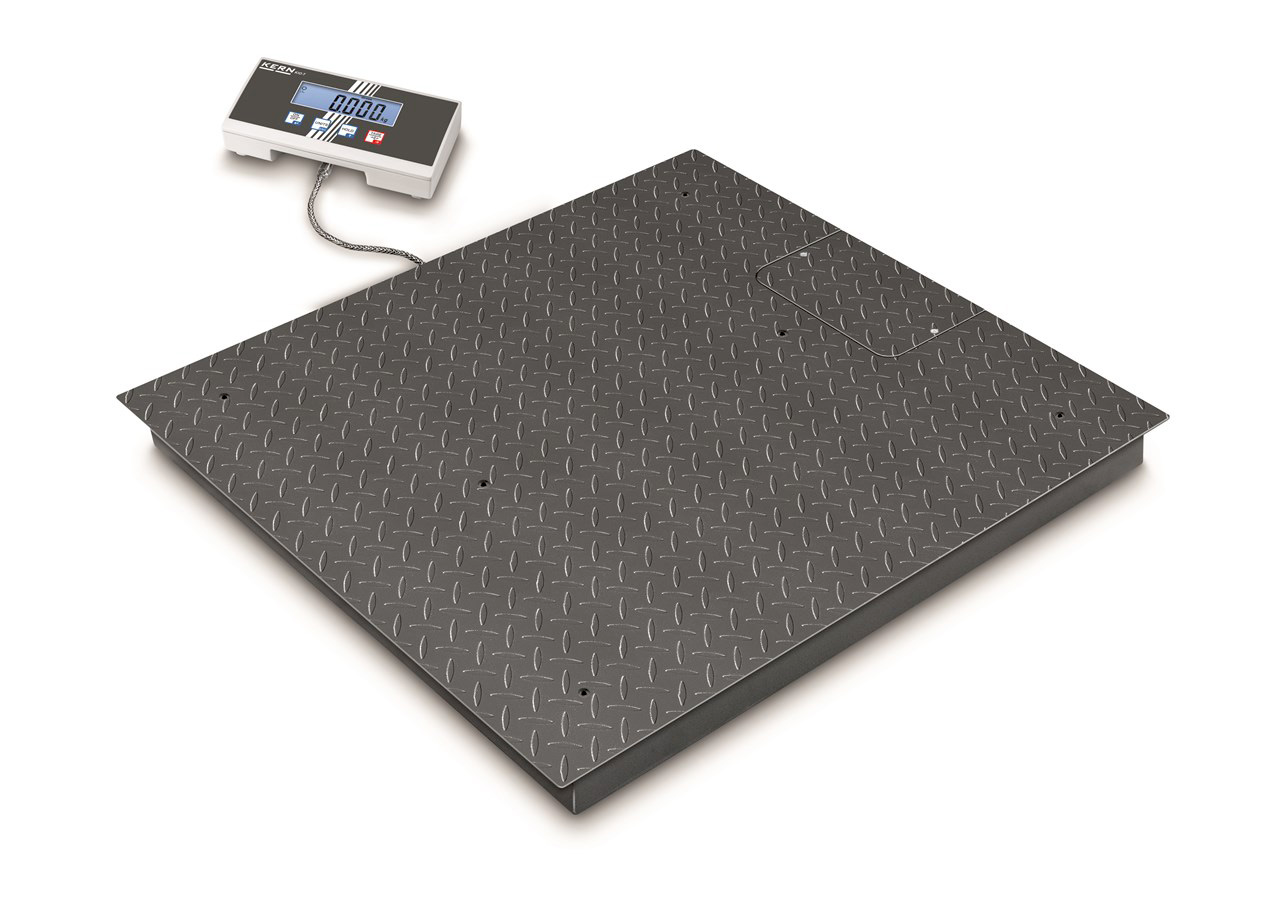

Kern BIC floor scales with capacities from 600 kg to 3000 kg. Kern BIC floor scales are a high resolution floor scale with a dual range display. They are available with an optional calibration certificate and a range of accessories.

  • Weighing bridge: anti-slip corrugated steel plate, 4 silicone-coated steel load cells, protection against dust and water splashes IP67
  • Easy levelling of the weighing bridge as well as access to the junction box from above
  • Simple and convenient 4-key operation
  • Wall mount for display device, standard
  • A clever plug-in connector means that you can easily separate the display device and the platform, e.g. for installing the balance in a packing and dispatch bench, pit frame etc. at a later date
  • Our large, heavy KERN floor scales are sent in a sturdy wooden crate, to ensure safe transportation and protection of the measuring equipment
Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)
BIC 1T-4 600 kg | 1500 kg 200 g | 500 g 1200  mm x 1500  mm
BIC 1T-4S 600 kg | 1500 kg 200 g | 500 g 1000  mm x 1000  mm
BIC 3T-3 1500 kg | 3000 kg 500 g | 1000 g 1200  mm x 1500  mm
BIC 3T-3L 1500 kg | 3000 kg 500 g | 1000 g 1500  mm x 1500  mm
BIC 600K-1 300 kg | 600 kg 100 g | 200 g 1200  mm x 1500  mm
BIC 600K-1S 300 kg | 600 kg 100 g | 200 g 1000  mm x 1000  mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.IP 67 protection in accordance with DIN EN 60529:
Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.Battery operation: The battery type is specified for each device.Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA, AUSStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Kern BIC Floor Scales
