Kern CCS Counting Systems

Kern CCS Counting System Overview

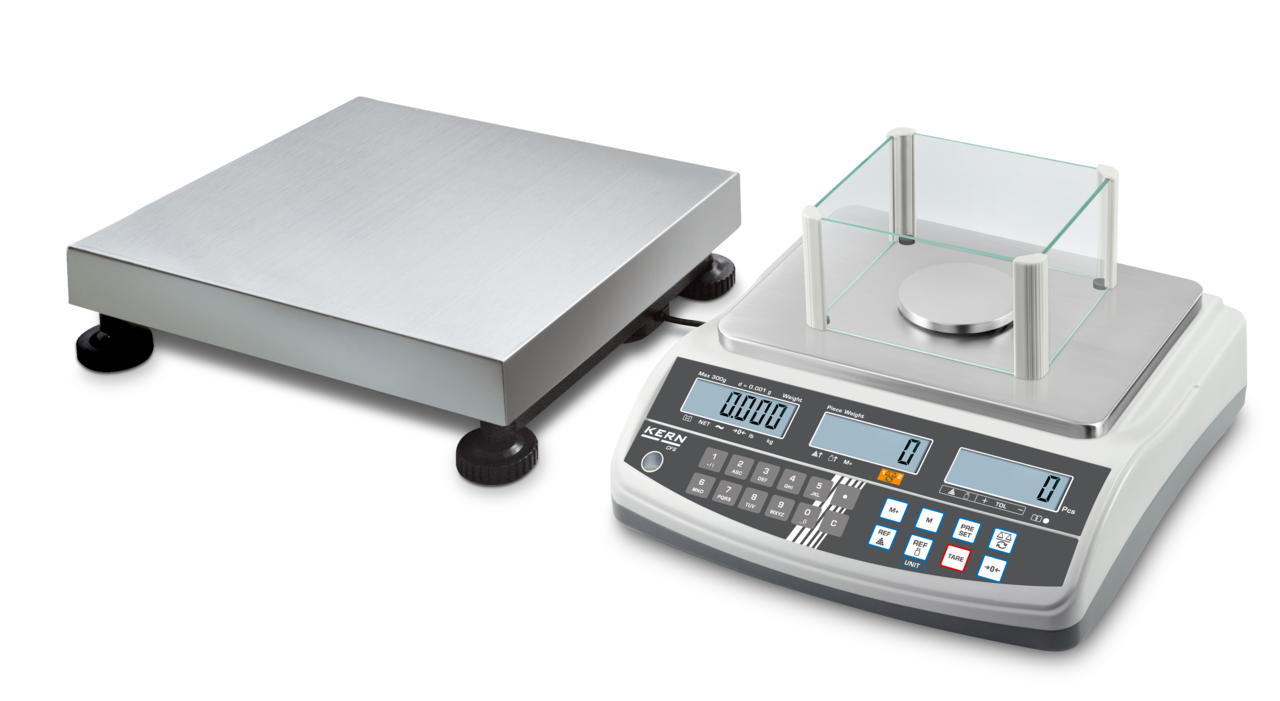

The Kern CCS Counting System is an industrial counting system from the Kern CCS range, designed for accurate counting of small parts in large quantities. Combining a KERN CFS 300-3 reference scale with a KERN KFP 6V20M quantity scale, it supports counting, weighing and piece-counting workflows where reliable results and efficient operation are required.

It is suited to quality assurance, assembly areas, parts logistics, packaging, order picking and inventory control, helping operators count components on a weighing platform while using reference weight data for repeatable piece counting.

Why Choose the Kern CCS Series?

This system can replace a range of individual balances by connecting a professional counting scale to a high-capacity weighing bridge. Three LCD displays, keypad programming, PLU memory, fill-to-target signalling and automatic reference weight optimisation support controlled counting without unnecessary manual calculation.

Industrial Counting for Production and Logistics

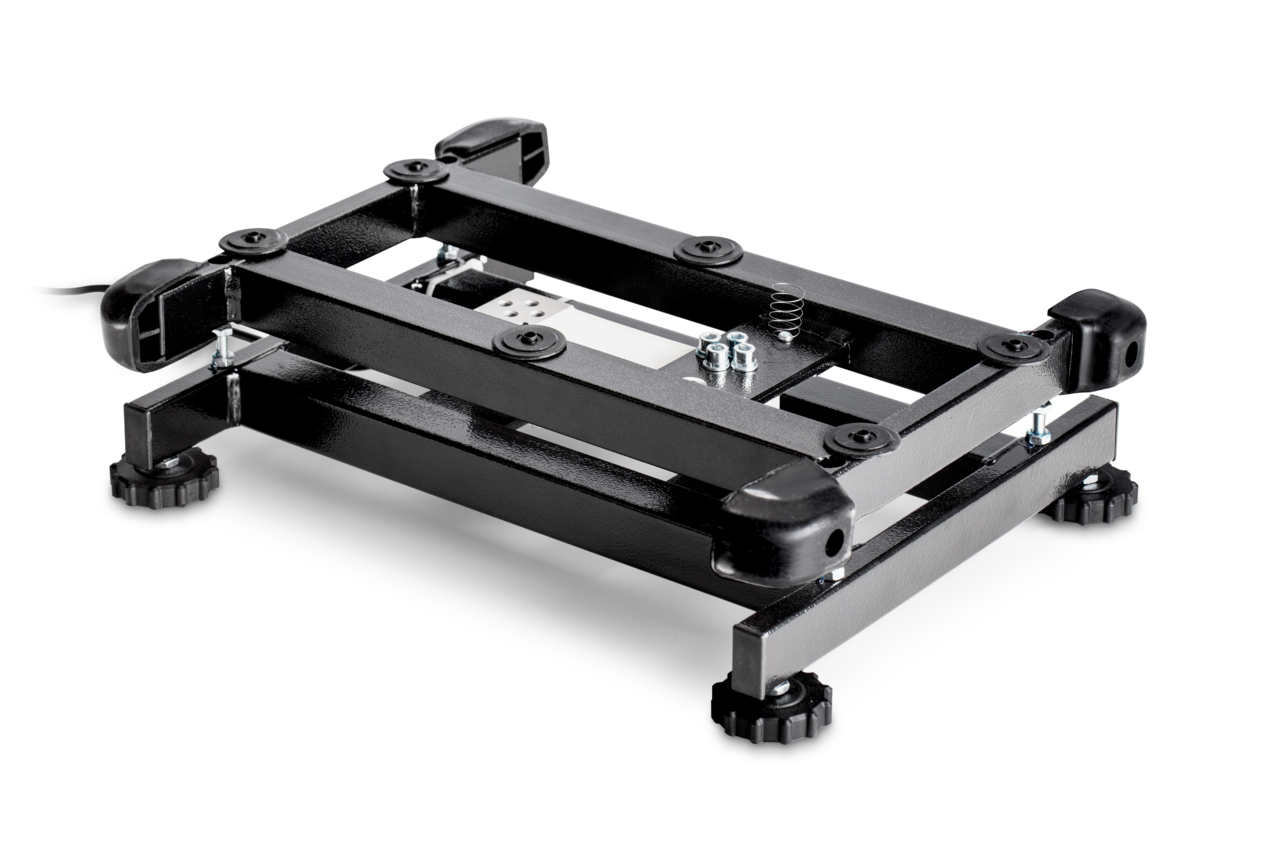

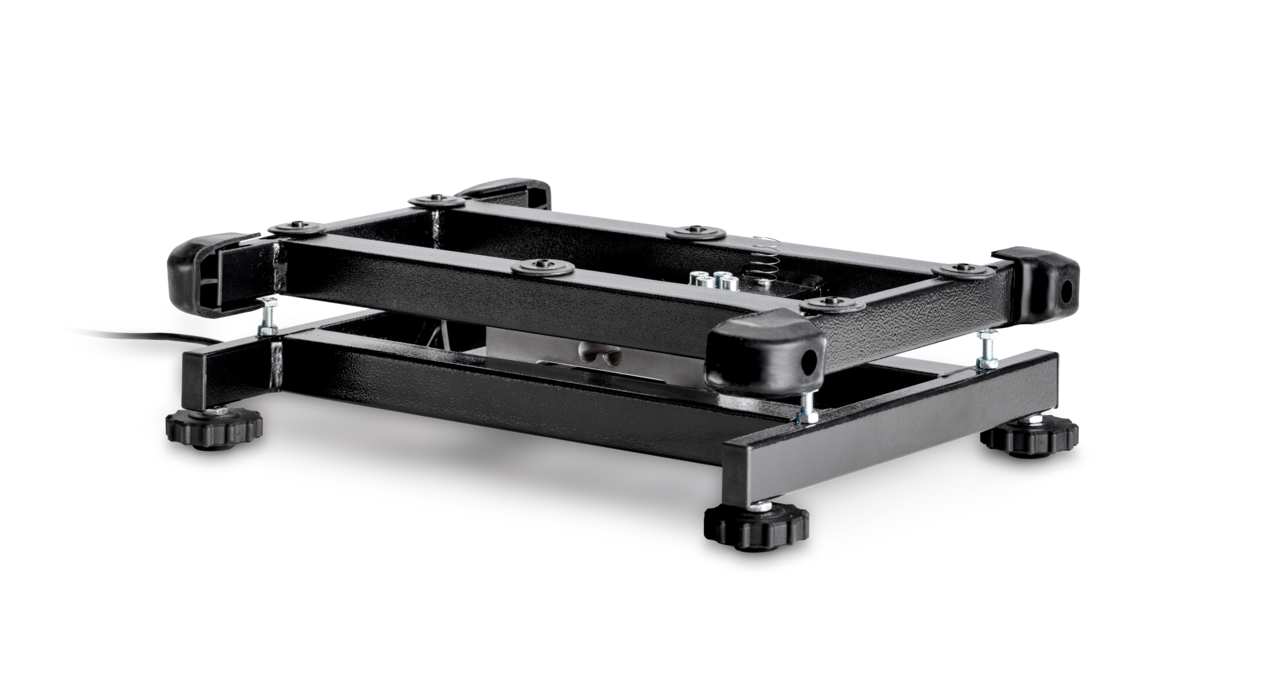

For UK manufacturers, stores teams, packaging operators and quality control departments, the Kern CCS Counting System offers a practical strain gauge weighing solution for managing small parts at volume. The stainless steel weighing plate, painted steel base, protective working cover and IP65 aluminium singlepoint load cell protection support daily industrial use.

View Accessories
Model: CCS 10K-6

Model
Calibration Certificate: No

Calibration Certificate
Sale price£633.60

Learn more

Product specification

Compare model specifications.

Model CCS 10K-6 CCS 150K0.01 CCS 150K0.01L CCS 150K0.1. CCS 150K0.1L CCS 1T-1L CCS 1T-1U CCS 1T-4 CCS 1T-4S CCS 300K0.01 CCS 300K0.1 CCS 30K0.01. CCS 30K0.1. CCS 3T-3L CCS 600K-1S CCS 60K0.01. CCS 60K0.01L. CCS 60K0.1. CCS 60K0.1L. CCS 6K-6
Capacity 60 kg 2200 g 220 g 5200 g 500 g 620 g 220 g 420 g 1000 g 3000 g 500 g 100 g 2000 g 200 g 200 g 3000 g 500 g 6000 g 12000 g 3000 g
Readability 0.005 kg 1 g 0.1 g 1 g 0.01 g 0.1 g 0.001 g 0.001 g 0.1 g 0.1 g 0.01 g 0.001 g 0.01 g 0.01 g 0.001 g 0.1 g 0.1 g 0.1 g 0.1 g 0.01 g
Readability Certified 0.01 g 0.01 g
Repeatability 0.005 kg 1 g 0.1 g 1 g 0.01 g 0.1 g 0.001 g 0.001 g 0.3 g 0.3 g 0.03 g 0.001 g 0.01 g 0.01 g 0.002 g 0.1 g 0.1 g 0.1 g 0.1 g 0.02 g
Legal For Trade No No No No No No Yes Yes No No No No No No No No No No No No
Platform Size 500 mm x 400 mm 134 mm x 127 mm 134 mm x 127 mm 134 mm x 127 mm 134 mm x 127 mm 134 mm x 127 mm 118 mm 118 mm 120 mm x 120 mm 120 mm x 120 mm 105 mm 82 mm 150 mm 105 mm 82 mm 150 mm 150 mm 150 mm 175 mm x 190 mm 175 mm x 190 mm
Units kg, lb, PCS g, gn, wt, ozt, lb, oz g, gn, wt, ozt, lb, oz g, gn, wt, ozt, lb, oz g, gn, wt, ozt, lb, oz g, gn, wt, ozt, lb, oz g, wt, ozt, ct, mo, lb, oz, tol g, wt, ozt, ct, mo, lb, oz, tol g, gn, wt, ct, oz g, gn, wt, ct, oz g, gn, wt, ct, oz g, wt, ozt, oz g, wt, ozt, oz g, wt, ozt, oz g, ct g, wt, ozt, oz g, wt, ozt, oz g, wt, ozt, oz g, wt, ozt, oz g, wt, ozt, oz

Learn more

Applications

Quality Assurance

Supports controlled part counts for inspection, verification and production quality checks.

Assembly Counting

Helps assembly teams count small components needed for kits, batches and workstations.

Packaging Operations

Useful for counting parts into packs where target quantities or target weights are required.

Inventory Control

Assists order picking, stock checks and parts logistics by reducing manual counting.

Features

High-Volume Counting

Counts very small parts in large quantities with a maximum displayed count of 999,999 pieces.

Dual Scale System

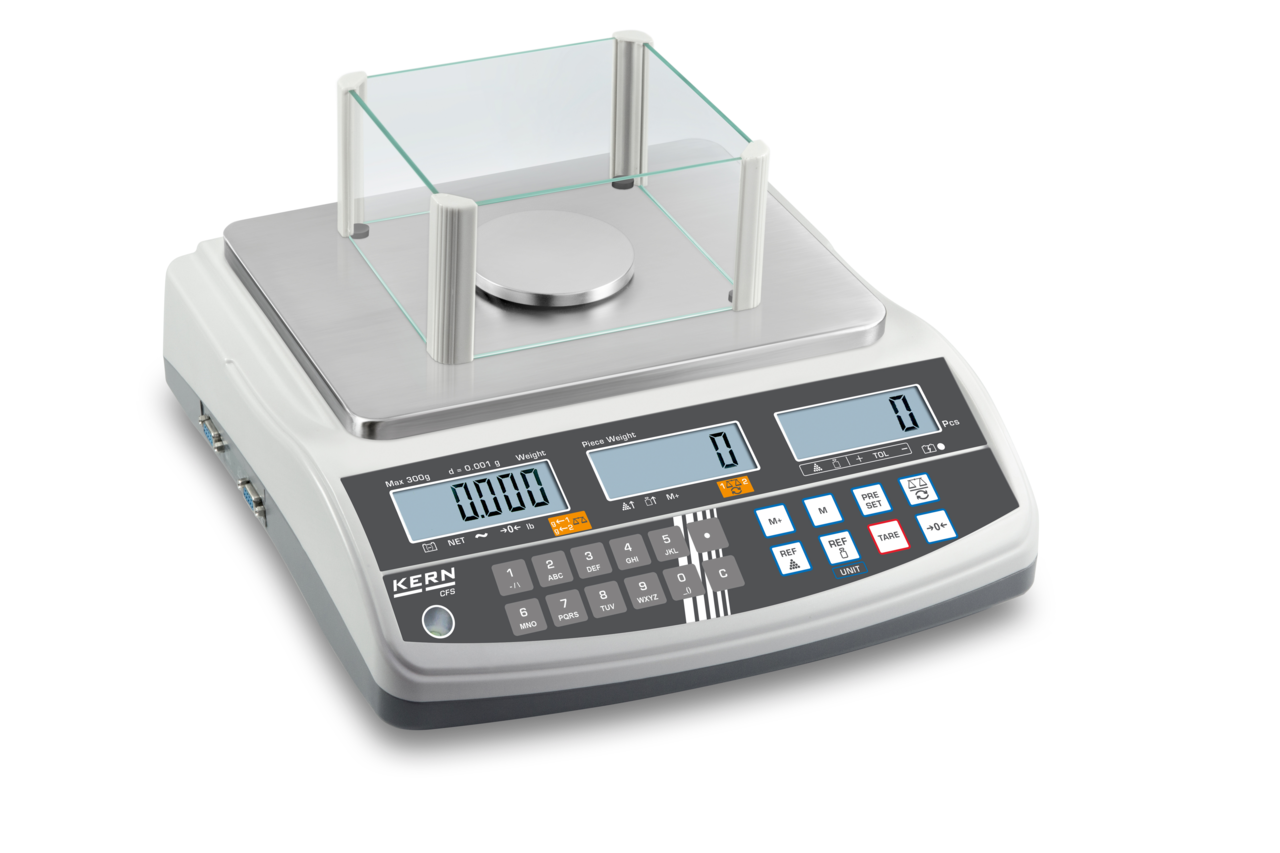

Uses a KERN CFS 300-3 reference scale with a KERN KFP 6V20M quantity scale for efficient piece counting.

Target Counting

The fill-to-target function provides audible and visual signals when the programmed count or weight is reached.

Optimised Reference Weight

Automatic reference weight optimisation gradually improves the average piece weight value during counting.
