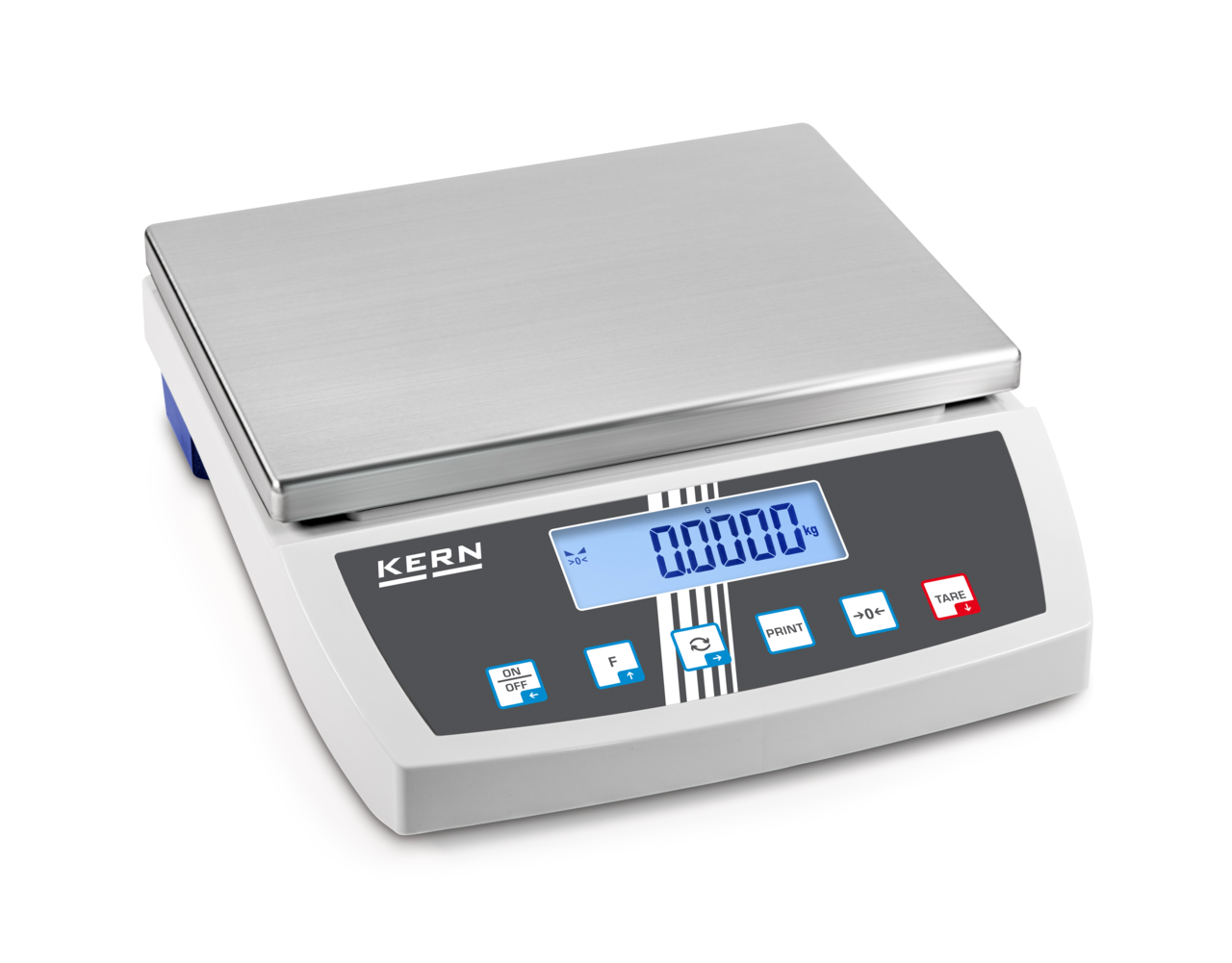

Kern FKB Bench Scales
30800
High-Resolution Compact Weighing for Industrial Precision
The Kern FKB Series bench scales deliver exceptional resolution of up to 360,000 points, making them ideal for precision weighing in compact industrial and laboratory environments. Compact yet robust, these scales are designed for applications where both accuracy and durability are essential.
Each unit features a large stainless steel weighing plate, KUP port for flexible connectivity, and KCP protocol for remote control and integration with external devices.
With functions such as programmable weighing units, pre-tare deduction, and rapid stabilisation, the Kern FKB range is well-suited for production, laboratory testing, and specialist industrial applications.
Key Features
- High-Resolution Accuracy: Resolution up to 360,000 points, ideal for sensitive measurements
- Durable Construction: Robust plastic die-cast housing and stainless steel weighing platform
- KUP Interface Port: Supports optional adapters for USB, RS-232, WiFi, Bluetooth, Ethernet
- Remote Control Capability: Compatible with KCP for integration into automated systems
- Pre-Tare and Programmable Units: Manually subtract container weight or configure custom weighing units
- Levelling & Stability: Built-in level indicator and adjustable feet for consistent readings
Model Comparison
| Model | Capacity (kg) | Readability (g) | Reproducibility (g) | Linearity (g) |
|---|---|---|---|---|
| FKB 6K0.02 | 6 | 0.02 | 0.04 | ±0.1 |
| FKB 8K0.05 | 8 | 0.05 | 0.05 | ±0.15 |
| FKB 16K0.05 | 16 | 0.05 | 0.1 | ±0.25 |
| FKB 8K0.1 | 8 | 0.1 | 0.1 | ±0.3 |
| FKB 16K0.1 | 16 | 0.1 | 0.1 | ±0.3 |
| FKB 15K0.5 | 15 | 0.5 | 0.5 | ±1.5 |
| FKB 36K0.1 | 36 | 0.1 | 0.2 | ±0.5 |
| FKB 36K0.2 | 36 | 0.2 | 0.4 | ±1 |
| FKB 65K0.2 | 65 | 0.2 | 0.4 | ±1 |
| FKB 30K1 | 30 | 1 | 1 | ±3 |
| FKB 65K1 | 65 | 1 | 1 | ±3 |
Additional Information
- Display: Large backlit LCD, 25 mm digit height
- Weighing Pan Size: 340 × 240 mm (stainless steel)
- Dimensions (W×D×H): 350 × 390 × 120 mm
- Battery Option: Optional 4×AA battery pack, up to 20h runtime (not included)
- Operating Temperature: -10 °C to +40 °C
- Net Weight: Approx. 7 kg
