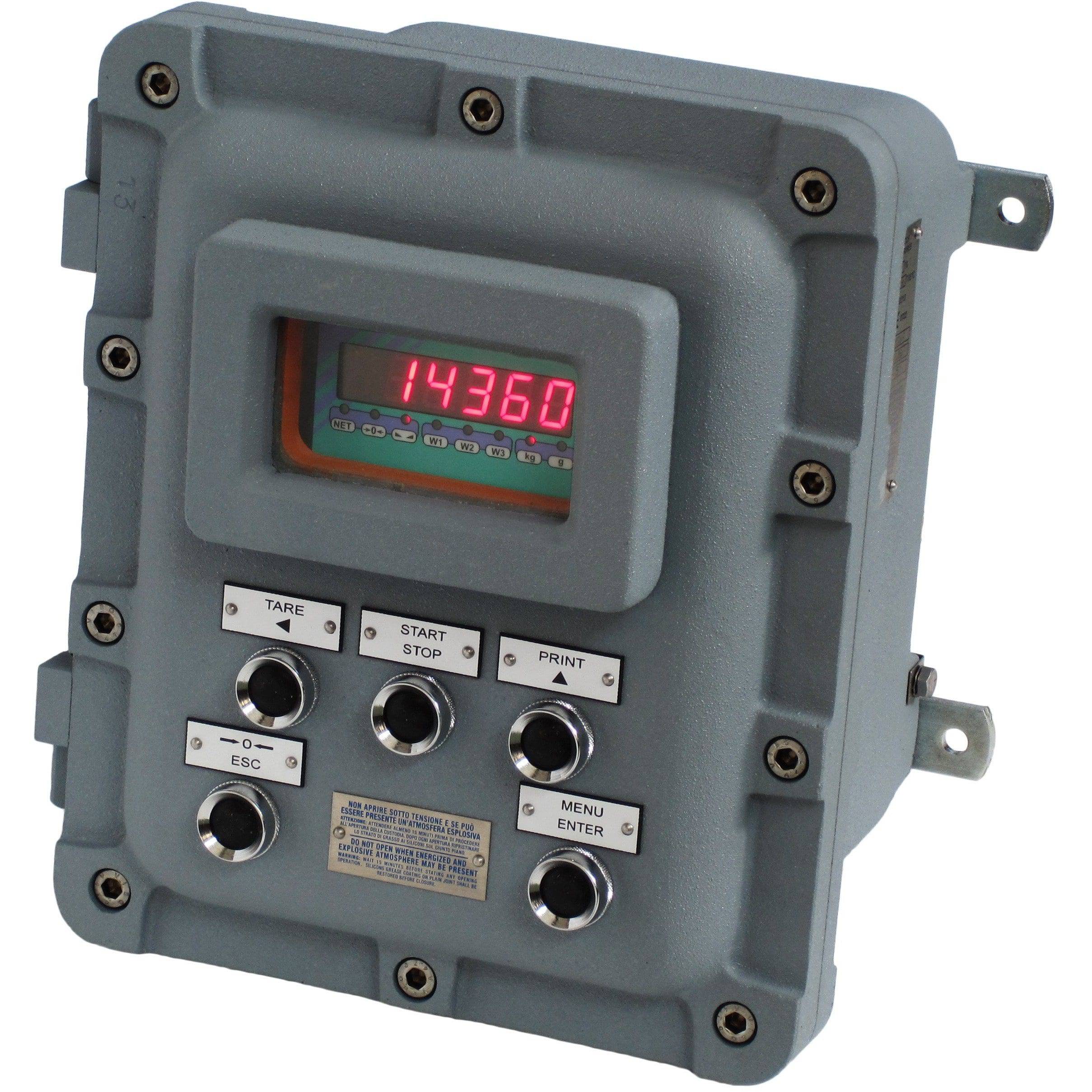

Laumas ADPE W200 Weight Indicator
Laumas ADPE W200 Weight Indicator Overview
The Laumas ADPE W200 is an explosion-proof weight indicator designed for hazardous area weighing and batching applications. It provides W200 indicator functionality within a protective enclosure suitable for potentially explosive atmospheres.
With batching capability, industrial communications and setpoint control, the ADPE W200 is suitable for chemical processing, pharmaceutical production, food processing and process weighing systems requiring ATEX-rated equipment.
Laumas ADPE W200 Weight Indicator
Sale price£2,066.00
Learn more
Product specification
Compare model specifications.
| Power Supply | 12 - 24 VDC ±10%; 5 W | 12 - 24 VDC ±10%; 5 W | 12 - 24 VDC ±10%; 5 W | 12 - 24 VDC ±10%; 5 W | 12 - 24 VDC ±10%; 5 W | 12 - 24 VDC ±10%; 5 W | 12 - 24 VDC ±10%; 5 W |
|---|---|---|---|---|---|---|---|
| No. Load Cells | Up to 8 (350 R) - 4/6 wires | Up to 8 (350 R) - 4/6 wires | Up to 8 (350 R) - 4/6 wires | Up to 8 (350 R) - 4/6 wires | Up to 8 (350 R) - 4/6 wires | Up to 8 (350 R) - 4/6 wires | Up to 8 (350 R) - 4/6 wires |
| A/D Converter | 24 bit (16000000 points) - 4.8 kHz | 24 bit (16000000 points) - 4.8 kHz | 24 bit (16000000 points) - 4.8 kHz | 24 bit (16000000 points) - 4.8 kHz | 24 bit (16000000 points) - 4.8 kHz | 24 bit (16000000 points) - 4.8 kHz | 24 bit (16000000 points) - 4.8 kHz |
| Measurement Range | ±39 mV | ±39 mV | ±39 mV | ±39 mV | ±39 mV | ±39 mV | ±39 mV |
| Load Cell Sensitivity | ±7 mV | ±7 mV | ±7 mV | ±7 mV | ±7 mV | ±7 mV | ±7 mV |
| Serial Coms | RS232, RS485 | RS232, RS485 | RS232, RS485 | RS232, RS485 | RS232, RS485 | RS232, RS485 | RS232, RS485 |
| Relay Outputs | 5/4 - max 115 VAC/150 mA | 5/4 - max 115 VAC/150 mA | 5/4 - max 115 VAC/150 mA | 5/4 - max 115 VAC/150 mA | 5/4 - max 115 VAC/150 mA | 5/4 - max 115 VAC/150 mA | 5/4 - max 115 VAC/150 mA |
| Digital Inputs | 3/2 - 5÷24 VDC PNP | 3/2 - 5÷24 VDC PNP | 3/2 - 5÷24 VDC PNP | 3/2 - 5÷24 VDC PNP | 3/2 - 5÷24 VDC PNP | 3/2 - 5÷24 VDC PNP | 3/2 - 5÷24 VDC PNP |
| Program | Base | Load | Unload | 3 Products | 6 Products | 14 Products | Multiprogram |
Learn more
Applications
Hazardous Area Weighing
ATEX Process Facilities
Chemical Processing
Hazardous Process Control
Features
ATEX Weighing Control
Hazardous Area Communications
Explosion Protected Enclosure
ATEX Application Ready
FAQs
What applications is the ADPE W200 designed for?
Why is an ATEX indicator required in hazardous areas?
Can the ADPE W200 be used in explosive atmospheres?
What makes the ADPE W200 suitable for hazardous areas?
The ADPE W200 provides protected operation for weighing applications within hazardous environments.
