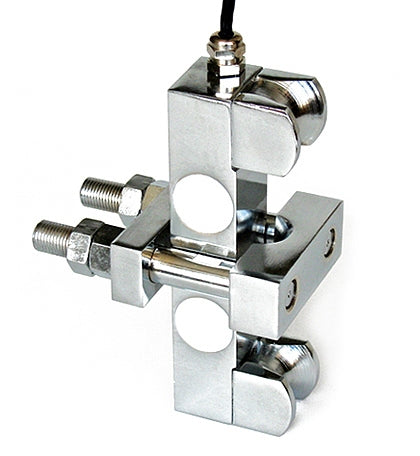

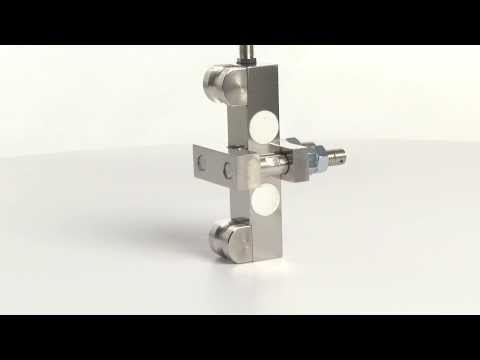

Laumas FUN Wire Tension Load Cell

Laumas FUN Wire Tension Load Cell Overview

The Laumas FUN Wire Tension Load Cell is a specialist wire rope monitoring sensor designed for measuring cable tension in cranes, hoists and lifting equipment. Its clamp-on design allows accurate tension measurement without requiring major modifications to the lifting system.

Manufactured from nickel-plated steel and protected to IP67 standards, the FUN is suitable for demanding industrial environments where load monitoring and overload protection are critical. It can be combined with compatible transmitters and indicators to create effective rope tension monitoring and load limiting systems.

Model: FUN6141T1T - 2000 Kg

Calibration Certificate: No

Quantity:

£297.00

View Technical Data Sheet (PDF)

Laumas Laumas FUN Wire Tension Load Cell

£297.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

2,000 kg, 4,000 kg, 10,000 kg, 20,000 kg, 40,000 kg

Accuracy

±2% full scale

Material

AISI 4140 nickel-plated steel

Cable Length

6 m

Output Signal

3 mV/V ±0.1%

IP Rating

IP67

Approvals

CE, UKCA, ATEX, IECEx, EAC, EAC Ex, Ex NEPSI

Learn more

Applications

Wire Rope Tension Monitoring

Monitors wire rope tension in cranes, hoists and lifting systems to improve safety and load control.

Crane Load Monitoring

Monitors crane loads in real time to improve operational safety and support safe lifting practices.

Hoist Systems

Designed for hoist systems requiring accurate wire tension monitoring and operational load supervision.

Load Limiting Systems

Suitable for load limiting systems used to improve safety and prevent overload conditions in lifting applications.

Features

Wire Rope Monitoring

Provides accurate wire rope tension measurement for cranes, lifting systems and load monitoring applications.

Non-Invasive Installation

Clamp-on installation allows wire tension measurement without cutting, removing or modifying the wire rope.

Industrial Safety Applications

Suitable for safety monitoring, load supervision and wire rope tension measurement applications.

Reliable Long-Term Performance

Built for continuous operation in demanding industrial and outdoor environments.

FAQs

What is the FUN wire tension load cell used for?

The FUN load cell is used to measure wire rope tension in cranes, hoists, lifting equipment and industrial load monitoring systems.

Can the FUN load cell be installed without removing the wire rope?

Yes, the FUN features a clamp-on design that allows installation without cutting or removing the wire rope.

What industries commonly use the FUN load cell?

The FUN is commonly used in lifting equipment, crane systems, material handling operations and industrial safety applications.

Can the FUN load cell help improve lifting safety?

Yes, by providing accurate wire tension measurement, the FUN can help operators identify overload conditions and improve lifting safety.
