Laumas PV80CLS Load Cell Mounting Kit

Laumas PV80CLS Load Cell Mounting Kit

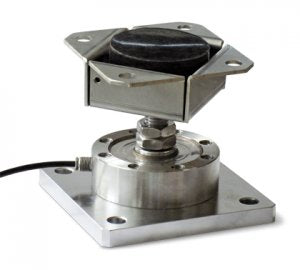

The Laumas PV80CLS is a load cell mounting kit for industrial compression weighing installations using the Laumas CLS 5000 kg load cell. It provides a practical mechanical interface between the weighed structure and the load cell, helping installers manage alignment, stability and lateral restraint in applications such as rollers, platforms, tanks and hoppers.

This mounting kit has an application range up to 5000 kg and is supplied with an adjustable upper plate in AISI 304 stainless steel. The arrangement incorporates a stainless steel self-centring joint foot, giving restraint against lateral forces and anti-tilt movement while helping compensate for misalignment between the support plates of the structure.

Engineering Use

Correct load introduction is essential for reliable compression weighing. A mounting kit such as the PV80CLS helps reduce installation uncertainty by providing a defined support arrangement for the load cell rather than relying on an improvised mechanical interface. The adjustable height is particularly relevant during commissioning, where small structural variations can affect load distribution and repeatability.

The PV80CLS is relevant for OEM machinery builders, weighing system integrators, maintenance teams and process engineers specifying or replacing mounting hardware around CLS compression load cells. It should be selected where the system design, load cell capacity and mechanical layout match the PV80CLS configuration.

Key Selection Points

• Product type: mounting kit for compression load cells.
• Compatible load cell: Laumas CLS 5000 kg.
• Application range: up to 5000 kg.
• Installation function: height adjustment, lateral force restraint, anti-tilt support and misalignment compensation.
• Typical structures: rollers, platforms, tanks and hoppers.

Before specifying the PV80CLS, confirm the load cell model, rated capacity, number of support points and the mechanical arrangement of the weighing structure. Where structural certification or project documentation is required, verify whether the standard PV80CLS or a certified variant is appropriate for the installation.
