Laumas PV80CLSEN1090 Load Cell Mounting Kit

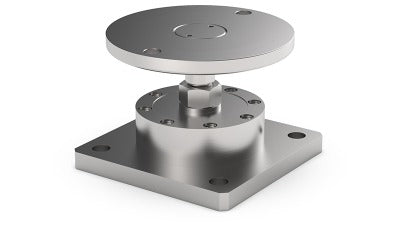

The Laumas PV80CLSEN1090 is a mounting kit for industrial weighing systems using the Laumas CLS 5000 compression load cell. It provides a controlled mechanical interface between the load cell and the supporting structure, helping the weighing assembly manage load introduction, alignment and restraint at the mounting point.

This kit is specified with a maximum static load of 5,000 kg and is certified according to EN 1090. It is intended for applications such as rollers, platforms, tanks and hoppers where a compact compression load cell mounting arrangement is required. Selection should always be based on the complete weighing structure, number of supports, load distribution, live load behaviour and the confirmed load cell model.

Engineering Function

The PV80CLSEN1090 uses an AISI 304 stainless steel self-centring joint foot to provide restraint against lateral forces and anti-tilt movement. This helps protect the load cell from unfavourable mechanical loading and supports more repeatable weighing performance when the installation is correctly designed and installed.

Height adjustability assists during commissioning, particularly where support plates need fine setting on fabricated frames, vessels or machine bases. The kit is also specified to compensate for misalignment of the structure support plates, reducing the need for improvised packing or non-standard mechanical corrections on site.

Key Verified Details

• Manufacturer: Laumas
• Product code: PV80CLSEN1090
• Load cell compatibility: CLS 5000 compression load cell
• Maximum static load: 5,000 kg
• Material: AISI 304 stainless steel
• Certification: EN 1090
• Function: self-centring joint foot with lateral force and anti-tilt restraint
• Adjustment: adjustable height
• Net weight: 1.5 kg

Before specifying this mounting kit, confirm the required capacity per support point, the mating CLS load cell size and the mechanical details of the structure. For replacement work, match the full part number rather than relying on visual similarity, as related Laumas mounting kits cover different load cell models and load ranges.
