Laumas PVCLS Load Cell Mounting Kit

The Laumas PVCLS is a mounting kit for CLS compression load cells from 1000 to 2000 kg. It is intended for industrial weighing assemblies where the mechanical interface between the structure and load cell needs controlled alignment, height adjustment and resistance to unwanted lateral movement.

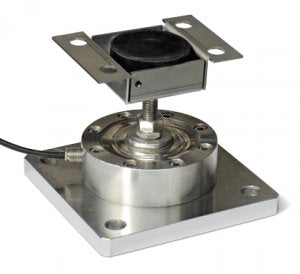

The kit is supplied with an adjustable upper plate in AISI 304 stainless steel and a stainless steel self-centring joint foot. This arrangement helps provide constraint against lateral forces and anti-tilt movement while allowing the load cell to work in compression. Correct mechanical mounting is important in tank, hopper, platform and roller weighing systems because poor alignment can affect repeatability, load transfer and long-term system performance.

PVCLS supports compensation for misalignment between the support plates of the structure. During installation, the adjustable height feature gives engineers a practical method of setting the load introduction point and levelling the assembly where fabrication tolerances or site conditions need to be considered.

Key Technical Points

• Product type: load cell mounting kit for compression weighing applications.
• Compatible load cells: Laumas CLS 1000 to 2000 kg compression load cells.
• Application range: up to 2,000 kg.
• Materials: AISI 304 stainless steel adjustable upper plate with stainless steel self-centring joint foot.
• Installation function: height adjustment and compensation for support plate misalignment.
• Typical uses: rollers, platforms, tanks and hoppers.

This mounting kit should be selected as part of a complete weighing system, taking into account the load cell capacity, number of support points, mechanical structure, load direction and site conditions. For replacement work, confirm the existing load cell model and mounting arrangement before ordering, as PVCLS is specifically associated with CLS compression load cells in the stated capacity range.
