Laumas PVEN1090 Load Cell Mounting Kit

Laumas PVEN1090 Load Cell Mounting Kit

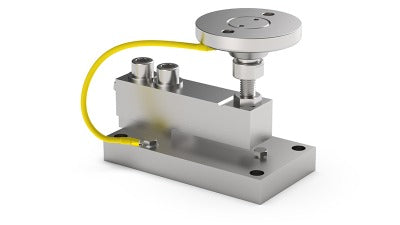

The Laumas PVEN1090 is a stainless steel load cell mounting kit for industrial weighing systems using compatible Laumas shear and bending beam load cells. It is intended for FTKL, FTP/-P, FTK and FTZ load cells, with an application range up to 2,000 kg.

Correct load cell mounting is critical to weighing performance. The PVEN1090 provides a controlled mechanical interface between the weighing structure and the load cell, helping to manage alignment, lateral loading and anti-tilt behaviour during operation. This is particularly relevant on tanks, hoppers, platforms and roller assemblies where structural movement or uneven mounting surfaces can affect measurement reliability.

Engineering Specification

• Product type: load cell mounting kit
• Manufacturer: Laumas
• Model: PVEN1090
• Load cell types: shear and bending beam load cells
• Compatible Laumas series: FTKL, FTP/-P, FTK and FTZ
• Application range: up to 2,000 kg
• Material: AISI 304 stainless steel
• Certification: EN 1090
• Net weight: 2.7 kg

The kit uses a self-centring joint foot to help constrain lateral forces and provide anti-tilt restraint. Height adjustment supports commissioning and replacement work, while compensation for misalignment of the support plates helps reduce installation stress on the load cell.

Selection Notes

Before ordering, confirm the load cell model, system capacity, number of supports and mechanical layout of the weighing structure. Compatibility should be checked against the exact Laumas load cell series in use, as mounting hole patterns, loading direction and structural clearances are application-dependent.

For OEM builds, maintenance replacements and weighing system integration projects, the PVEN1090 offers a documented Laumas mounting arrangement where stainless steel construction, EN 1090 compliance and controlled load introduction are required.
