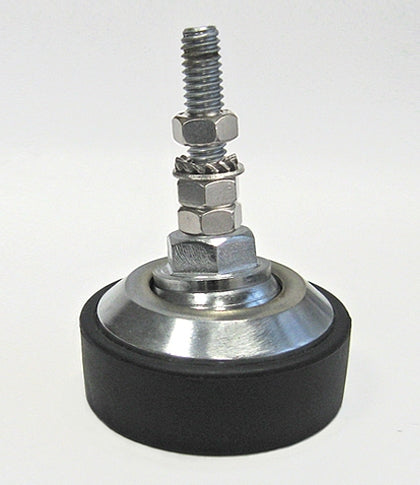

The Laumas SB2 - PXC load cell mounting kit is a range of self-centring joint feet for industrial weighing installations using compatible Laumas load cells. It provides a stable mechanical interface between the weighing structure and the load cell, helping the applied load enter the sensor correctly during operation.
Laumas identifies the SB2 - PXC range for use with FCAL/X, FCOL, FTK/L, FTP/-P, FTZ and FLC load cells. The range is associated with bending beam, shear beam and compression load cells for foot applications, with an application range up to 5,000 kg. Selection should always be made against the exact load cell model, system load, thread size and site environment.
Available Variants
GNW supplies the SB2 - PXC range in multiple model options, including stainless steel and galvanised steel versions. Available variants cover thread sizes from M8 to M20, with listed static load ratings including 500 kg, 2,000 kg and 5,000 kg depending on the selected model. The product range also includes different dimensional formats, so the chosen foot should be checked against the existing mechanical layout before ordering.
- Product type: self-centring joint foot mounting kit for load cells
- Load cell types: bending beam, shear beam and foot-type compression load cells where compatible
- Materials: stainless steel or galvanised steel, depending on model
- Thread range: M8 to M20 across available variants
- Supplied with: nuts and washers for installation
Engineering Use
Correct mounting is essential for repeatable weighing performance. A self-centring foot helps accommodate small alignment variations at the support point while maintaining controlled load introduction into the load cell. This is particularly relevant in tanks, hoppers, platforms and machinery weighing systems where uneven support, structural movement or incorrect installation can affect measurement reliability.
For replacement work, confirm the original Laumas part reference, load cell type, thread, overall height, foot diameter and material before fitting. For new systems, the mounting kit should be considered alongside the load cell capacity, support structure, restraints and environmental exposure.
Learn more
Product specification
Compare model specifications.
| Model | PIEDINOSB2INOX | PIEDINOSB2M10 | PIEDINOSB2M20 | PIEDINOSB2M8 | PIEDINOSB2ZNC | PIEDINOSB2ZNCM20 | PIEDINOPXC | PIEDINOPXCI |
|---|---|---|---|---|---|---|---|---|
| Use With | FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ, FLC | FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ, FLC | FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ, FLC | FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ, FLC | FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ, FLC | FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ, FLC | FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ, FLC | FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ, FLC |
| Max Static Load | 2000 kg | 500 kg | 5000 kg | 500 kg | 2000 kg | 5000 kg | 2000 kg | 2000 kg |
Learn more
Applications
Features
FAQs
Which load cells can be installed using the SB2 - PXC mounting kit?
Why use a dedicated mounting kit with shear beam load cells?
What applications is the SB2 - PXC mounting kit suitable for?
Why use a dedicated mounting kit with shear beam load cells?
A dedicated mounting kit helps maximise load cell performance by ensuring correct installation and force transmission.
