Laumas TFCPV Load Cell Mounting Kit
Laumas TFCPV Load Cell Mounting Kit

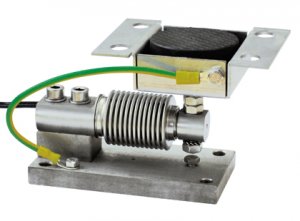

The Laumas TFCPV load cell mounting kit is a mechanical mounting assembly for FCOL and FCK bending beam load cells. It is intended for compact industrial weighing installations where correct load introduction, restraint against lateral movement and practical alignment adjustment are important to system performance.
This mounting kit range is used on small tanks, hoppers, platforms and similar weighing structures. The assembly includes a self-centring joint foot to help oppose lateral forces and anti-tilt effects, reducing the risk of unwanted mechanical loading on the bending beam load cell. It also provides compensation for misalignment between the support plates of the structure, which is a common consideration during fabrication, retrofit work and site installation.
Technical Selection
- Product range: TFCPV, TFCPV10, TFCPVZ and TFCPVZ10.
- Load cell type: for Laumas FCOL and FCK bending beam load cells.
- Application range: up to 300 kg across the range.
- Variant ratings: TFCPV and TFCPVZ up to 200 kg; TFCPV10 and TFCPVZ10 up to 300 kg.
- Construction options: AISI 304 stainless steel or galvanised steel, depending on selected variant.
- Kit weight: 1.7 kg.
For new weighing system builds, the TFCPV kit gives engineers a defined mechanical interface between the load cell and the supporting structure. For maintenance and replacement work, it provides a practical option where the existing installation uses the same Laumas mounting kit family and compatible bending beam load cells.
Installation Context
Correct mechanical installation remains essential. The structure should be sufficiently rigid, support surfaces should be prepared carefully, and the selected mounting kit must match the load cell type, capacity and site loading conditions. Where multiple load cells are used, consistent alignment and levelling across all support points will help maintain repeatable weighing performance and reduce avoidable load cell stress.
The TFCPV range is a considered choice for OEMs, system integrators and maintenance teams specifying components for low-capacity industrial weighing systems using Laumas FCOL or FCK bending beam load cells.
Learn more
Product specification
Compare model specifications.
| Model | TFCPV | TFCPV10 | TFCPVZ | TFCPVZ10 |
|---|---|---|---|---|
| Use With | FCK, FCOL | FCK, FCOL | FCK, FCOL | FCK, FCOL |
| Max Static Load | 200 kg | 300 kg | 200 kg | 300 kg |
Learn more
Applications
Features
FAQs
Which load cells is the TFCPV mounting kit intended for?
How does the TFCPV mounting kit support reliable vessel weighing?
What weighing systems commonly use the TFCPV mounting kit?
Why is controlled load introduction important in vessel weighing applications?
Controlled load introduction helps ensure the load cell measures only the intended weighing force, improving accuracy and long-term reliability.
