Laumas V10000 - V10275 Load Cell Mounting Kit
Laumas V10000 - V10275 Load Cell Mounting Kit

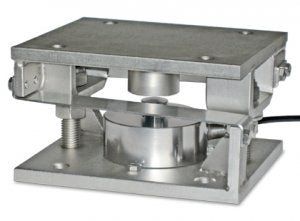

The Laumas V10000 - V10275 load cell mounting kit is an AISI-304 stainless steel mounting assembly for compression load cell weighing applications. It is specified for use with Laumas CBL, CBX and CX compression load cells within the verified compatibility and application range.
This mounting kit provides the mechanical interface between the load cell and the weighed structure, helping to support controlled load introduction in industrial weighing systems. Correct mounting is important for maintaining load cell alignment, reducing unwanted side loading and supporting repeatable measurement performance over time.
- Compatible load cells: Laumas CBL 250-12,500 kg, CBX 15,000 kg and CX 1,000-15,000 kg compression load cells.
- Application range: up to 15,000 kg.
- Material: AISI-304 stainless steel mounting kit construction.
- Mechanical restraint: laminas against lateral forces and an anti-tilt constraint using two threaded rods with self-locking nuts.
The V10000 and V10275 range is used in weighing installations for silos, tanks, mixing machines and hoppers, particularly where the structure may be subject to vibration caused by moving process equipment. The lateral restraint and anti-tilt arrangement provide useful mechanical control in these installations, while still requiring correct design of the support structure, load path and associated weighing electronics.
For OEMs, system integrators and maintenance teams, this kit is relevant when specifying a new compression load cell assembly or replacing an existing Laumas mounting arrangement. Before ordering, confirm the load cell model, capacity, vessel support layout and whether the existing installation uses the V10000 or V10275 version. Where compatibility is uncertain, check the full weighing assembly rather than selecting the mounting kit by capacity alone.
GNW Instrumentation supplies the Laumas V10000 - V10275 mounting kit for industrial weighing projects requiring robust load cell installation hardware for process vessels, hoppers and machinery-based weighing systems.
Learn more
Product specification
Compare model specifications.
| Model | V10000 | V10275 |
|---|---|---|
| Use With | CBL, CBX, CX | CBL, CBX, CX |
| Max Static Load | 15000 kg | 15000 kg |
Learn more
Applications
Features
FAQs
Which load cells are compatible with the V10000 - V10275 mounting kit?
How does the V10000 - V10275 mounting kit improve weighbridge performance?
What weighing systems commonly use the V10000 - V10275 mounting kit?
Why is anti-lift protection important in weighbridge applications?
Anti-lift protection helps prevent unwanted movement of the weighbridge structure and protects the load cell assembly.
