Laumas V10000EN1090 - V10275EN1090 Load Cell Mounting Kit

Laumas V10000EN1090 - V10275EN1090 Load Cell Mounting Kit

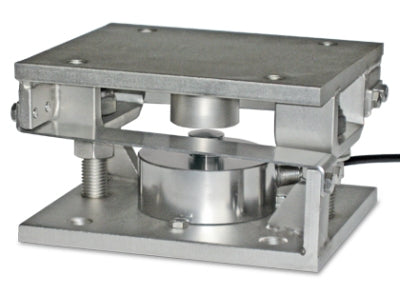

The Laumas V10000EN1090 and V10275EN1090 are AISI-304 stainless steel mounting kits for compression load cell installations using compatible Laumas CBL and CBX load cells. They are intended for industrial weighing systems where the mechanical interface between the load cell and structure must control movement, support repeatable loading and contribute to installation safety.

Laumas specifies these EN 1090 certified mounting kits for structural components used in plants and machinery. This makes the range relevant for engineers and system integrators working on weighing installations where component traceability and compliance are part of the project specification.

The kit incorporates laminas to resist lateral forces and an anti-tilt constraint formed from two threaded rods with self-locking nuts. In practical terms, this helps manage the effects of vibration, vessel movement and process disturbance that may occur on silos, tanks, mixers and hoppers. Correct mounting is important because side loads, misalignment and uncontrolled movement can affect load cell performance and long-term system reliability.

The stated application range is up to 15,000 kg. Laumas lists the V10000EN1090 and V10275EN1090 for CBL 250–12500 kg and CBX 15000 kg compression load cells, so compatibility should be checked against the exact load cell model, capacity and mechanical arrangement before purchase.

Technical Buying Context

• Product type: EN1090 load cell mounting kit for compression load cells.
• Material: AISI-304 stainless steel.
• Load cell compatibility: Laumas CBL 250–12500 kg and CBX 15000 kg models as stated by Laumas.
• Application range: up to 15,000 kg.
• Typical installations: silos, tanks, mixing machines and hoppers subject to vibration from moving parts.

For replacement work, OEM builds or new process weighing projects, check the existing load cell reference, vessel support arrangement and required kit variant before ordering. Where uncertainty exists, confirm the installation details with GNW Instrumentation before specifying the mounting kit.
