Laumas WINOX-2G Weight Indicator

Laumas WINOX-2G Weight Indicator Overview

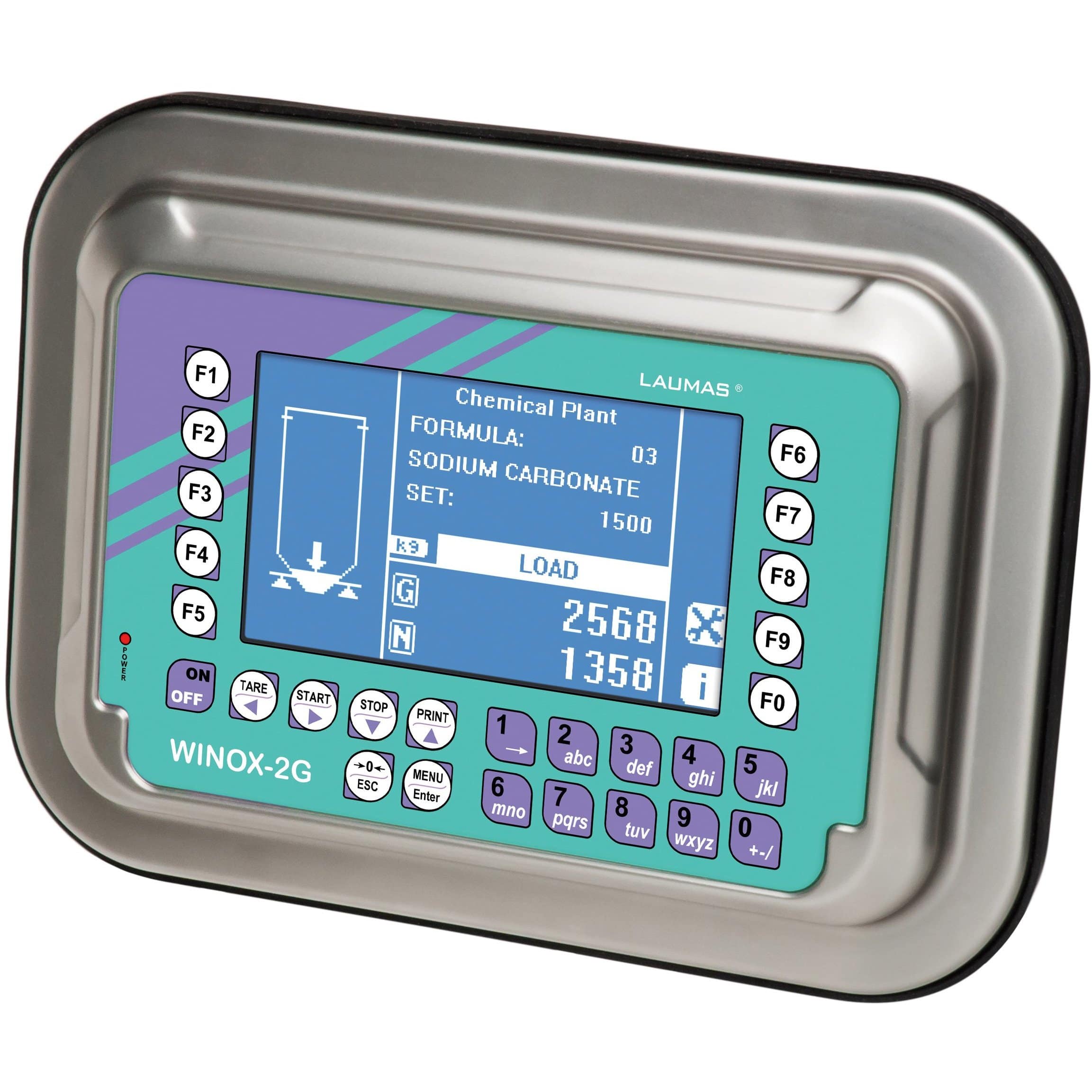

The Laumas WINOX-2G is a stainless steel graphic weight indicator designed for advanced industrial weighing and batching applications. Its graphic display supports improved readability of weighing data, formulas and process information.

With RS232 and RS485 communications, relay outputs, setpoint control and industrial protocol options, the WINOX-2G is suitable for production control, batching systems, process weighing and installations requiring a durable stainless steel indicator.

Model: WINOX2G-B

Model
Sale price£648.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Power Supply 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W 12÷24 VDC ±10%; 6 W
No. Load Cells Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires
A/D Converter 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz
Measurement Range ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV
Load Cell Sensitivity ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V ±7 mV/V
Serial Coms RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485
Relay Outputs 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA
Digital Inputs 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP

Learn more

Applications

Advanced Process Weighing

Suitable for advanced process weighing applications requiring detailed operator information and control.

Recipe Controlled Production

Supports recipe controlled production environments where multiple products are processed.

Batch Manufacturing

Suitable for batch manufacturing operations requiring recipe and formula control.

Production Data Management

Supports production data management through communications and process integration.

Features

Advanced Graphic Weighing

Graphic display technology improves operator visibility of weighing, batching and process information.

Enhanced Data Visibility

Graphic display allows operators to access more detailed weighing and process information.

Process Weighing Functions

Supports weighing, batching and production monitoring functions from a single indicator.

Industrial Data Management

Supports management and visibility of weighing information across industrial operations.
