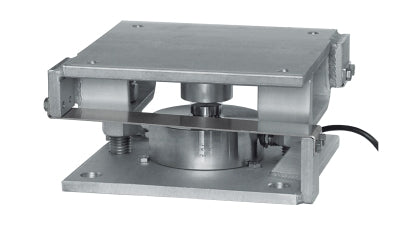

Laumas Z15000 - Z30000 - Z100000 Load Cell Mounting Kit
Laumas Z15000, Z30000 and Z100000 mounting kits
The Laumas Z Series provides a controlled mounting arrangement for compatible CBL, CBX and CX compression load cells on high-capacity weighing structures. The kits help locate the sensor correctly and manage unwanted lateral forces while allowing the load to pass through the intended measurement point.
Three versions cover different structural loads. Z15000 is listed with a maximum static load of 30,000 kg, Z30000 with 50,000 kg and Z100000 with 100,000 kg. Compatibility differs between the variants, so the selected kit must be checked against the exact load-cell model and capacity.
Typical installations include tanks, silos, hoppers and other heavy process vessels. Selection should take account of the number of supports, expected load distribution, pipework forces, thermal movement and the fixing details of the supporting structure.
Learn more
Product specification
Compare model specifications.
| Model | Z15000 | Z30000 | Z100000 |
|---|---|---|---|
| Use With | CBL, CBX, CX | CBL, CBX | CBL, CBX |
| Max Static Load | 30000 kg | 50000 kg | 100000 kg |
Learn more
Applications
Features
FAQs
These mounting kits are designed for compatible compression load cells used in industrial weighing applications.
They are commonly used for tanks, silos, hoppers and industrial process weighing systems.
A correctly installed mounting kit helps ensure stable load transfer and repeatable weighing performance.
Yes, they are commonly used on tanks, silos, hoppers and process vessels.
