Sauter AHMO Leeb hardness test block for hardness tester checks

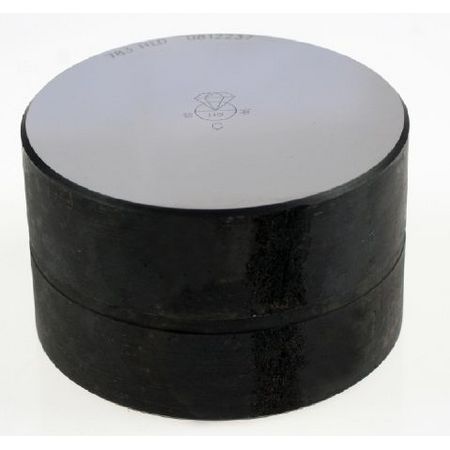

Sauter AHMO Hardness Test Blocks

Sauter AHMO steel comparison blocks support routine checks of compatible Leeb hardness testers. Choose AHMO D02 for 790 ±40 HL, AHMO D03 for 630 ±40 HL or AHMO D04 for 530 ±40 HL.

Each block is 90 mm in diameter and is available with an optional calibration certificate. Select the hardness level closest to the materials normally tested.

Model: AHMO D02

Calibration Certificate: No

The calibration certificate is issued by KERN & Sohn for your Sauter test block. What’s included?

Quantity:

£182.04

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

View Technical Data Sheet (PDF)

Sauter Sauter AHMO Hardness Test Blocks

£182.04

Learn more

Product specification

Compare model specifications.

Model	AHMO D02	AHMO D03	AHMO D04
Hardness Range	790 ± 40 HL	630 ± 40 HL	530 ± 40 HL
Accuracy	± 4 HL	± 4 HL	± 4 HL
Dimensions	Ø90 × 52 mm	Ø90 × 52 mm	Ø90 × 52 mm
Net Weight	2.6 kg	2.8 kg	2.8 kg
Calibration Certificate Option	Optional — select Yes when ordering	Optional — select Yes when ordering	Optional — select Yes when ordering

Optional Calibration & Certification

Add an optional calibration certificate to document your instrument’s performance before use and support your quality records. Find out below what testing is included and what your certificate provides.

Who issues the certificate?	The calibration certificate is issued by KERN & Sohn for your Sauter test block.
What testing is included?	Following an initial check of the block, ten measurements are taken using a calibrated Leeb hardness tester with a Type D impact device. The ambient temperature is recorded during calibration.
What does the certificate report?	The certificate identifies the block and calibration equipment and records the individual HLD readings, mean, minimum and maximum values, and percentage deviation from the block's stated hardness value.

Learn more

Applications

Routine Leeb tester checks

Check the response of compatible Leeb hardness testers between scheduled calibrations.

Quality control

Support repeatable hardness checks in workshops, laboratories and production environments.

Instrument monitoring

Use an appropriate hardness level to identify unexpected changes in instrument response.

Service and maintenance

Check tester performance before and after servicing, adjustment or transport.

Features

Three hardness levels

Choose AHMO D02 at 790 ±40 HL, AHMO D03 at 630 ±40 HL or AHMO D04 at 530 ±40 HL.

For Leeb testing

Designed for routine comparison checks with compatible Leeb hardness testers using D or DC impact devices.

Steel construction

Each steel test block provides a durable reference surface for regular hardness tester checks.

Certificate option

Order the selected hardness block with or without a calibration certificate to suit your quality requirements.

FAQs

Which hardness level should I choose?

Choose the block closest to the materials normally tested: AHMO D02 at 790 ±40 HL, AHMO D03 at 630 ±40 HL or AHMO D04 at 530 ±40 HL.

Which impact devices are compatible?

The AHMO blocks are intended for compatible Leeb hardness testers using D or DC impact devices.

What size are the AHMO blocks?

Each block is approximately 90 mm in diameter. Weight varies by model, so consult the selected model specification where this is important.

Do these blocks replace calibration?

No. They support routine comparison checks between calibrations and do not replace scheduled calibration of the hardness tester.
