Sauter HB Analogue Shore Hardness Tester
11200
Sauter HB Analogue Shore Hardness Tester
11200

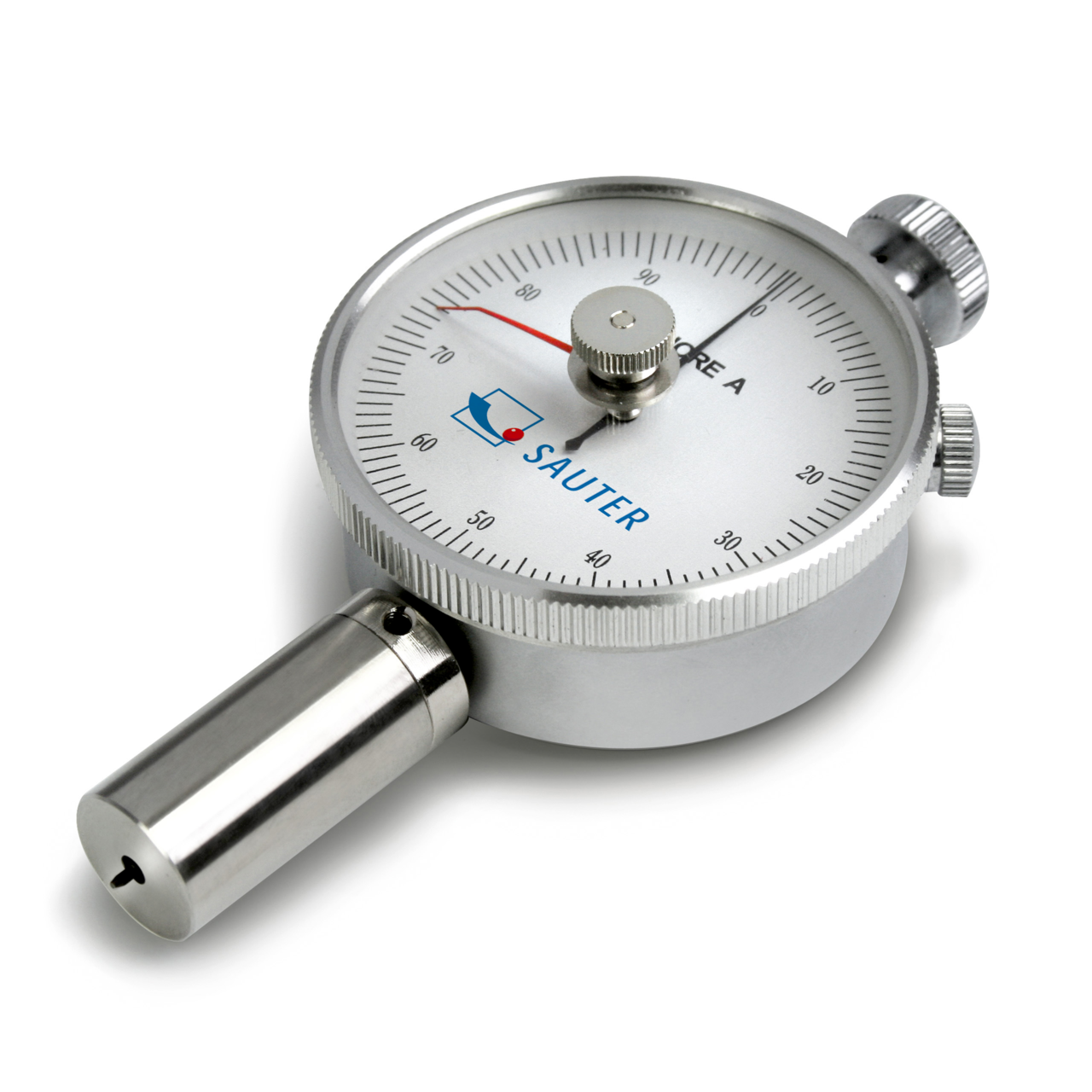

Compact Analogue Shore Hardness Testers for Foam, Plastics and Rubbers
The Sauter HB range provides reliable handheld Shore durometers designed for quick and precise hardness testing of non-metallic materials. Ideal for internal quality checks, each tester includes a drag pointer to capture peak readings and comes in a protective carry case for portability.
Each model is calibrated to one of three Shore scales—A, D, or A0—making them suitable for applications across foam, plastics, elastomers, and rubber. With a lightweight design and clear analogue dial, the Sauter HB range is trusted for spot checks and in-house comparison measurements.
Key Features
- Drag Indicator: Captures the peak value on the scale for accurate hardness readings.
- Analogue Display: Clear, graduated dial with 1-unit resolution.

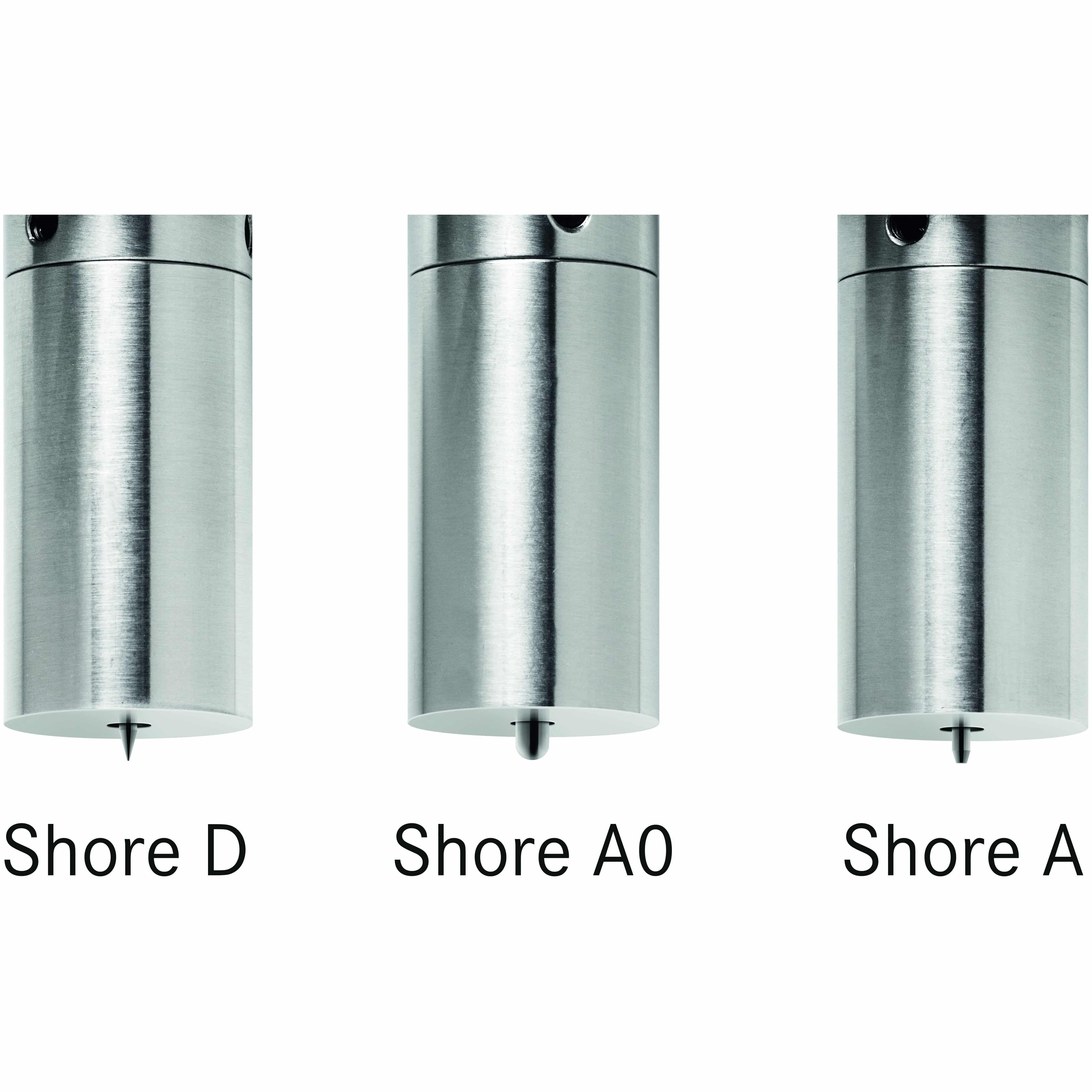

- Material-Specific Scales: Models available for Shore A, D, and A0 testing applications.
- Durable Construction: Lightweight and compact housing ideal for field use.
- Mountable: Compatible with Sauter test stands for improved consistency.

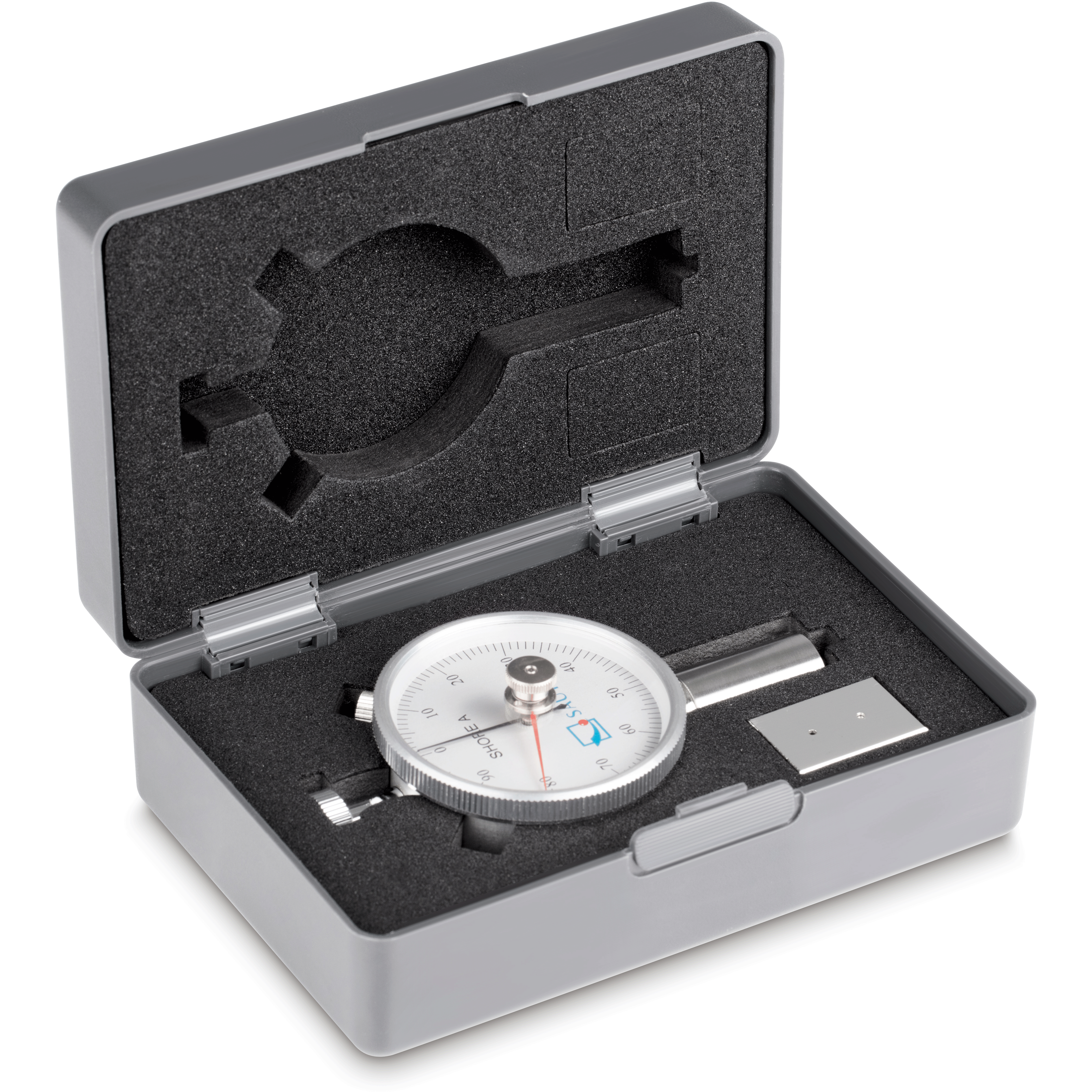

- Protective Case: Supplied in a sturdy plastic box for safe transport and storage.
Model Comparison
| Model | Shore Scale | Measuring Range | Readability | Dimensions (mm) |
|---|---|---|---|---|
| HBA 100-0 | Shore A | 0–100 HA | 1 HA | 115 × 60 × 25 |
| HB0 100-0 | Shore A0 | 0–100 HA0 | 1 HA0 | 115 × 60 × 25 |
| HBD 100-0 | Shore D | 0–100 HD | 1 HD | 115 × 60 × 25 |
Key Notes
- Sample Requirements: Minimum material thickness of 6 mm required for accurate readings.
- Stand Compatibility: Can be mounted to Sauter TI-AC or TI-D test stands for repeatable testing.
- Calibration: Not suitable for DIN 48-4 standard calibration due to tight tolerance limitations. For internal comparison only.
- Accessories: Shore comparison plates available for regular verification (sold separately).
- Fixed Probe: Measuring tips are non-interchangeable.
